User Manual for Comprehensive CAT6a Shielded Patch Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive CAT6a Shielded Patch Cable
- Product category: Ethernet Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Ethernet Cables
|
User manual for the Comprehensive CAT6a Shielded Patch Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|

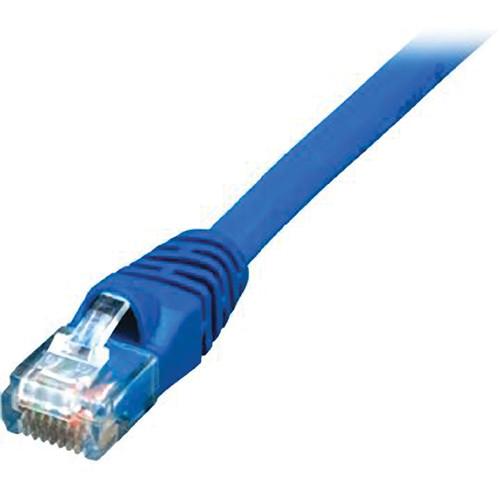

Product description The blue Comprehensive CAT6a Shielded Patch Cable enables 10-Gigabit data transmission over a 4-conductor 24 AWG shielded twisted-pair copper cable, allowing connection distances of up to 328.08’ (100 m). This 50' cable has been designed to meet Cat6a requirements that comprise of an electrical specification and an alien crosstalk of 500 MHz. Furthermore, Comprehensive has outfitted this cable with snagless boots and 50µ gold-plated contacts. - Supports IEEE 802.3af and is DTE power compliant
- Provides NEXT performance beyond 600 MHz
- Low-profile snagless hood is ideal for high-density switch applications
- Compliant to Industry Standards: Official TIA/EIA568-B.2-10 and ISO/IEC 11801-compliant
- Meets all Alien Crosstalk reduction specifications not affected by wire in adjacent cable 10 Gigabit/s transmission to 328.08' (100 m)
- Performance tested to exceed 500 MHz
- CAT6a Copper Patch Cable features molded connectors with snagless guards and gold-plated connector contacts that deliver maximum conductivity for high-speed data transmissions
- Backward compatible with CAT5e and CAT6
- PoE rated to 4 times the standard
UPC: 808447053678 In the Box Comprehensive CAT6a Shielded Patch Cable (50', Blue Finish) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CAT6a Shielded Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CAT6A-50BLU Specs | Connector Type | Type 1 & 2: RJ45 Male | | Performance Grade | Good | | Bandwidth | Supports voice / data /video distribution applications up to 350 MHz | | Standards | Meets all CAT6a TIA / EIA standards, verified to EIA / TIA 568B.2 | | Style | Cable: Shielded CAT6a molded snagless boot | | Conductors | 4 twisted pairs 24 AWG bare copper stranded cable | | Material | Connector: Polycarbonate
Contact: Copper alloy plated with 50 µ gold | | Jacket | PVC | | RoHS Compliant | Yes | | Outer Diameter | 0.26" (6.8 mm) | | Cable Length | 50.0' (15.2 m) | | Weight | 0.5 lb (0.22 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 1.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
