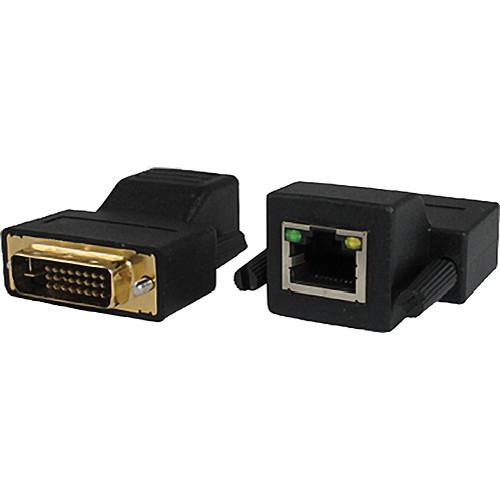

User Manual for Comprehensive CE-DVISM DVI Extender over Single CAT5 Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive CE-DVISM DVI Extender over Single
- Product category: KVM Extenders Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive KVM Extenders
|
User manual for the Comprehensive CE-DVISM DVI Extender over Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The Gefen CE-DVISM DVI Extender over Single CAT5 Cable can extend DVI signals up to 230' (70m) at 1024 x 768 or up to 164' (50m) at 1920 x 1200. It is a passive unit and does not require any external power. Sold as a pair, this extender uses one CAT5/5e/6 cable to transmit the DVI signal. Note: This extender does not support HDCP. - Includes transmitter and receiver, used in pairs via one CAT5e/6 cable to send DVI signals
- Active receiver for high performance
- No external power required
- Supports long distance transmission up to 230' (70m) at 1024 x 768
- Supports high-resolution transmission up to 164' (50m) at 1920 x 1200
UPC: 808447066494 In the Box Comprehensive CE-DVISM DVI Extender over Single CAT5 Cable Transmitter Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CE-DVISM DVI Extender over Single CAT5 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CE-DVISM Specs | DVI Connector Type | 1 x DVI-D 29-pin | | Link Connector | 1 x RJ-45 shielded | | Video Bandwidth | 1.65 Gb/s (DVI 1.1) | | Resolution | Up to 1920 x 1200 @ 60 Hz | | Input TMDS Signal | Video: 1.2 V pp | | Input DDC Signal | 5 V pp (TTL) | | Link | Cable Distance: (65 m) @ 1024 x 768, 164' (50 m) @ 1920 x 1200 | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 1.6 x 2.2 x 0.9" (40.0 x 56.0 x 24.5 mm) | | Weight | 0.20 lb (0.05 kg) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.45 x 2.45 x 2.15" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
