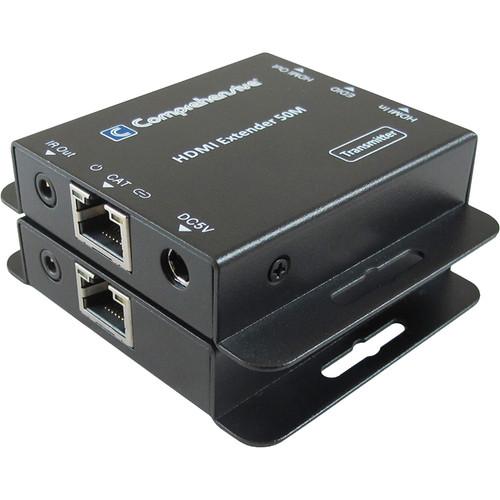

User Manual for Comprehensive CHE-1 1-Port HDMI Extender Over Single Cat 6 Click to enlarge the picture
Contents of the user manual for the Comprehensive CHE-1 1-Port HDMI Extender Over
- Product category: Video Extenders & Repeaters Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Video Extenders & Repeaters
|
User manual for the Comprehensive CHE-1 1-Port HDMI Extender Over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The CHE-1 1-Port HDMI Extender Over Single Cat 6 from Comprehensive is a transmitter/receiver set that allows you to extend an HDMI signal up to 164 ft over a single Cat 6 cable. An AC power supply is included and required to be used for each unit. - Extend full 1080p video signal up to 164 ft / 50 m using Cat 6 Cable
- Follows standard IEEE-568B
- Features auto-adjustment for feedback, equalization and amplify
- Signal rates up to 1.65 Gb/s
UPC: 808447052985 In the Box Comprehensive CHE-1 1-Port HDMI Extender Over Single Cat 6 2 x AC Power Adapter Documentation Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CHE-1 1-Port HDMI Extender Over Single Cat 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CHE-1 Specs | Input/Output | Transmitter:
HDMI Input: 1 x HDMI type A
Ethernet Output: 1 x RJ45 (Cat 5e/6)
Receiver:
Ethernet Input: 1 x RJ45 (Cat 5e/6)
HDMI Output: 1 x HDMI type A | | Resolutions | 1080p, 1080i, 720p, 576p, 576i, 480p, 480i | | Transmission Distance | 1080p 164 ft / 50 m over Cat 6
1080p 132 ft / 40 m over Cat 5e | | Video Amplifier Bandwidth | 4.95 Gb/s | | Vertical Frequency Range | 50/60 Hz | | Color Depth | 24-bit color | | Power Supply | 5 VDC at 1 A | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F / -10 to 80°C | | Storage Humidity | 5 to 90% RH (no condensation) | | Regulatory Approvals | Extender: FCC, CE, UL
Power Supply: FCC, CE, UL | | Weight | 0.85 lb / 385 g | | | | Package Weight | 1.12 lb | | Box Dimensions (LxWxH) | 8.3 x 5.9 x 2.25" |
