User Manual for Comprehensive CHE-HDBT2020 HDBaseT Extender Kit Click to enlarge the picture
Contents of the user manual for the Comprehensive CHE-HDBT2020 HDBaseT Extender Kit
- Product category: Video Extenders & Repeaters Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Video Extenders & Repeaters
|
User manual for the Comprehensive CHE-HDBT2020 HDBaseT Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|

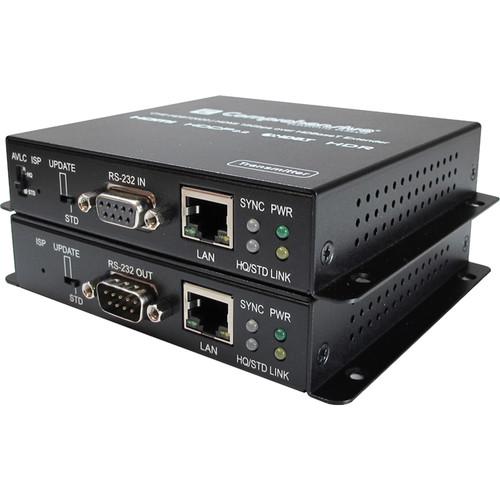

Product description The Comprehensive CHE-HDBT2020 HDBaseT Extender Kit includes an HDMI transmitter and receiver that can extend an HDMI 2.0 signal up to 230' at 4K resolutions and 330' at HD resolutions over widely available Category cable. Both the transmitter and receiver have HDMI, RS-232, IR, and power connectivity. To extend the signal, this kit uses the HDBaseT protocol, muxing the HDMI A/V signal, alongside the IR and RS-232 control signals and power, to fit over a Cat 5e or Cat 6 cable. Since the signals are not modified in any way, there is no quality loss and multi-channel audio as well as HDCP and EDID are maintained. PoE is supported, so this kit only needs to be powered from either the transmitter or receiver end. IR transmitters and receivers are included for maintaining device control over long distances. UPC: 808447080803 In the Box Comprehensive CHE-HDBT2020 HDBaseT Extender Kit 2 x Wideband IR Transmitters 2 x Wideband IR Receivers Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CHE-HDBT2020 HDBaseT Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CHE-HDBT2020 Specs | Transmission Distance | 4K, 60 fps, 4:4:4: Up to 230' / 70 m
HD, 60 fps, 4:4:4: Up to 330' / 100 m | | Video Bandwidth | 18 Gb/s | | Video Resolution | Up to 4096 x 2160, 50/60 fps, YUV (4:4:4) | | HDMI Standard | HDMI 2.0 | | HDCP compliance | HDCP 2.2 | | Color Spaces Supported | RGB, YCbCr 4:4:4/4:2:2 | | Color Depth | 10-bit, 12-bit | | Inputs | Transmitter:
HDMI: 1 x HDMI type A
IR: 1 x 3.5 mm TRS
RS-232: 1 x Phoenix
Receiver:
HDBaseT: 1 x RJ45
IR: 1 x 3.5 mm TRS
RS-232: 1 x Phoenix | | Outputs | Transmitter:
HDBaseT: 1 x RJ45
IR: 1 x 3.5 mm TRS
Receiver:
HDMI: 1 x HDMI type A
IR: 1 x 3.5 mm TRS | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 24 VDC, 1 A | | Power Consumption | 24 W (max) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20-90% (non-condensing) | | Dimensions | 6.2 x 3.5 x 8.0" / 15.7 x 8.9 x 20.3 cm (each unit) | | Weight | 0.7 lb / 333 g | | | | Package Weight | 3.39 lb | | Box Dimensions (LxWxH) | 13.7 x 8.4 x 3.05" |
