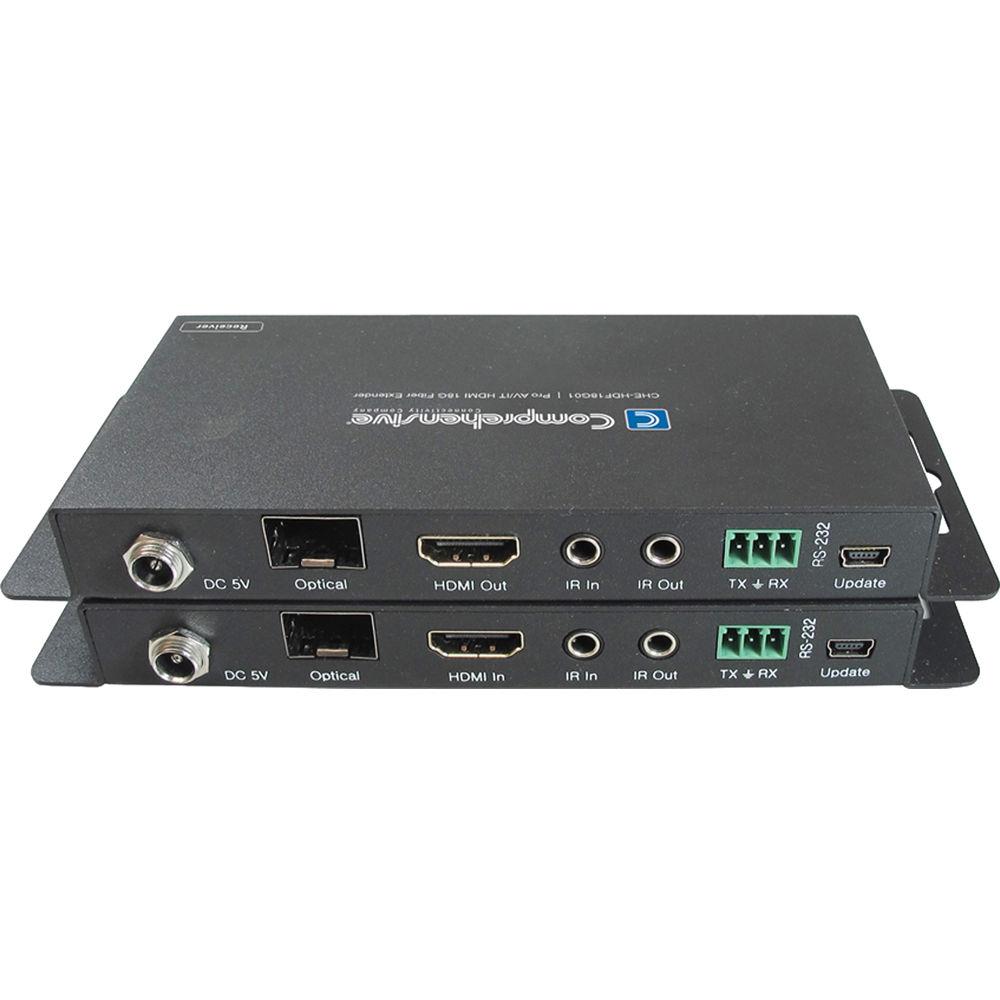

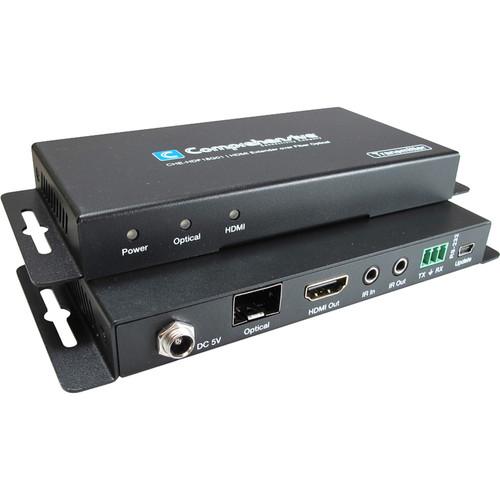

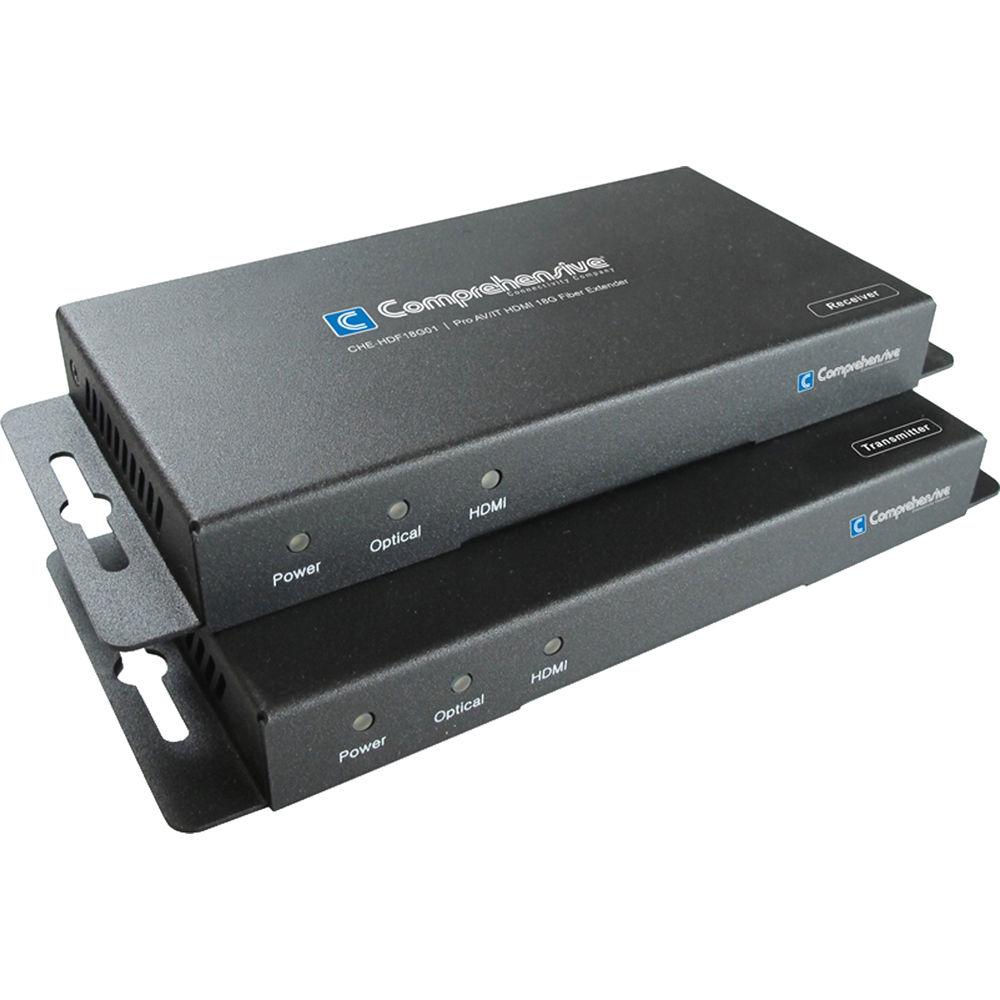

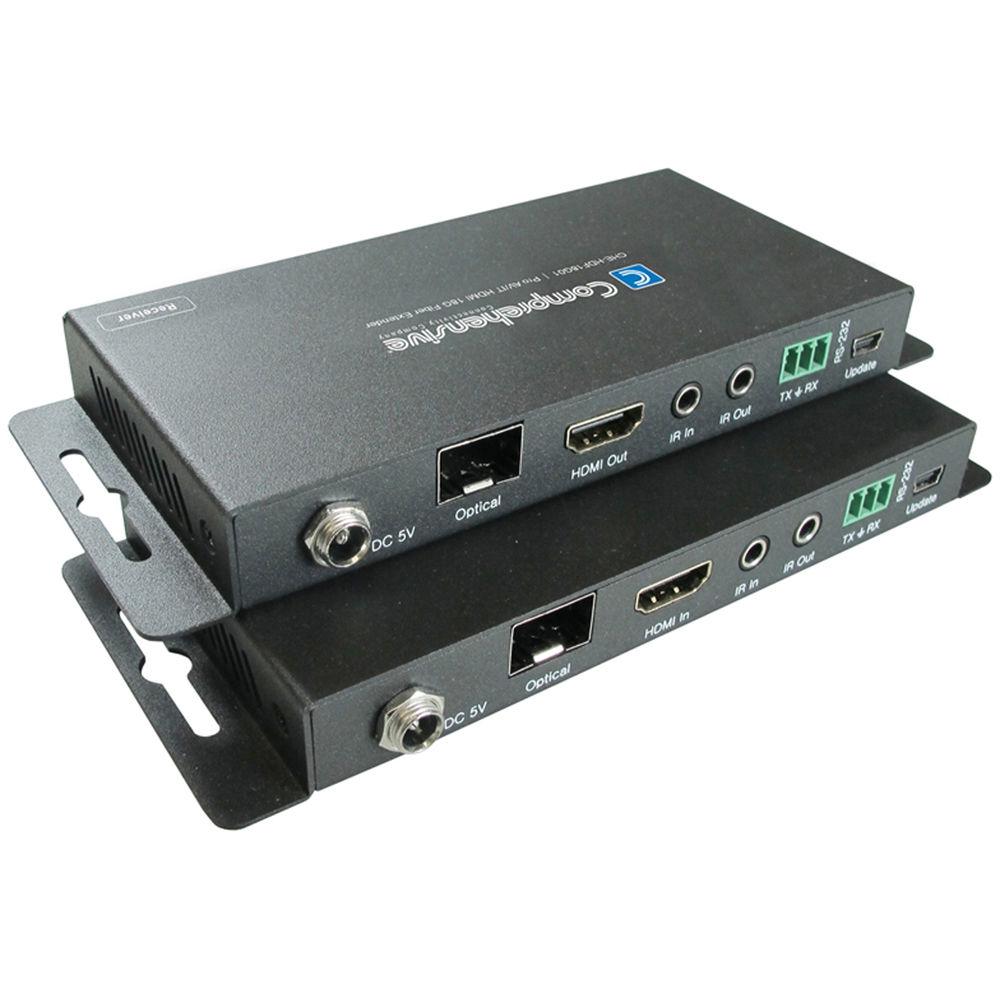

Product description Useful in large venues, or other situations where video has to travel losslessly over long distances, the Comprehensive CHE-HDF18G01 HDMI over Fiber Extender Kit can transmit a 4K, HD, or SD HDMI signal, along with IR and RS-232 control data up to 3300' using Singlemode fiber-optic cable. Multimode cable is also supported, though transmission distances will be limited to 1000'. The 18 Gb/s HDMI 2.0 standard is supported for transmitting 4K content, plus, this kit is HDCP 2.2 compliant, and able to transmit protected content. Multi-channel audio is passed through for surround sound applications. Power supplies for both unites, IR blasters and receivers, phoenix connectors, and SFP fiber transmitter and receiver modules are included. UPC: 808447079425 In the Box Comprehensive CHE-HDF18G01 HDMI over Fiber Extender Kit SFP Optical Transmitter Module SFP Optical Receiver Module 2 x Wideband IR Transmitters 2 x Wideband IR Receivers 2 x Male Phoenix Connectors 2 x Power Supplies Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CHE-HDF18G01 HDMI over Fiber Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CHE-HDF18G01 Specs | Transmission Distance | Singlemode Cable: Up to 3300' / 1000 m
Multimode Cable: Up to 1000' / 300 m | | Video Bandwidth | 18 Gb/s | | Video Resolution | Up to 4096 x 2160, 50/60 fps, YUV (4:4:4) | | HDMI Standard | HDMI 2.0 | | HDCP compliance | HDCP 2.2 | | Color Spaces Supported | RGB, YCbCr 4:4:4/4:2:2 | | Color Depth | 8-/10-/12-bit | | Inputs | Transmitter:
HDMI: 1 x HDMI type A
IR: 1 x 3.5 mm TRS
RS-232: 1 x Phoenix
Receiver:
Fiber: 1 x LC Singlemode
IR: 1 x 3.5 mm TRS | | Outputs | Transmitter:
Fiber: 1 x LC Singlemode
IR: 1 x 3.5 mm TRS
Receiver:
HDMI: 1 x HDMI type A
IR: 1 x 3.5 mm TRS
RS-232: 1 x Phoenix | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 5 VDC, 1 A | | Power Consumption | 3 W (max) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20-90% (non-condensing) | | Dimensions | 4 x 2.5 x 1" / 10.2 x 6.4 x 2.5 cm (each unit) | | Weight | 0.5 lb / 210 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 9.8 x 7.4 x 2.2" |
