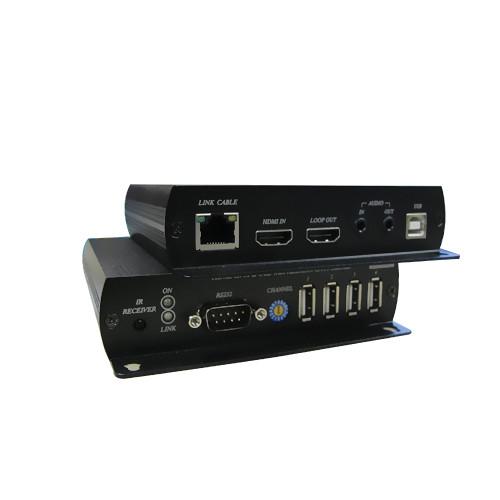

User Manual for Comprehensive CKE-H180IP HDMI KVM Extender over CatX IP Click to enlarge the picture
Contents of the user manual for the Comprehensive CKE-H180IP HDMI KVM Extender over
- Product category: KVM Extenders Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive KVM Extenders
|
User manual for the Comprehensive CKE-H180IP HDMI KVM Extender over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The CKE-H180IP HDMI KVM Extender over CatX IP from Comprehensive provides remote KVM (USB keyboard, USB mouse, and HDMI monitor) access to a USB computer or HDMI source up to 590' over a Gigabit network using a single Cat5e/6 cable. The CKE-H180IP extender consists of a local unit that connects to a computer or HDMI source, and a remote unit that connects to a monitor, mouse, keyboard, speaker, microphone, or other USB devices. The local and remote units can be connected for a point-to-point connection via Cat5e/6 cable. - Extend HDMI, RS-232, IR, and USB signals over one Cat5e or Cat6 cable
- Supports resolutions up to 1080p60 Full HD, and 1920 x 1200 (WUXGA) 32 bpp at 60 Hz
- Transmission range up to 492' over Cat5e, 590' over Cat6
- Supports two-way RS-232 commands at baud rate 115200 (control software on a PC, or other automated control system hardware) to control devices attached to the matrix using RS-232. Full duplex data communication
- Transmitter unit has HDMI loop-through output
- Receiver unit with four ports for USB devices (one port USB 1.1, three ports USB 2.0), to extend USB peripheral devices such as a flash drive, hard disk, keyboard, or mouse
- Supports point-to-point and multiple source devices to multi-display connections via Gigabit network switch
- Built-in bidirectional audio
- Built-in bidirectional IR
- Perfect for control remote machines, security monitoring systems, and digital signage applications
UPC: 808447071467 In the Box Comprehensive CKE-H180IP HDMI KVM Extender over CatX IP (590') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CKE-H180IP HDMI KVM Extender over CatX IP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CKE-H150IP Specs | Resolution | 1920 x 1200p, 32 bpp @ 60 Hz | | Transmission Range | Cat5e: 492' / 150 m
Cat6: 590' / 180 m | | | | Connectors | 2 x HDMI type A
1 x USB type B
1 x 9-pin D-Sub RS-232, female
1 x RJ45, link
2 x 3.5 mm phone jack
1 x IR
1 x 3.5 mm phone jack | | | | Connectors | 1 x HDMI type A
4 x USB type A
1 x 9-pin D-Sub RS-232, female
1 x RJ45, link
2 x 3.5 mm phone jack
1 x IR
1 x 3.5 mm phone jack | | Power Supply | 5 VDC, 2 A | | Power Consumption | 1.3 A | | Operation Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% | | Dimensions | Each Unit: 4.92 x 5.51 x 1.18" / 12.5 x 14.0 x 3.0 cm | | Weight | Each Unit: 0.85 lb / 0.39 kg | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 13.9 x 7.9 x 2.4" |
