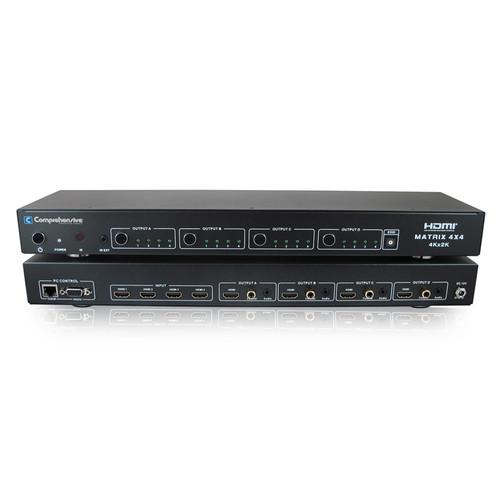

User Manual for Comprehensive CSW-HD442-4K60 4x4 HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Comprehensive CSW-HD442-4K60 4x4 HDMI Matrix Switcher
- Product category: Routers & Switchers Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Routers & Switchers
|
User manual for the Comprehensive CSW-HD442-4K60 4x4 HDMI Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description Route any of the four HDMI inputs to any of the four HDMI outputs with the CSW-HD442-4K60 4x4 HDMI Matrix Switcher. Supporting source resolutions up to DCI 4K, this switcher can be incorporated into audiovisual setups that require detailed images, such as conventions or large-screen presentations involving CAD and digital graphics. Multichannel PCM, Dolby, DTS audio, and HDCP 2.2 are supported, enabling integration into theater setups playing back protected content. Audio remains embedded in the HDMI output, although digital coaxial and 3.5mm stereo analog options are also available for each channel. Switching can be done via the front panel buttons, included wireless remote control, RS-232, or Ethernet depending on your desired equipment setup. - Quick Features
-
- Switches any four HDMI inputs to any four HDMI outputs
- Supports HDCP 2.2
- Supports resolutions up to DCI 4K at 60p (YCbCr 4:2:0)
- Each display's inputs can be switched with the IR remote control, through RS-232, or over IP
- Supports pass-through of multichannel audio that conforms to HDMI specifications
- Supports four-channel ARC control
UPC: 808447063233 In the Box Comprehensive CSW-HD442-4K60 4x4 HDMI Matrix Switcher Power Supply Remote Control RS-232 Cable IR Receiver Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CSW-HD442-4K60 4x4 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CSW-HD442-4K60 Specs | Video Bandwidth | 300 MHz, 3 Gb/s | | Video Inputs | 4 x HDMI type A | | Video Outputs | 4 x HDMI type A | | Audio Outputs | On Each Output Channel:
Embedded HDMI
Coaxial digital
3.5 mm analog stereo output | | Control | 1 x RJ45 Ethernet
1 x D-Sub 9-pin RS-232 | | ESD Protection | Human Body Model:
Air-Gap Discharge: ±8 kV
Contact Discharge: ±4 kV | | Power Supply | 12 VDC, 2.5 A | | Power Consumption | 9 W | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: 20-90% RH, non-condensing | | Dimensions | 17.3 x 4.3 x 1.8" / 43.9 x 10.9 x 4.6 cm | | Weight | 2.5 lb / 1.2 kg | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 21.0 x 8.0 x 4.7" |
