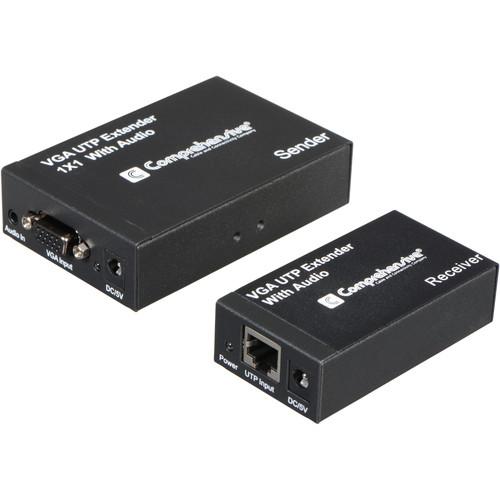

User Manual for Comprehensive CVE-TRX01 Cat5e Single Source Display VGA Extender Click to enlarge the picture
Contents of the user manual for the Comprehensive CVE-TRX01 Cat5e Single Source Display
- Product category: KVM Extenders Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive KVM Extenders
|
User manual for the Comprehensive CVE-TRX01 Cat5e Single Source Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The Comprehensive CVE-TRX01 Cat5e Single Source/Display VGA Extender is a transmission tool designed to extend both video and audio signals across long distances. With the ability to travel up to 1000' (300m), the CVE-TRX01 is ideal for a wide variety of remote applications. The unit offers a cost-effective solution for VGA projection, as well as factory, noise, and security concerns, data center control, information distribution, conference room presentation, school and corporate training. - Compact desktop size transmitter and receiver units
- Works with Cat5, Cat5e, Cat6 and Cat7 cables; easily adaptable to existing cabling setup
- Transmission distance of up to 1000' (300m)
- Plug and play with easy set-up for video signal adjustments
- Supports VGA resolutions up to 1920 x 1200
- Power LED and data transmission LED indicator
- Uses standard network cable for transmitter and receiver communication
UPC: 808447052879 In the Box Comprehensive CVE-TRX01 Cat5e Single Source/Display VGA Extender Receiver Transmitter 2 x AC Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CVE-TRX01 Cat5e Single Source Display VGA Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CVE-TRX01 Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Input)
1 x 3.5 mm Audio (Output)
1 x RJ45 Ethernet (Output)
Receiver:
1 x RJ45 Ethernet (Input)
1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Output) | | Supported Resolutions | 1920 x 1200 | | Maximum Transmission Distance | 1000' / 304.8 m | | | | DC Input Power | 5 VDC at 2 A | | Power Consumption | 5 W | | | | Dimensions | 2.6 x 1.0 x 3.9" / 6.5 x 2.6 x 10.0 cm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.661 x 7.48 x 1.969" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
