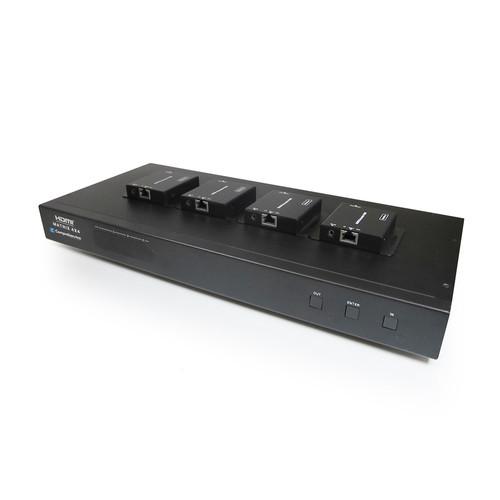

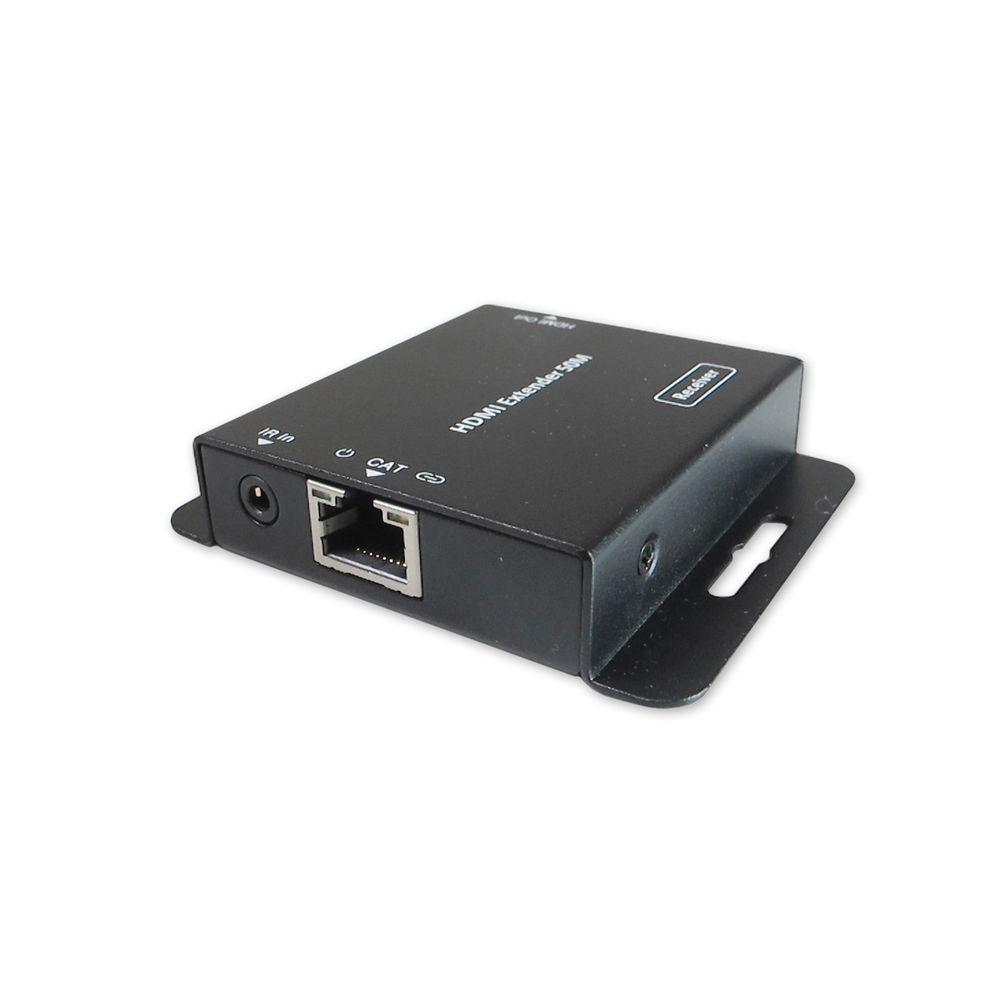

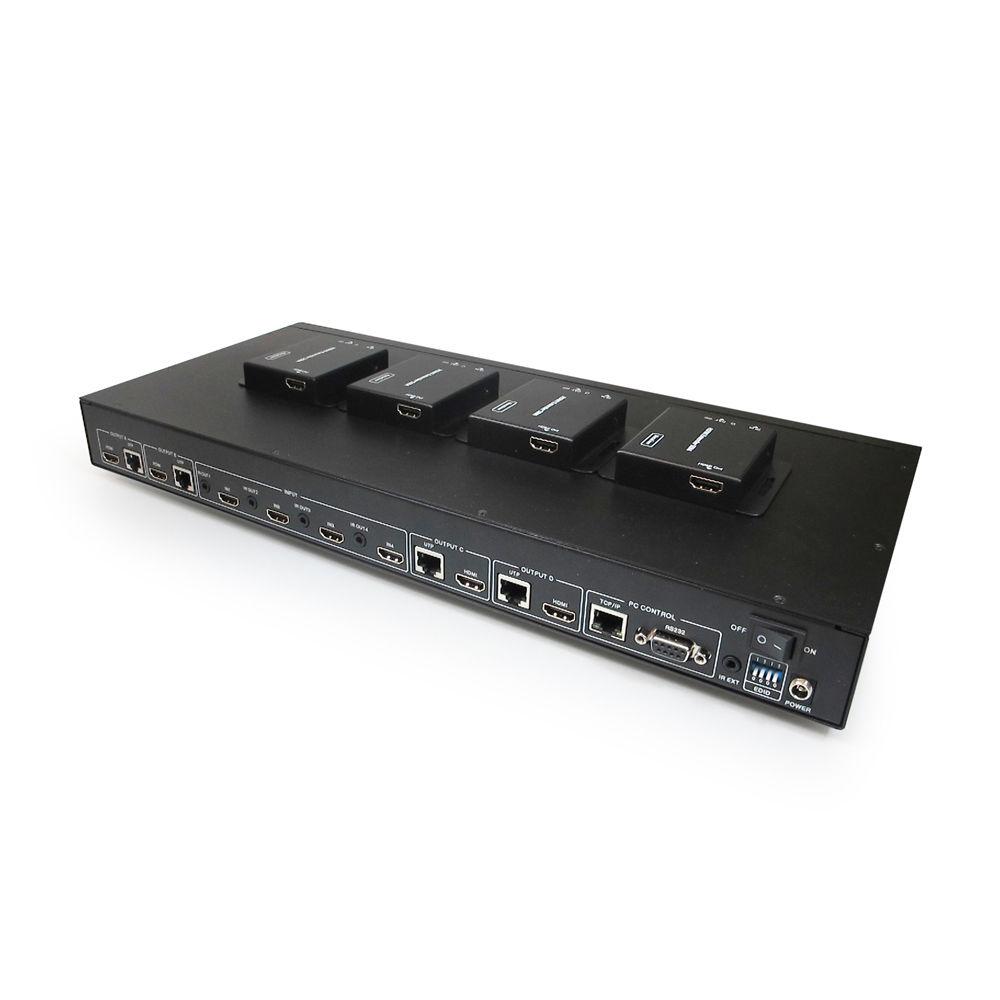

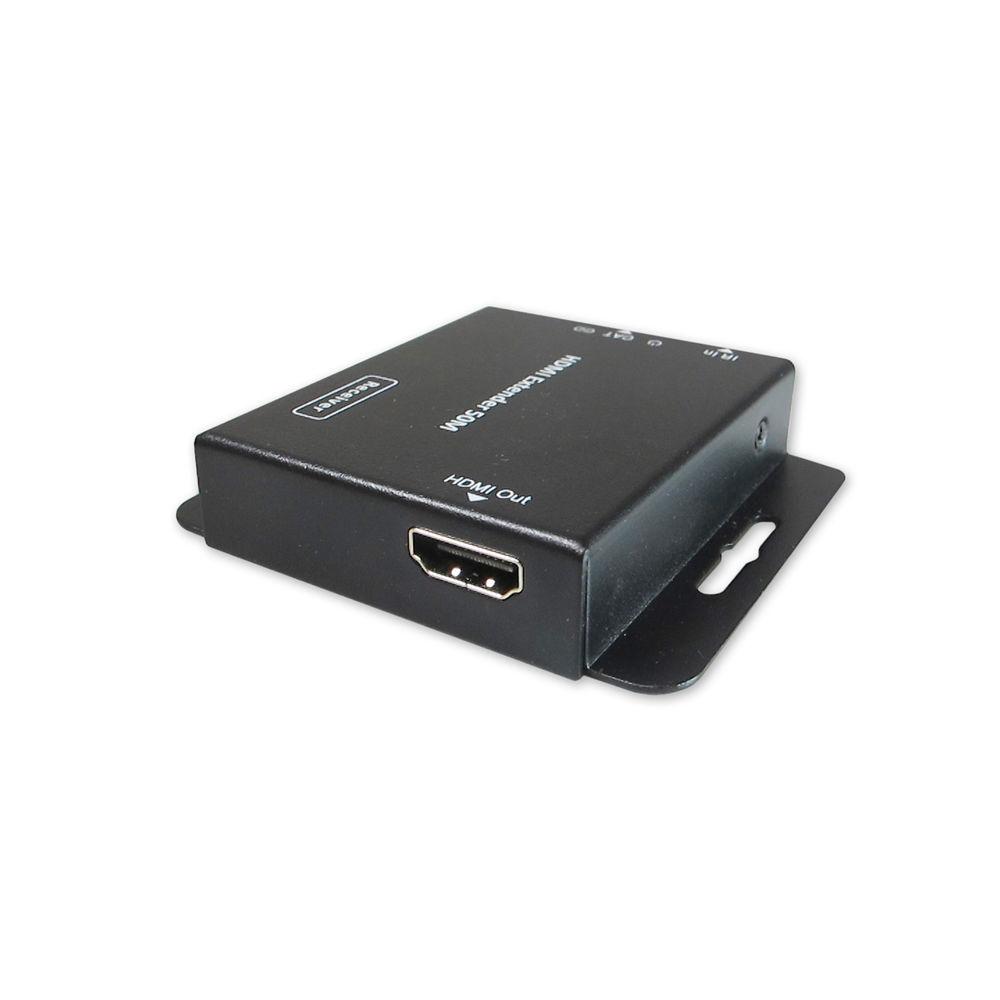

Product description The black HDMI 4x4 True Matrix Switcher/Extender from Comprehensive features four HDMI outputs, and each HDMI output is mirrored to provide a Cat5e/6/7 cable output which runs simultaneously. You can connect a receiver to each of the Cat5e/6/7 cable outputs to extend the HDMI signal up to 164’ for multi-room connectivity. It works with Blu-Ray players, set-top boxes, home theater PCs, and gaming consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR remote control, RS-232, TCP/IP, or by using the selection buttons on the front panel. This device also supports high-definition audio and 3D signal. -
- Resolution of up to 1080p
- Audio supports 7.1 channel of LPCM, Dolby TrueHD, and DTS-HD Master Audio
- Supports transmission distances up to 164’ through Cat5e/6/7 cable
- Supports smart EDID management
- Supports wideband IR (20 to 60 kHz) matrix system, IR transport channel can be forward or backward
- Supports RS-232, remote control, on-panel control, and TCP/IP Control
- Rackmountable
- Metal chassis
UPC: 808447072426 In the Box Comprehensive HDMI 4x4 True Matrix Switcher/Extender (Black) 2 x Power Supply 4 x IR Transmitter Cable 5 x IR Receiver Cable IR Remote Control Rack Ears RS-232 Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive HDMI 4x4 True Matrix Switcher Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CSW-HD440NEXT Specs | Input Ports | 4 x HDMI, 4 x IR Extender, 1 x RS-232, 1 x RJ-45 (Control), 1 x Matrix IR Extender) | | Output Ports | 4 x CAT, 4 x IR Extender, 4 x HDMI | | Output Resolution | 480/576/1080i and 480/576/720/1080p @ 24/30/50/60 | | Power Supply | 12 VDC/2.5 A (US/EU standards, CE/FCC/UL certified) | | ESD Protection | ±8 kV (air-gap discharge) ±4 kV (contact discharge) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Power Consumption | 23 W (maximum) / 0.5 W (standby) | | Dimensions (W x D x H) | 17 x 7.8 x 1.8" (43 x 20 x 4.6 cm) | | Weight | 4.0 lb (1.8 kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.0 x 12.6 x 4.7" |
