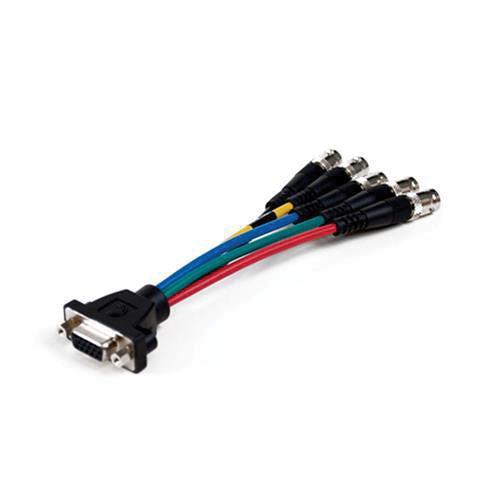

User Manual for Comprehensive HR Pro Series Low-Profile VGA HD 15 Jack to 5 BNC Jacks Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive HR Pro Series Low-Profile VGA
- Product category: VGA & DVI Breakout Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive VGA & DVI Breakout Cables
|
User manual for the Comprehensive HR Pro Series Low-Profile VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The 1' HR Pro Series Low-Profile VGA HD 15 Jack to 5 BNC Jacks Cable from Comprehensive Cables is a pro-grade cable that offers superb performance and value. This HD15 female to 5 BNC female cable has true high-resolution construction with three individually 95% shielded 26-gauge coaxes for maximum signal transfer and high resolution video and graphics. The entire cable is then 100% shielded with a foil shield to eliminate EM and RF interference, even over long cable runs. It also has machined pins which ensures the strength of each pin, to makes sure they don't bend or break. Five true 75-ohm impedance matched BNC connectors offer breakout of the component signal. For peace of mind, Comprehensive backs this cable with an impressive lifetime warranty. - HD15 female to 5 BNC female
- 26 gauge high resolution, low loss construction
- Five individually 95% tinned copper braid shielded coaxes
- 100% aluminum shield wrap provides extra coverage
- Low-profile design for easy connecting in tight spaces
- Matched pins that stand up to thousands of connections
- Five true 75-ohm impedance matched BNC connectors
- Xtra-Flex jacket for easy installation
UPC: 808447007893 In the Box Comprehensive HR Pro Series Low-Profile VGA HD 15 Jack to 5 BNC Jacks Cable (1') Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive HR Pro Series Low-Profile VGA HD 15 Jack to 5 BNC Jacks Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive VGA15JLP-5BJ-1HR Specs | Connector 1 | HD15 female | | Connector 2 | 5 BNC female | | Resolution | 2048 x 1536 | | Gauge | 26 AWG | | Conductor | Tinned copper | | Connector | Nickel finish | | Shielding | Triple shielded, inner bare copper wrap, outer 100% aluminum Mylar wrap, 95% braid | | UL Rated | Yes | | Ferrite Cores | No | | RoHS Compliant | Yes | | Jacket | Xtra-Flex PVC | | Temperature Rating | 176° F (80° C) | | Voltage | 30V | | Length | 1.0' (0.3 m) | | Weight | 12.8 oz (363.0 g) | | | | Package Weight | 0.185 lb | | Box Dimensions (LxWxH) | 8.2 x 4.1 x 1.05" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
