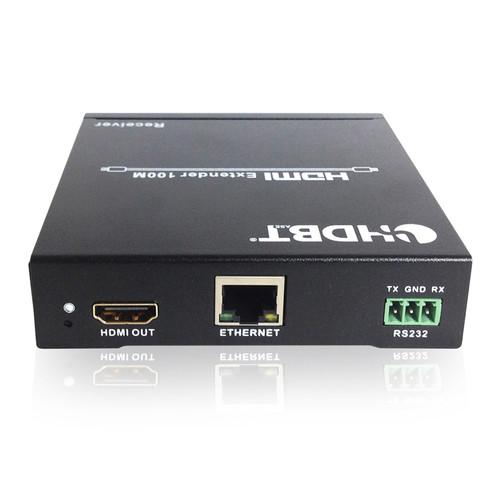

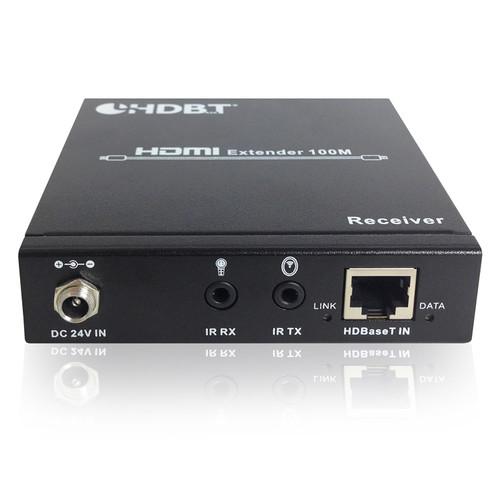

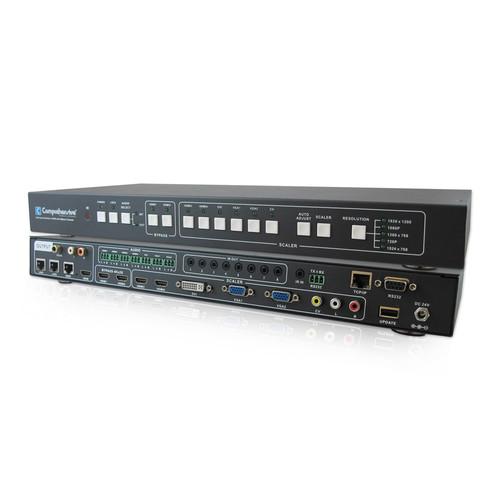

Product description The Comprehensive Multi-Input to HDMI Switcher with HDBaseT Output includes a transmitter and receiver and offers transmission distances up to 330' over Cat 6/7 cables. It features S/PDIF and stereo audio outputs and accepts one of eight inputs (one DVI, two VGA, one composite video) and four HDMI signals. With HDMI 1 and HDMI 2 to bypass the input function, the switcher supports output resolutions up to 1920 x 1080p60. It scales the video, embeds the audio, and simultaneously outputs the signal to HDMI and HDBaseT output. In addition, the switcher offers flexible control mode diversity through the front panel buttons, remote control, RS-232, and TCP/IP control. - Scales and transmits distances up to 330' through Cat 6/7 cables
- HDMI 1.4 and HDCP 1.3 compliant
- Supports resolutions up to 4K2K @ 30 Hz
- Supports input resolutions from two HDMI, one DVI, two VGA, and one composite video
- Supports S/PDIF and stereo audio outputs
- Supports smart EDID management

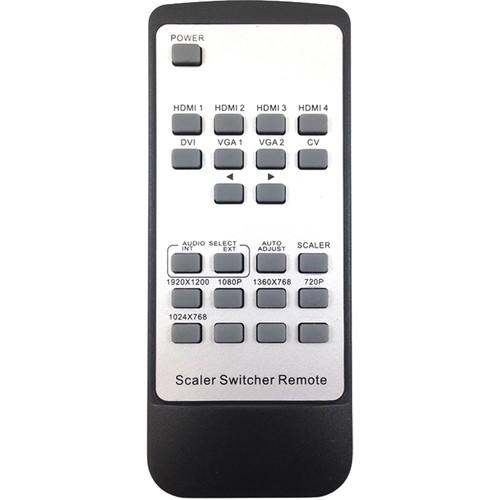

- Supports RS-232, remote control, on-panel control, and TCP/IP control
- Deep Color support, 48/36/30/24-bit
UPC: 808447078572 In the Box Comprehensive Multi-Input to HDMI Switcher with HDBaseT Output (330') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Multi-Input to HDMI Switcher with HDBaseT Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CSW-HDBT300M Specs | Input Ports | 4 x HDMI
1 x DVI
2 x VGA
1 x RCA
1 × RS-232
1 x RJ45 (control)
1 x IR in
7 x 3P captive screw connector (3.81 mm)
1 x USB | | Output Ports | 1 x HDMI
2 x RJ45 (LAN)
2 x RCA
1 x RJ45 (HDBaseT)
8 x IR out | | Input Resolutions | 4K2K @ 30 Hz | | Output Resolutions | Up to 4K2K @ 30 Hz (HDMI bypass)
Up to 1920 x 1080p60 (scaler) | | Transmission Distance | Up to 330' / 100.5 m | | Control | IR, RS-232, TCP/TP, front panel buttons | | Power Supply | 24 VDC, 1 A (US/EU standards, CE/FCC/UL certified) | | ESD Protection | ± 8 kV (air-gap discharge)
Human Body Model: ± 4 kV (contact discharge) | | Power Consumption | Maximum: 14.5 W | | Dimensions (W x D x H) | 17.5 x 8.0 x 1.8" / 44.5 x 20.3 x 4.6 cm | | Weight | 5 lb / 2.3 kg | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 20.9 x 12.7 x 4.8" |
