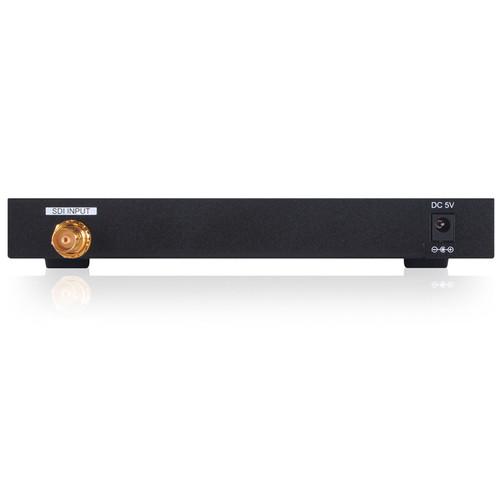

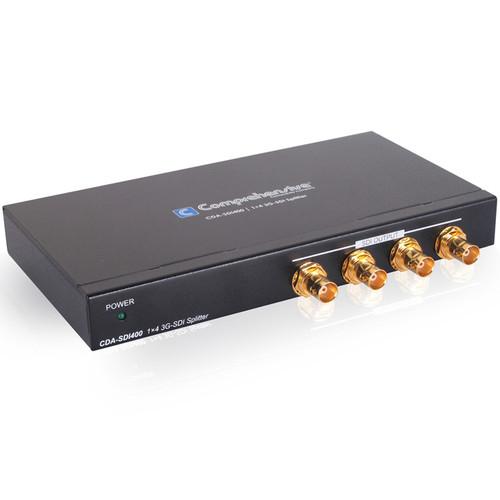

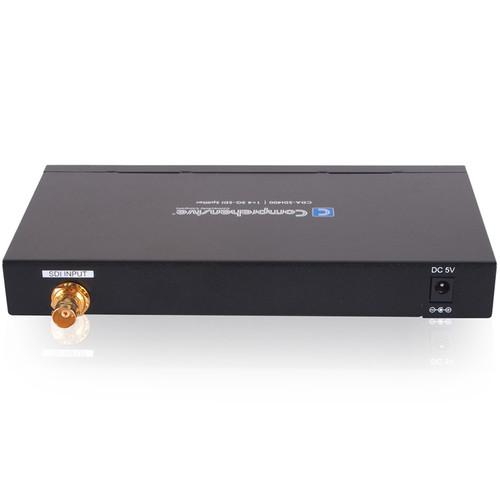

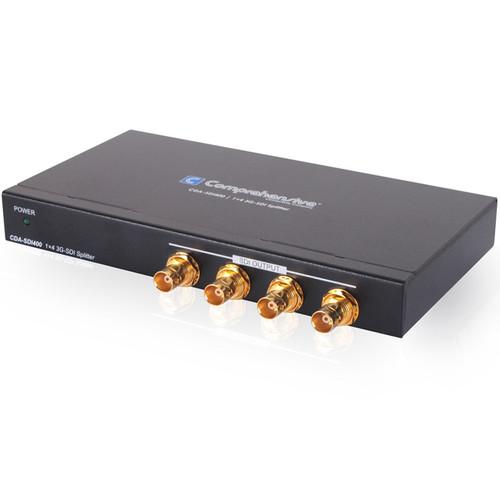

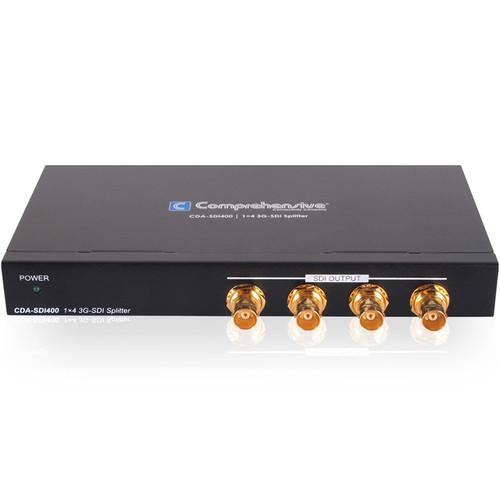

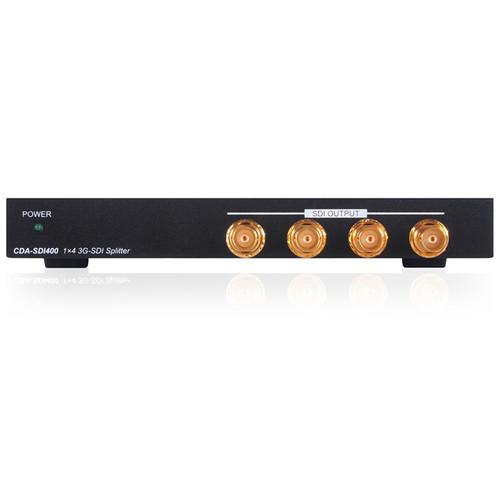

User Manual for Comprehensive Pro AV IT 3G-SDI 1x4 Splitter Click to enlarge the picture
Contents of the user manual for the Comprehensive Pro AV IT 3G-SDI 1x4
- Product category: Distribution Amplifiers (DA's) Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Distribution Amplifiers (DA's)
 |
User manual for the Comprehensive Pro AV IT 3G-SDI 1x4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description Designed for meeting room presentations, classrooms, home entertainment, and other applicable uses, the CDA-SDI400 Pro AV/IT from Comprehensive is a 1x4 3G-SDI splitter, taking the input from a single SDI source and splitting it to up to four SDI outputs. This unit can reach bit rates up to 2.970 Gb/s, allowing you to transmit a signal without any degradation over long distances. With this device, you can achieve distances up to 1000' for SD signals, 656' for HD, and 330' for 3G. Its chassis is fashioned out of metal, its power supply is locking, and all its components are RoHS compliant. - Notable Features
-
- A 3G-SDI input source is split to four 3G-SDI displays simultaneously
- Operation at 2.970 Gb/s, 2.970/1.001 Gb/s, 1.485 Gb/s, 1.485/1.001 Gb/s, and 270 Mb/s
- Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
- Provides equalized and reclocked transmission
- Supports a signal input and output distance up to 1000' for SD signals, 656' for HD, and 330' for 3G signals
- SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C
- SDI transmission rates: 2.970 Gb/s and 2.970/1.001 Gb/s
- Supplied with locking PSU
- Durable metal enclosure
UPC: 808447078213 In the Box Comprehensive Pro AV/IT 3G-SDI 1x4 Splitter 5 VDC Power Adapter Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT 3G-SDI 1x4 Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Comprehensive Pro AV IT 3G-SDI 1x4 Splitter can be downloaded in PDF format at the link stated below.
Technical parametersComprehensive CDA-SDI400 Specs | Inputs | 1 x 3G-SDI, BNC | | Outputs | 4 x 3G-SDI, BNC | | SDI Transmission Rates | Up to 2.970 Gb/s and 2.970/1.001 Gb/s | | SMPTE Standards Supported | 425M Level A & B, 424M, 292M, 259M-C | | Support Timing | 3G-SDI: 1080p60/50
HD-SDI: 720p60/50, 1080i60/50, 1080p60/50/24
SD-SDI: 576i / 480i | | Maximum Cable Distance | 3G-SDI: 330' / 100.6 m
HD-SDI: 656' / 200.0 m
SD-SDI: 1000' / 304.8 m | | Power Supply | 5 VDC | | Power Consumption | 5 W, maximum | | ESD Protection | ~8 kV (air-gap discharge)
~4 kV (contact discharge) | | Chassis Material | Metal | | Silkscreen Color | Black | | Dimensions (W x D x H) | 7.9 x 5.4 x 1.2" / 20.0 x 13.8 x 3.0 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 11.102 x 7.165 x 2.835" |
