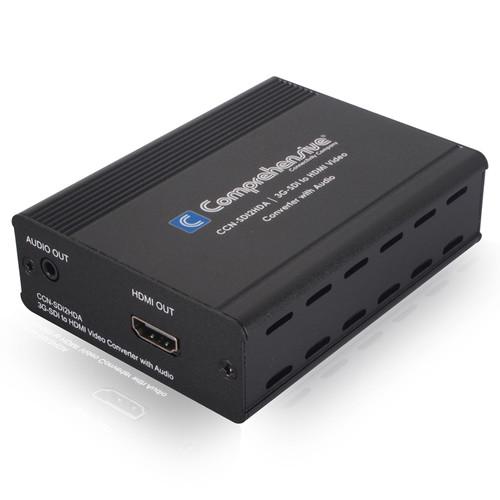

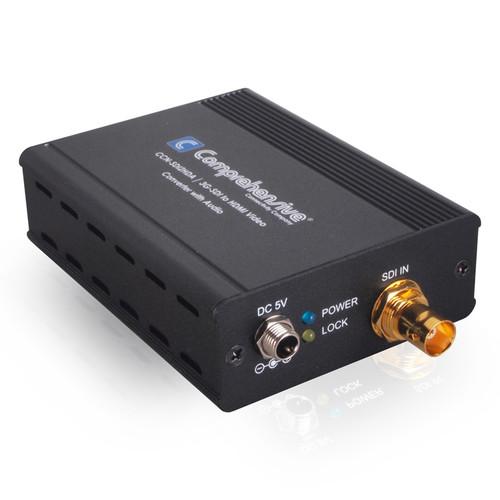

Product description The black Pro AV/IT 3G-SDI to HDMI Video Converter from Comprehensive allows SD-SDI, HD-SDI, and 3G-SDI signals to be shown on an HDMI display. It features high bitrate of 2.97 Gb/s to give you high-bandwidth lossless signal transmission for up to 1000'. The external audio output allows you to send the audio signal originally embedded in the SDI input to an amplifier or to active speakers. -
- Converts SDI source for connection to HDMI display
- Supports SD-SDI, HD-SDI, and 3G-SDI input signals with auto-detection
- SDI interface operates at bitrates of 2.970, 2.970/1.001, 1.485, 1.485/1.001 Gb/s, and 270 Mb/s
- Supports signal input and output distance of up to 1000' for SD signals, 656' for HD signals, and 330' for 3G signals
- Comes with locking PSU
- Durable metal enclosure
UPC: 808447078220 In the Box Comprehensive Pro AV/IT 3G-SDI to HDMI Video Converter with Audio Support Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT 3G-SDI to HDMI Video Converter with Audio Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Comprehensive Pro AV IT 3G-SDI to HDMI Video Converter with Audio Support can be downloaded in PDF format at the link stated below.
Technical parametersComprehensive CCN-SDI2HDA Specs | Conversion Modes | SD-SDI (SMPTE 259M-C) to 480i / 576i
HD-SDI (SMPTE 292M) to 720p @ 50 / 59.94 / 60, 1080i @ 50 / 59.94 / 60
3G-SDI (SMPTE 424M/425M-AB) to 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 1080p sF @ 23.98 / 24 / 25 / 29.97 / 30 | | Inputs | Connector:

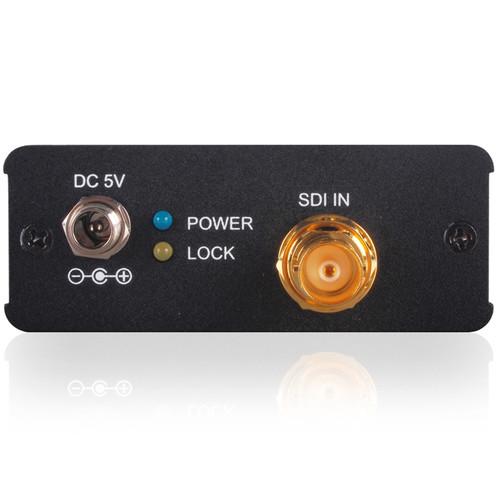

1 x BNC (1 x 3G-SDI)
Modes:
SD-SDI (SMPTE 259M-C @ 270 Mb/s)
HD-SDI (SMPTE 292M @ 1.485 and 1.485/1.001 Gb/s)
3G-SDI (SMPTE 424M/425M-AB @ 2.970 and 2.970/1.001 Gb/s) | | Outputs | 1 x HDMI (1 x Uncompressed AV and Data) | | SDI Transmission Rates | Up to 2.970 Gbit/s and 2.970/1.001 Gbit/s | | SMPTE Standards Supported | 425M Level A & B, 424M, 292M, 259M-C | | Timing | SD-SDI: 480i / 576i
HD-SDI: 720p @ 50/60, 1080i @ 50/60, 1080p @ 24/50/60

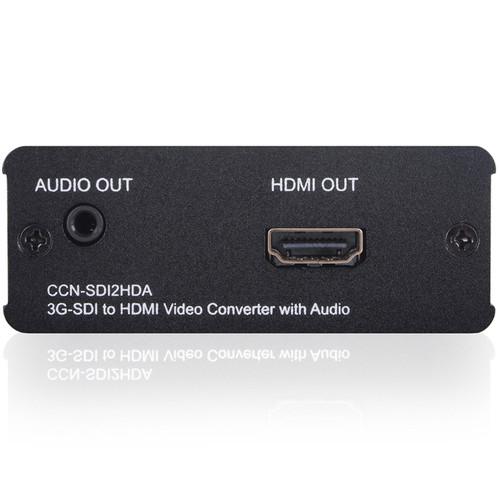

3G-SDI: 1080p @ 50/60 | | HDMI Supported Resolutions | 480i / 576i, 720p @ 50/59.94/60, 1080i @ 50/59.94/60, 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 | | Audio Output Format | HDMI: PCM 2/5.1/7.1 channel
3.5 mm analog: 2-channel | | Cable Distance | 3G-SDI up to 330' (101 m)
HD-SDI up to 656' (200 m)
SD-SDI up to 1000' (305 m) | | Power Supply | 5 VDC; 2.6 A (US/EU standards, CE/FCC/UL certified) | | Power Consumption | 5 W maximum | | ESD Protection | Approximately 8 kV (air-gap discharge)
Approximately 4 kV (contact discharge) | | Chassis Material | Aluminum | | Dimensions | 3.09 x 4.88 x 1.18" (7.85 x 12.39 x 2.99 cm) | | Weight | 7.04 oz (200 g) | | | | Package Weight | 1.055 lb | | Box Dimensions (LxWxH) | 8.25 x 4.85 x 2.5" |
