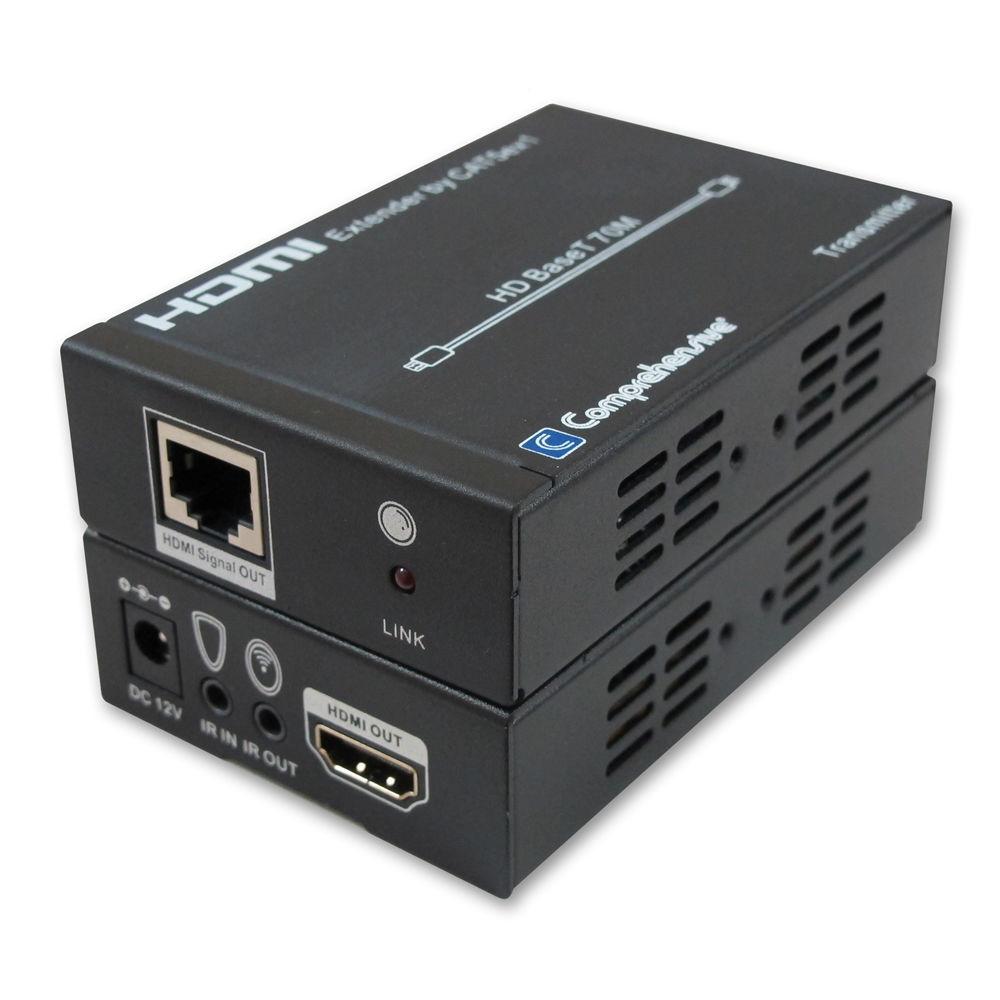

User Manual for Comprehensive Pro AV IT 3Play HDBaseT Extender Click to enlarge the picture
Contents of the user manual for the Comprehensive Pro AV IT 3Play HDBaseT
- Product category: Video Extenders & Repeaters Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Video Extenders & Repeaters
 |
User manual for the Comprehensive Pro AV IT 3Play HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|

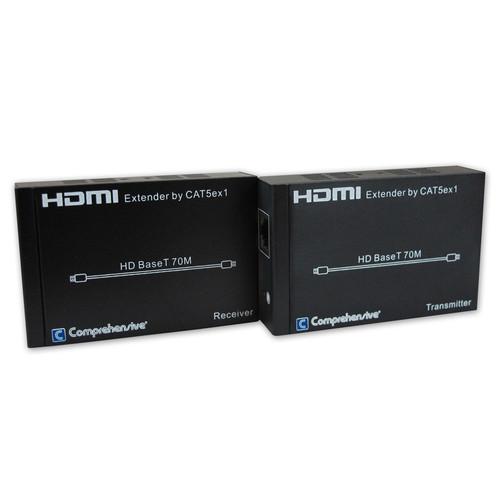

Product description Extend your HDMI and IR signals over 230' of Category cable with the Pro AV/IT 3Play HDBaseT Extender from Comprehensive. Useful in installations which require HDMI signals to be routed over longer distances than traditional HDMI cables allow, this extender kit gives you more range with no loss in quality. This HDBaseT extender set is 3Play compliant, supporting HDMI video up to 4K resolutions, multichannel audio, and bidirectional IR control signals, all in a compact yet easily mountable form factor. Since the HDMI signals remain unchanged, all protocols such as HDCP and EDID are passed through. As HDBaseT also supplies power, only a single power supply is required for both the transmitter and the receiver. UPC: 808447074819 In the Box Comprehensive Pro AV/IT 3Play HDBaseT Extender 2 x 3.5mm IR Transmitter 2 x 3.5mm IR Receiver Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT 3Play HDBaseT Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

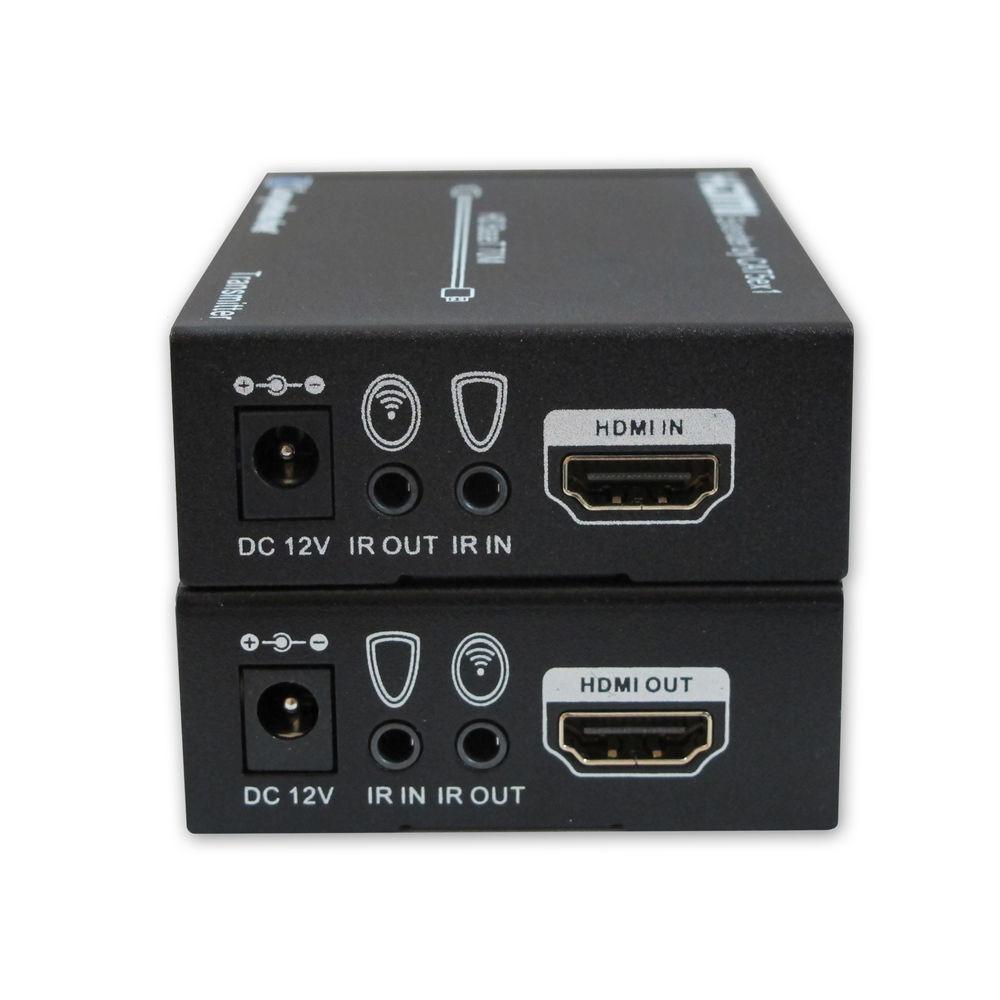

Technical parametersComprehensive CHE-HDBT200 Specs | Inputs | Transmitter:
1 x HDMI
1 x 3.5 mm IR transmitter
Receiver:
1 x RJ45 HDBaseT
1 x IR receiver | | Outputs | Transmitter:
1 x RJ45 HDBaseT
1 x IR receiver
Receiver:
1 x HDMI
1 x 3.5 mm IR transmitter | | HDMI Support | Resolution: DCI 4K up to 30p
Compliance: HDCP, DVI | | Transmission | Uncompressed HDBaseT over single Cat 5e/6/7 cable | | Transmission Distance | Up to 230' / 70 m | | Audio Support | LPCM 7.1 Ch, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio | | Power Supply | 12 VDC, 2.5 A | | Dimensions | Each: 2.5 x 3.9 x 0.9" / 64 x 99 x 23 mm | | Weight | 0.9 lb / 408 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.1 x 9.1 x 2.5" |
