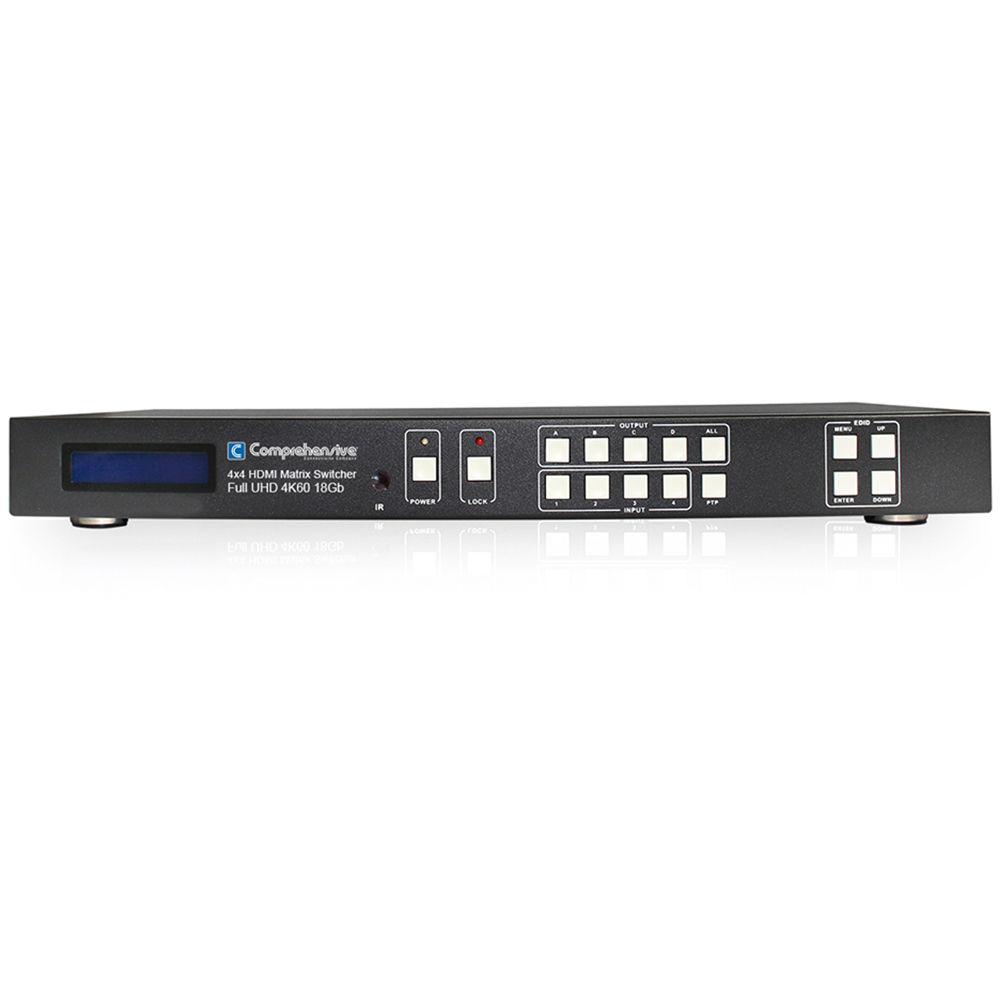

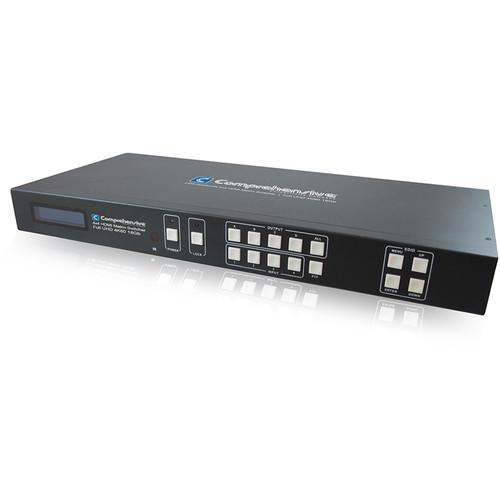

Product description The Pro AV/IT 4K 4x4 HDMI Matrix Switcher from Comprehensive allows for matrix routing in any 4x4 combination in up to Ultra HD 4K resolution at 60 fps, VESA formats up to QSXGA at 60 Hz, and 3D video. It can be operated via RS-232, the included IR remote control, TCP/IP, or front panel buttons.
Each of the four HDMI outputs also has a corresponding S/PDIF digital coax and 3.5mm TRS analog audio output for independent audio connection to an external amplifier, AV receiver, or powered speakers. One of these can be used at a time, and high-definition multichannel audio, including Dolby TrueHD and DTS-HD Master Audio, is supported via these or the HDMI outputs. - Key Features
-
- Supports up to UHD 4K/60, QSXGA/60, 3D video, and multichannel audio, including Dolby TrueHD and DTS-HD Master Audio
- Color space conversions among RGB, YCbCr4:4:4, YCbCr4:2:2, and xvYCC video formats
- Independent S/PDIF and TRS audio outputs corresponding to each HDMI output
- Controllable via RS-232, IR remote control, TCP/IP, or front panel buttons
- Smart EDID management for each source device, controllable via the front panel LCD display
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 compliant
- RoHS Certified
UPC: 808447078763 In the Box Comprehensive Pro AV/IT 4K 4x4 HDMI Matrix Switcher IR Remote Wideband IR Rx Cable RS-232 Cable 12V/2.5A Power Adapter 2 x Mounting Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT 4K 4x4 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CSW-HD44014K Specs | Supported Resolution | 3840 x 2160 at up to 60 fps
VESA formats up to QSXGA at 60 Hz

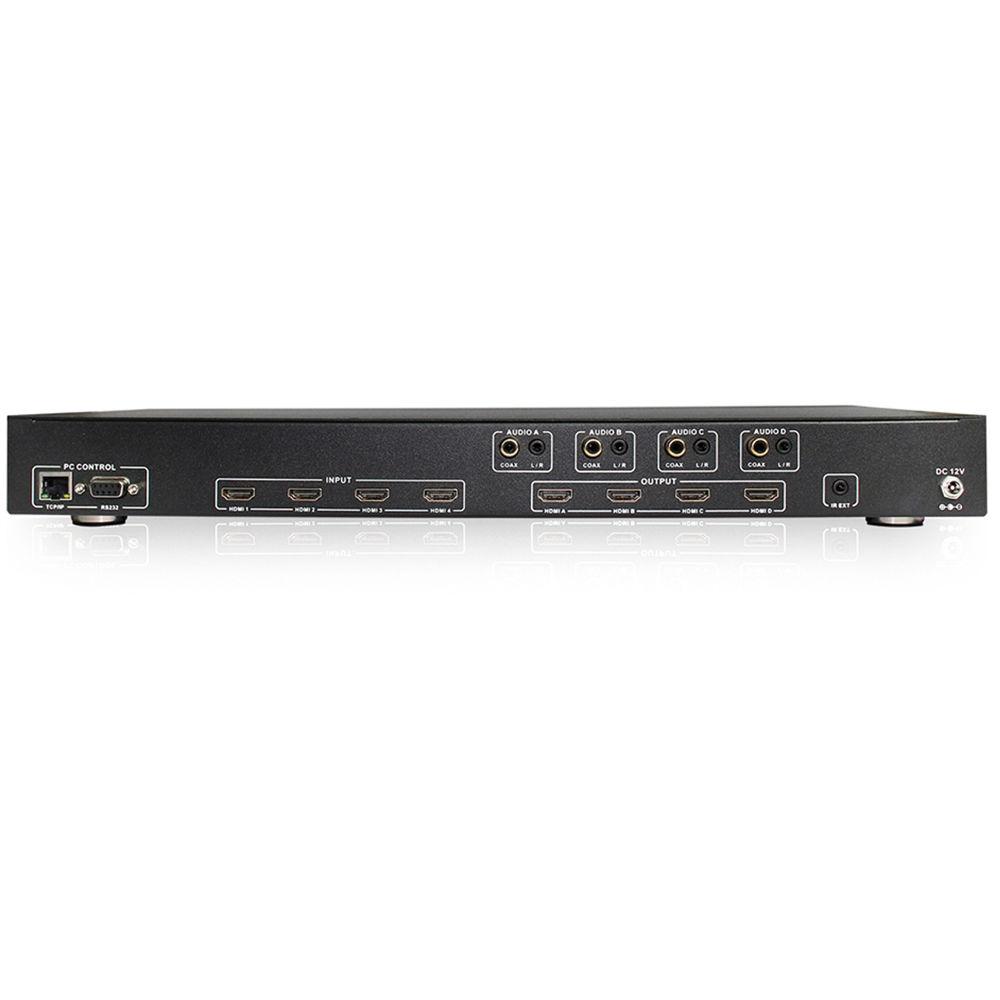

3D video | | Inputs | HDMI: 4 x HDMI type A
RS-232: 1 x DB-9
Ethernet: 1 x RJ45
IR: 1 x 3.5 mm TRS | | Outputs | HDMI: 4 x HDMI type A
IR: 1 x 3.5 mm TRS
Stereo Analog Audio: 4 x 3.5 mm
S/PDIF: 4 x coax | | HDMI Compliance | HDMI 2.0 | | Bandwidth | 18 Gb/s | | HDCP Compliance | HDCP 2.2 / HDCP 1.4 | | Chassis | Metal | | ESD Protection |
