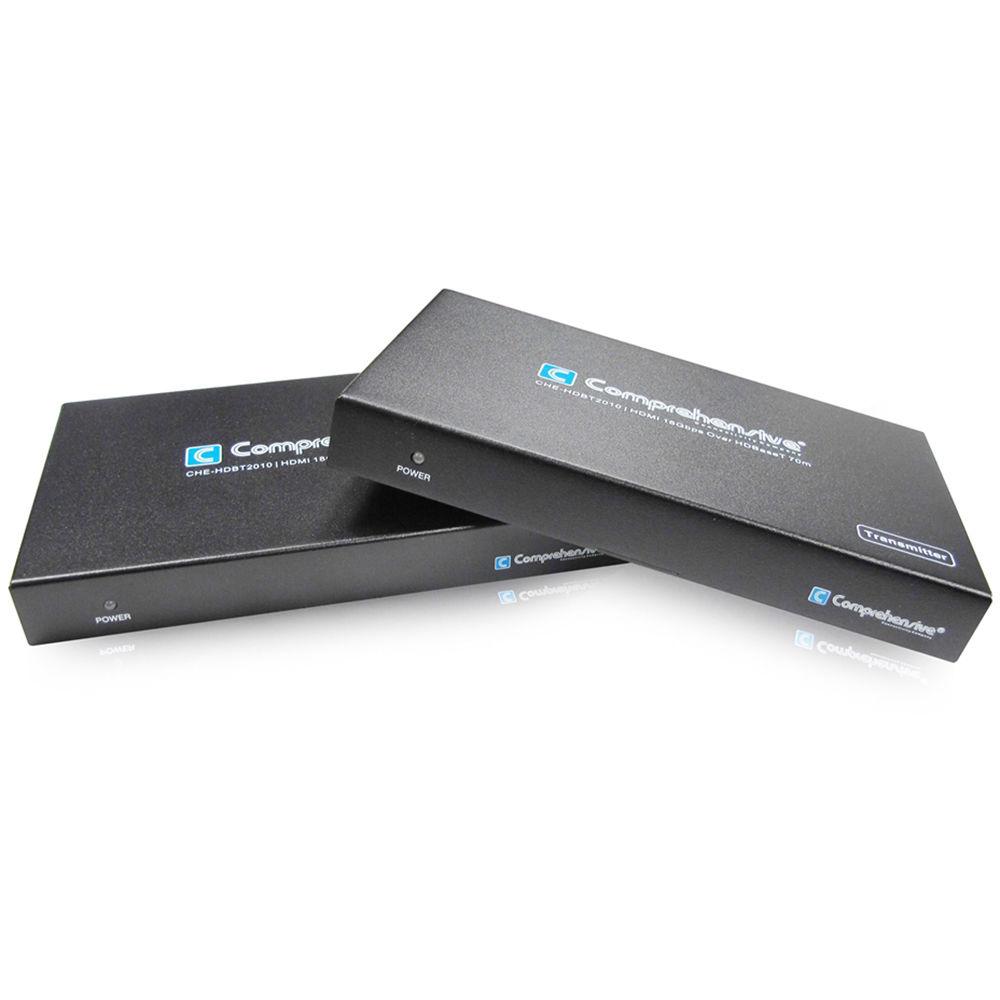

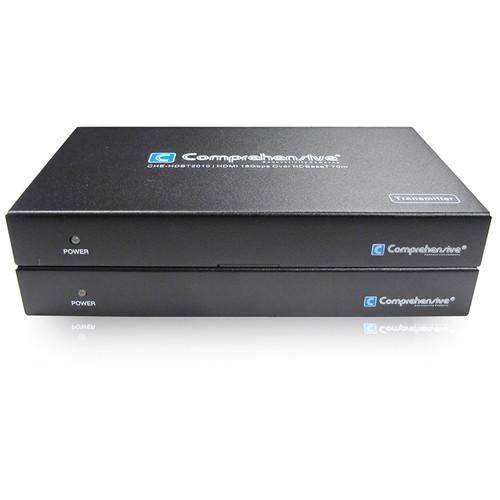

Product description The Pro AV/IT 4K HDBaseT Extender Kit from Comprehensive transmits a UHD 4K signal up to 130' and 1080p up to 230' over a single Cat 6 cable. It features an HDMI input, RS-232 ports, bidirectional IR control, and bidirectional PoC (Power over Coax — both the transmitter and receiver can be powered simultaneously by connecting just one of the units to a power source). The kit is HDCP compliant, has an 18 Gb/s bandwidth, and supports 10-bit HDR pass-through, HDMI High Bit Rate (HBR) audio pass-through, CEC bypass, and LPCM, Dolby Digital, and DTS audio. - Key Features
-
- Transmits UHD 4K up to 130' and 1080p up to 230' over a single Cat 6 cable
- HDMI input, RS-232 ports, bidirectional IR control, and bidirectional PoC
- 18 Gb/s bandwidth
- HDCP-compliant
- 10-bit HDR pass-through
- HDMI High Bit Rate (HBR) audio pass-through
- CEC bypass
- LPCM, Dolby Digital, and DTS audio support

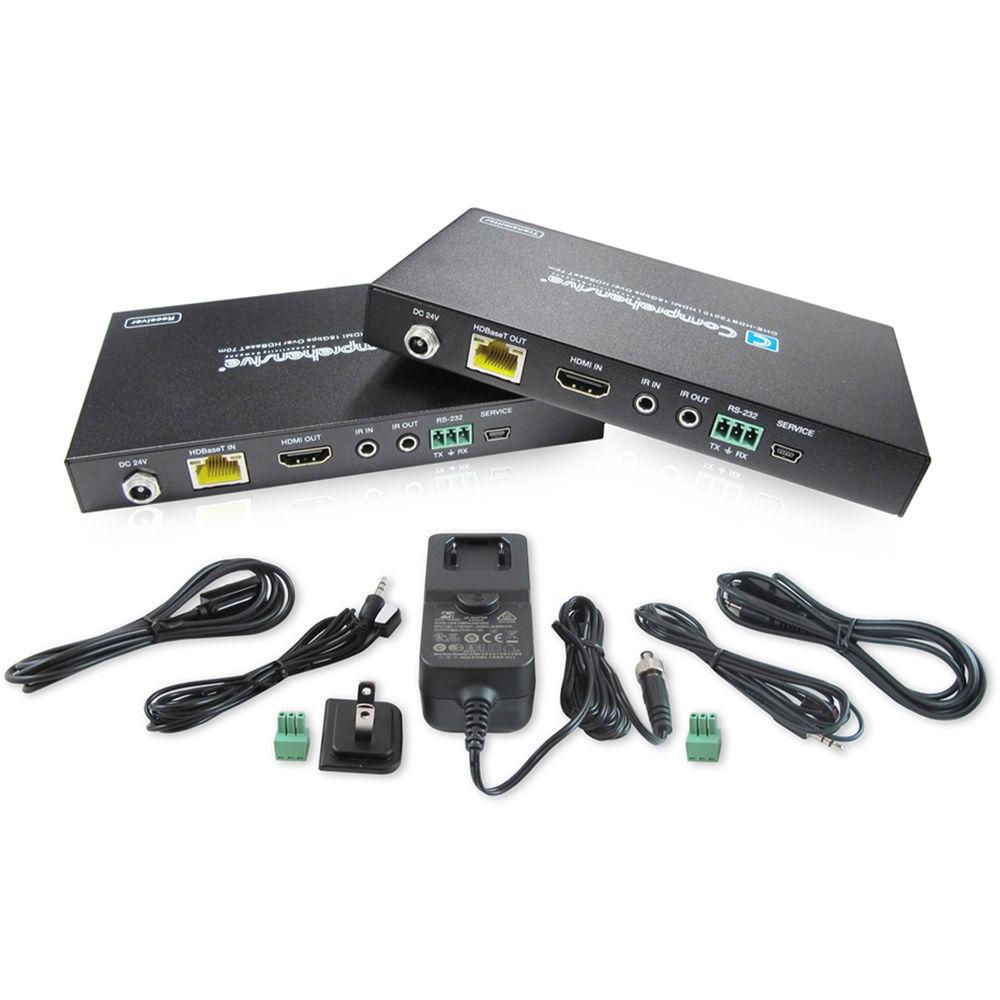

UPC: 808447079067 In the Box Comprehensive Pro AV/IT 4K HDBaseT Extender Kit Transmitter Receiver 2 x Wideband IR Transmitters 2 x Wideband IR Receivers Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT 4K HDBaseT Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

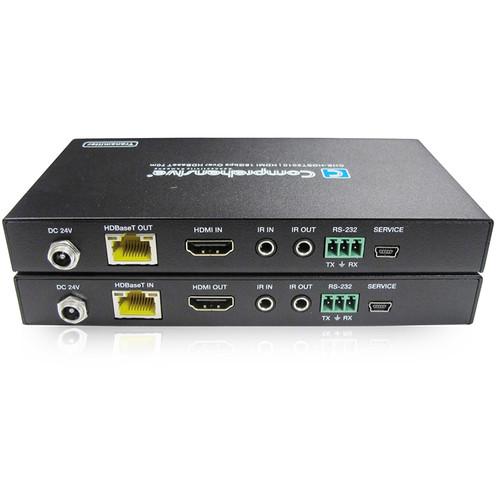

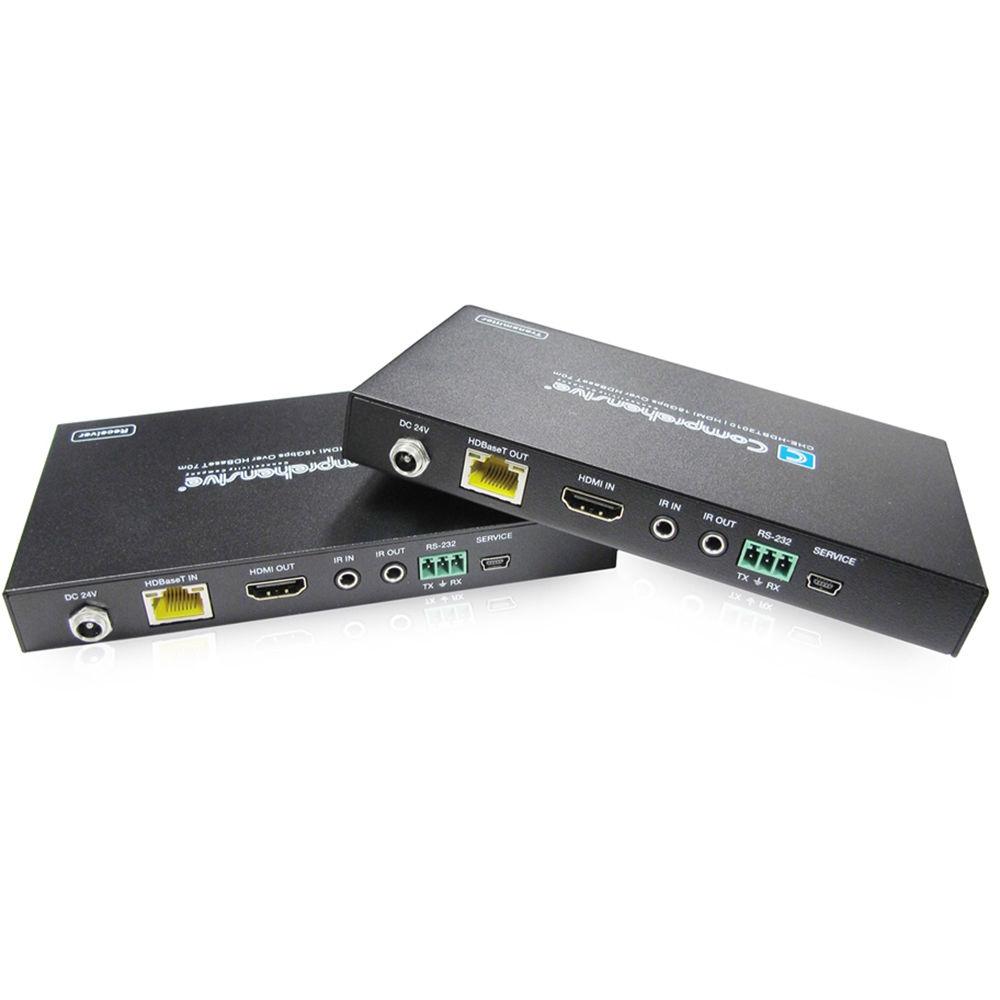

Technical parametersComprehensive CHE-HDBT2010 Specs | Inputs | Transmitter:
HDMI: 1 x HDMI Type A
IR: 1 x 3.5 mm
RS-232: 1 x Phoenix
USB: 1 x mini-USB (updates)
Receiver:
HDBaseT: 1 x RJ45
IR: 1 x 3.5 mm
RS-232: 1 x Phoenix
USB: 1 x mini-USB (updates) | | Outputs | Transmitter:
HDBaseT: 1 x RJ45
IR: 1 x 3.5 mm
Receiver:
HDMI: 1 x HDMI Type A
IR: 1 x 3.5 mm | | Video Resolution | 3840 x 2160: 60/50/30 (YUV 4:4:4)
1080p: 120/60/50 | | Transmission Distance | Over Cat 6:
4K/60 4:4:4 up to 131' (40 m)
1080p60 at 48 bits/1080p120 at 24 bits, 3D 1080p60 at 36 bits: 130' (40 m)
1080p60 at 36 bits, 1080p120 at 36 bits: 230' (70 m) | | Supported Cables | Cat 5e or higher | | Video Bandwidth | 18 Gb/s | | HDMI Compliance | HDMI 2.0b | | HDCP Compliance | 2.2/1.4 | | Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | | Color Depth | 10-bit, 12-bit | | Audio Formats | HDMI Pass-Through:
LPCM 2/5.1/7.1 channel, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical:
LPCM 2/5.1 channel, Dolby Digital 2/5.1 channel, DTS 2/5.1 channel | | ESD Protection | Human body model -
