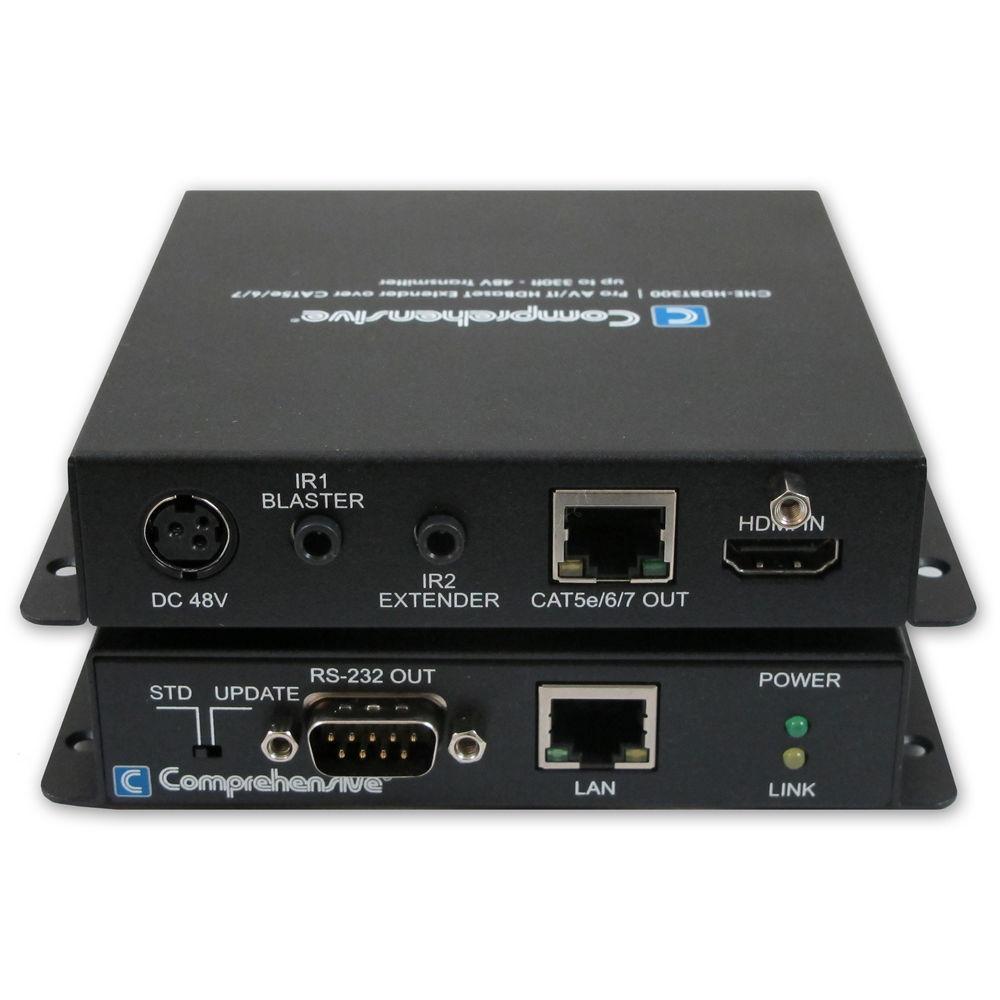

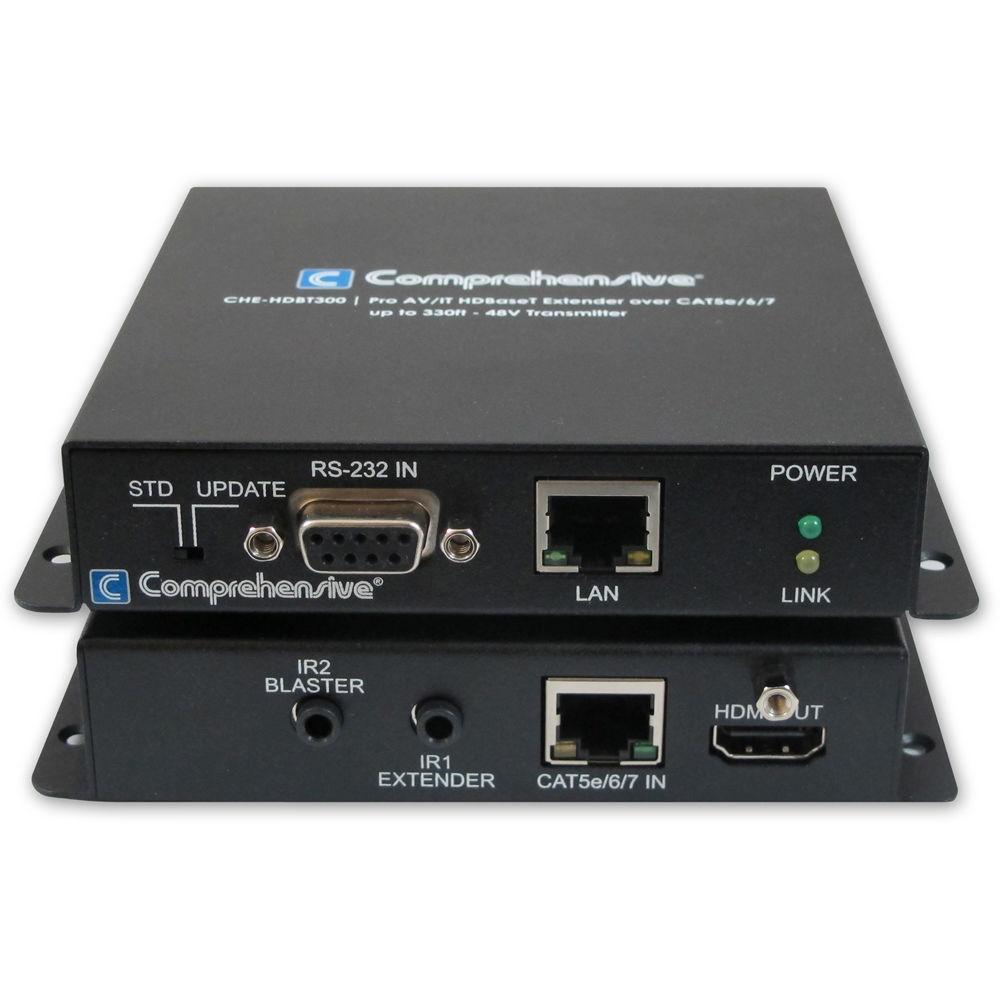

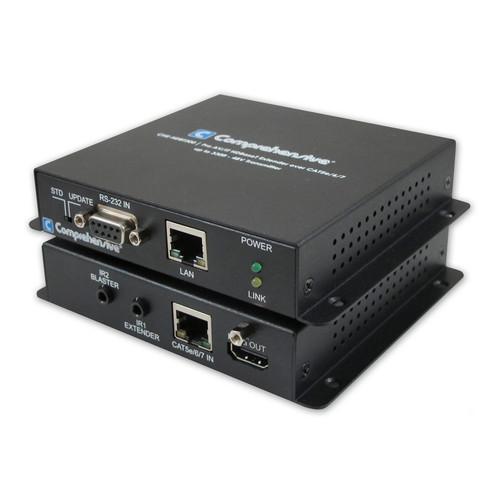

Product description Extend your HDMI and IR signals over 330' of Category cable with the Pro AV/IT 5Play HDBaseT Extender from Comprehensive. Useful in installations which require HDMI signals to be routed over longer distances than traditional HDMI cables allow, this extender kit gives you more range with no loss in quality. This HDBaseT extender set is 5Play compliant, supporting HDMI video up to 4K resolutions, multichannel audio, bidirectional IR control, RS-232 control, and Ethernet signals, all in a compact yet easily mountable form factor. Since the HDMI signals remain unchanged, all protocols such as HDCP and EDID are passed through. As HDBaseT also supplies power, only a single power supply is required for both the transmitter and the receiver. UPC: 808447072082 In the Box Comprehensive Pro AV/IT 5Play HDBaseT Extender IR Blaster IR Extender Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT 5Play HDBaseT Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CHE-HDBT300 Specs | Inputs | Transmitter:
1 x HDMI
1 x RJ45 Ethernet
1 x 3.5 mm IR
1 x 9-pin D-sub
Receiver:
1 x RJ45 HDBaseT
1 x 3.5 mm IR | | Outputs | Transmitter:
1 x RJ45 HDBaseT
1 x 3.5 mm IR
Receiver:
1 x HDMI
1 x RJ45 Ethernet
1 x 3.5 mm IR
1 x 9-pin D-sub | | HDMI Support | Resolution: DCI 4K up to 30p
Compliance: HDCP, DVI | | Transmission | Uncompressed HDBaseT over single Cat 5e/6/7 cable | | Transmission Distance | Up to 330' / 100 m | | Audio Support | LPCM 7.1 Ch, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio | | Power Supply | 48 VDC, 0.83 A | | Dimensions | Transmitter: 4.0 x 4.4 x 0.9" / 102 x 112 x 23 mm
Receiver: 4.0 x 4.2 x 0.9" / 102 x 107 x 23 mm | | Weight | 1.2 lb / 544 g | | | | Package Weight | 3.34 lb | | Box Dimensions (LxWxH) | 13.7 x 8.5 x 2.9" |
