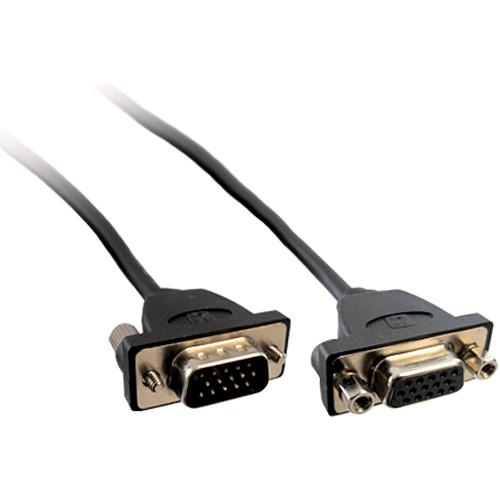

User Manual for Comprehensive Pro AV IT Series Micro VGA Male to Female Panel Mount Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive Pro AV IT Series Micro
- Product category: VGA to VGA Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive VGA to VGA Cables
|
User manual for the Comprehensive Pro AV IT Series Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The black Comprehensive Pro AV/IT Series Micro VGA Male to Female Panel Mount Cable is a 50' long cable that is great for tight spaces where a full size HD15 connector would be too large. This micro HD15 male to female cable uses premium construction with three individually 95% shielded coaxes for maximum signal transfer. The entire cable is then 100% shielded with a foil shield to eliminate EM and RF interference, even over long distances. A female VGA panel mount end allows connection to wall plates and panels for easy connection of projectors, laptops and other equipment. This cable is UL and RoHS compliant. - Micro HD15 Male to Micro HD15 Female Panel Mount
- Designed to support high-resolution imaging up to QXGA 2048x1536
- 3 individually 95% tinned copper braid shielded coaxes
- 100% aluminum foil shield wrap provides extra coverage
- Micro molded design for easy connecting in tight spaces
- Molded strain relief for unsurpassed durability
- X-traflex jacket for easy installation
UPC: 808447064278 In the Box Comprehensive Pro AV/IT Series Micro VGA Male to Female Panel Mount Cable (Black, 50') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT Series Micro VGA Male to Female Panel Mount Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive MVGA15P-J-50HR/PMT Specs | Performance Grade | Better | | Connector 1 | HD15 Male | | Connector 2 | HD15 Female Panel Mount | | Resolution | 2048 x 1536 | | Gauge | 32 AWG | | Center Conductor | Tinned Copper | | Connector Finish | Nickel | | Shielding | Triple Shielded, Inner 95% Tinned Copper Wrap and 100% Aluminum Mylar, Outer 85% Aluminum Braid | | UL Rated | Yes | | RoHS Compliant | Yes | | Ferrite Cores | No | | Jacket Type | Xtra-Flex PVC | | Temperature Rating | 80°C | | Voltage | 30V | | Length | 50' (15.24 m) | | Weight | 5.1 lb (2.31 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.7 x 7.1 x 1.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
