User Manual for Comprehensive Pro AV IT Series Micro VGA Male to Male with Audio and LAN Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive Pro AV IT Series Micro
- Product category: VGA to VGA Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive VGA to VGA Cables
|
User manual for the Comprehensive Pro AV IT Series Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|

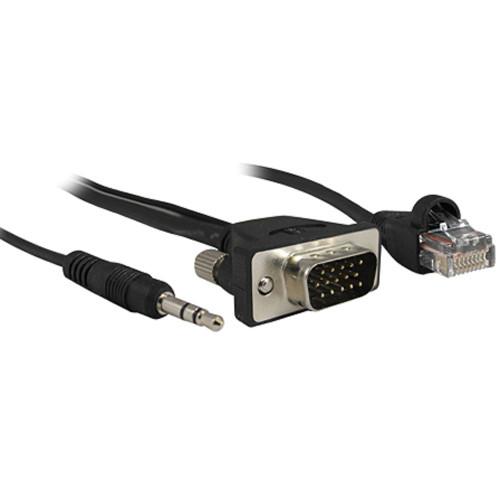

Product description The black Comprehensive Pro AV/IT Series Micro VGA Male to Male with Audio and LAN Cable is a 10' long cable that is great for tight spaces where a full size HD15 connector would be too large. This micro HD15 male to female cable uses premium construction with three individually 95% shielded coaxes for maximum signal transfer. The entire cable is then 100% shielded with a foil shield to eliminate EM and RF interference, even over long distances. A stereo 3.5mm mini plug cable and a RJ45 LAN cable are integrated for easy connection of projectors, laptops and other equipment. Pro AV/IT Series cables provide a lifetime of worry free use. This cable is UL and RoHS compliant. - Micro HD15 Male to Male with Audio and LAN
- Designed to support high-resolution imaging up to QXGA 2048x1536
- 3 individually 95% tinned copper braid shielded coaxes
- 100% aluminum foil shield wrap provides extra coverage
- Micro molded design for easy connecting in tight spaces
- Molded strain relief for unsurpassed durability
- Xtra-Flex jacket for easy installation
UPC: 808447064094 In the Box Comprehensive Pro AV/IT Series Micro VGA Male to Male with Audio and LAN Cable (Black, 10') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Pro AV IT Series Micro VGA Male to Male with Audio and LAN Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive MVGA15P-P-10HR/AL Specs | Performance Grade | Better | | Connector 1 | HD15 Male with stereo 3.5mm Audio Male and RJ45 Male | | Connector 2 | HD15 Male with stereo 3.5mm Audio Male and RJ45 Male | | Resolution | 2048 x 1536 | | Gauge | 32 AWG | | Center Conductor | Tinned Copper | | Connector Finish | Nickel | | Shielding | Triple Shielded, Inner 95% Tinned Copper Wrap and 100% Aluminum Mylar, Outer 85% Aluminum Braid | | UL Rated | Yes | | RoHS Compliant | Yes | | Ferrite Cores | No | | Jacket Type | Xtra-Flex PVC | | Temperature Rating | 80°C | | Voltage | 30V | | Length | 10' (3.04 m) | | Weight | 1.4 lbs (0.63 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 12.3 x 7.8 x 1.2" |
