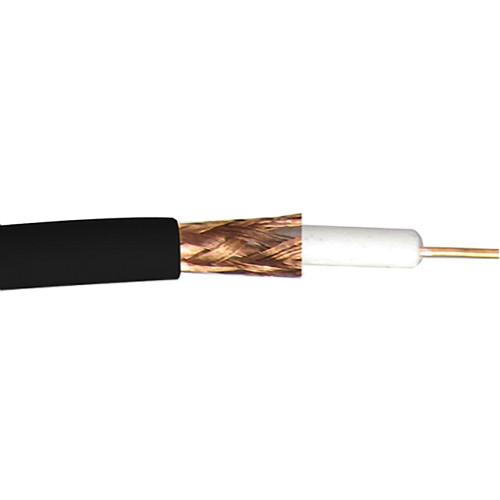

User Manual for Comprehensive RG6 SDI HDTV 18 AWG BC CATV Plenum Bulk Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive RG6 SDI HDTV 18 AWG
- Product category: Bulk Video Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Bulk Video Cables
|
User manual for the Comprehensive RG6 SDI HDTV 18 AWG contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The 1,000’ black RG59 SDI/HDTV 18 AWG BC CATV Plenum Bulk Cable from Comprehensive features a 18 AWG bare copper center conductor, plenum jacket, foam FEP dielectric, and 95% tightly woven, tinned copper braid shield. This cable is suitable for use in heavy-duty, low loss digital and HDTV applications and preferred for long distance runs. - 18 AWG solid bare copper conductor
- Low smoke, flame-resistant polyvinylchloride jacket
- Enhanced attenuation for long runs of SDI video
- 95% tinned copper braid shield and aluminum mylar wrap
- CMP/FT6 rated for use in walls and ceilings
UPC: 808447068948 In the Box Comprehensive RG6 SDI/HDTV 18 AWG BC CATV Plenum Bulk Cable (1,000', Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive RG6 SDI HDTV 18 AWG BC CATV Plenum Bulk Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CVC-6SDI/P-1000BR Specs | Center Conductor | 18 AWG solid bare copper | | Dielectric | 0.17" (4.32 mm) foam FEP Polytetrafluoroethylene | | Shield | 95% tinned copper braid | | Impedance | 75 Ohms | | Capacitance | 16.2 pF/ft | | Velocity of Propagation | 82% nominal | | Attenuation | Attenuation @ 200 MHz at 100.0' (30.5 m): 2.56 dB
Attenuation @ 400 MHz at 100.0' (30.5 m): 3.65 dB
Attenuation @ 1,000 MHz at 100.0' (30.5 m): 5.99 dB | | Jacket | Low smoke PVC | | Temperature Rating | 167°F (75°C) | | Overall Diameter | 0.234" (5.943 mm) | | Length | 1,000.0' (304.8 m) | | Weight | 33 lb (15 kg) | | | | Package Weight | 43.5 lb | | Box Dimensions (LxWxH) | 10.8 x 9.6 x 8.0" |
