User Manual for Comprehensive USB 2.0 Extender with 4 Port-Hub up to 230' Click to enlarge the picture
Contents of the user manual for the Comprehensive USB 2.0 Extender with 4
- Product category: USB Extenders Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive USB Extenders
|
User manual for the Comprehensive USB 2.0 Extender with 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|

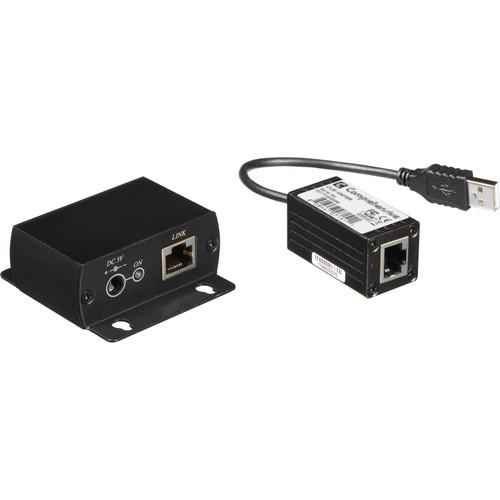

Product description The USB 2.0 Extender with 4 Port-Hub up to 230' from Comprehensive is designed to extend four USB devices up to 230' from the location of your computer over a CAT5/5e/6 UTP cable. It eliminates the 16' distance limitation of standard USB cables. It is optimized for applications for digital signage, home network integration, industrial control, security USB camera, USB device-sharing, and KVM extension. - Extend four USB devices up to 230' over CAT6 cable
- Supports USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices
- Remote unit built in 4-port hub to connect four USB devices
- Distance up to 164' over CAT5e cable, 230' over CAT6 cable
- A 5V external power supply needed for remote unit included
- Plug-and-play for easy operation
- For extending all USB 2.0 peripheral devices, such as a USB camera, printer, scanner, USB Ethernet/VGA/HDMI adapter, mass storage device, keyboard, mouse, etc.
UPC: 808447071511 In the Box Comprehensive USB 2.0 Extender with 4 Port-Hub up to 230' Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive USB 2.0 Extender with 4 Port-Hub up to 230' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CUE-104FE Specs | Input Transmitter | 1x USB type A male | | Output Receiver | 4 x USB type A female | | Link Connector | RJ-45 female | | Working Distance | CAT5e: 164.0' (49.9 m)
CAT6: 230.0' (70.1 m) | | USB Device Support | Hi-Speed: 480 Mb/s
Full-Speed: 12 Mb/s
Low-Speed: 1.5 Mb/s | | Power Consumption | 4 port USB device can supply a total of 1500 mA | | Power Adapter | 5 VDC 2 A regulated | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20° to +85°C)
Humidity: Up to 95% | | Dimensions | Transmitter: 1.00 x 1.00 x 2.76" (25.40 x 25.40 x 70.10 mm)
USB cable: 7.50" (190.50 mm)
Receiver: 2.36 x 2.76 x 1.06" (59.94 x 70.10 x 26.92 mm) | | Weight | 6.00 lb (2.72 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.6 x 4.4 x 3.4" |
