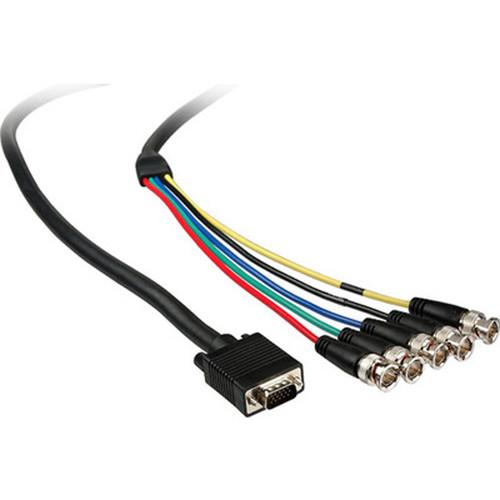

Product description Connect your HD television to your HD-compatible display card with Comprehensive's VGA 15-pin (HD15) Male to 5 BNC 10' Cable. If your HDTV has five-input component-video capability and BNC-type connectors, this cable will give you the highest possible signal by separating Red, Green, Blue, Horizontal and Vertical Sync signals.
With an X-traflex PVC jacket that breaks out into five individual BNC-type connectors, the VGA 15-pin (HD15) Male to 5 BNC 10' Cable is perfect for plugging into your high-definition television to experience breathtaking HD media, streaming web content, or as an additional computer monitor. - HDTV Compatible
- Use this cable to connect your high-definition television to your compatible display card and watch HDTV (with optional HDTV decoder), HD-enabled DVDs, WM9 content, and other media specifically designed for HD viewing, as well as any standard-definition media.
- BNC Connectors
- BNC connectors are standard among many professional video and audio components, and are increasingly showing up in high-end HDTV systems. Featuring a twist-lock, tip-sleeve, two-wire configuration, RCA connectors transfer either component video, composite video, S/PDIF Audio or a single channel of audio (L or R).
Please Note: BNC connectors are not compatible with RCA-type inputs without optional RCA-to-BNC adapters. - HD-15 Connector
- The HD-15 connector is the standard method for PC to VGA/SVGA monitor interface. HD-15 cables are also used to connect a computer to an HD-capable television, either directly with the HD-15 connector, or through an optional HD-15 to YPrPb (Component) adapter.
- High-Quality Components
- High-density nickel-coated brass connectors and fully shielded, tinned-copper conductors ensure superior and secure signal transfer - even over long distances.
- X-traflex Jacket
- This proprietary PVC jacket is more flexible, decreasing cable wear and improving usability.
- Lifetime Warranty
- Comprehensive HD-15 cables feature a lifetime warranty.
UPC: 808447002492 In the Box Comprehensive VGA 15-pin (HD15) Male to 5 BNC Cable - 10' Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive VGA 15-pin Male to 5 BNC Cable - 10' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive VGA15P-5BP-10HR Specs | Cable Type | 15-pin VGA/SVGA to 5 BNC-type Component (RGBHV) Connectors | | Length | 10' | | Ideal Application | Used to connect computer display cards to HDTV monitors | | | | Conductors | Coaxial: 3 Tinned copper
Twisted Pair: 2 Tinned copper
Stranded: 7 Tinned copper | | Gauge | 26 AWG | | Shielding | Coaxial: 100% Tinned copper wrap with aluminum foil wrap
Twisted Pair: Tinned copper braided shield
Overall Shield: 100% Tinned copper braid with aluminum foil wrap | | Dielectric (Insulation) | Coaxial: Foamed fluorinated ethylene propylene
Overall Insulation: Polyvinyl chloride | | Time Delay Skew | 1.2 ns per foot | | Impedance | 75 ohm | | Capacitance | 17 per ft | | Jacket | Overall: Black PVC - Polyvinyl Chloride - 0.350" +/- 0.050"
Coaxial: Red/Blue/Green/Black/Yellow PVC - Polyvinyl Chloride - 0.107" +/- 0.005" | | Pull Strength | Not Specified by Manufacturer | | Bend Radius | Not Specified by Manufacturer | | | | Shielding | 100% tinned copper braid with aluminum foil | | Connector 1 | 15-pin High Density - Male | | Connector 2 | 5 High Density BNC-type - Male | | Contacts | Nickel Coated Brass | | Body | Nickel Coated Brass
Molded PVC | | Interface Required | 15-pin Female
(5) BNC-type Female | | Standards Certification | UL Listing: CL2 | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.4 x 6.3 x 1.8" |
