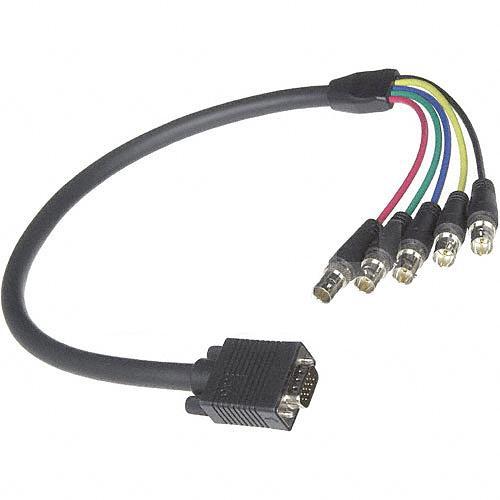

User Manual for Comprehensive VGA 15-pin Male to 5-BNC Female - Adapter - 6' Click to enlarge the picture
Contents of the user manual for the Comprehensive VGA 15-pin Male to 5-BNC
- Product category: VGA & DVI Breakout Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive VGA & DVI Breakout Cables
|
User manual for the Comprehensive VGA 15-pin Male to 5-BNC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description With the VGA 15-pin (HD15) Male to 5 BNC Female Adapter - 6', you can utilize your existing 5-conductor BNC-type video cables to connect a compatible computer display card to your component video equipment. This adapter will give you the highest possible signal by separating Red, Green, Blue, Horizontal and Vertical Sync signals.
With an X-traflex PVC jacket that breaks out into five individual BNC-type female connectors, the VGA 15-pin (HD15) Male to 5 BNC Female Adapter is a valuable piece of your exciting HDTV experience. - HDTV Compatible
- Use this adapter to connect your high-definition television, compatible display card and five-conductor BNC-type cable to watch HDTV (with optional HDTV decoder), HD-enabled DVDs, WM9 content, and other media specifically designed for HD viewing, as well as any standard-definition media.
- BNC Connectors
- BNC connectors are standard among many professional video and audio components, and are increasingly showing up in high-end HDTV systems. Featuring a twist-lock, tip-sleeve, two-wire configuration, RCA connectors transfer either component video, composite video, S/PDIF Audio or a single channel of audio (L or R).
Please Note: BNC connectors are not compatible with RCA-type inputs without optional RCA-to-BNC adapters. - HD-15 Connector
- The HD-15 connector is the standard method for PC to VGA/SVGA monitor interface. HD-15 cables are also used to connect a computer to an HD-capable television, either directly with the HD-15 connector, or through an optional HD-15 to YPrPb (Component) adapter.
- High-Quality Components
- High-density nickel-coated brass connectors and fully shielded, tinned-copper conductors ensure superior and secure signal transfer - even over long distances.
- X-traflex Jacket
- This proprietary PVC jacket is more flexible, decreasing cable wear and improving usability.
- Lifetime Warranty
- Comprehensive HD-15 cables feature a lifetime warranty.
UPC: 808447012606 In the Box Comprehensive VGA 15-pin Male to 5-BNC Female - Adapter - 6' Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive VGA 15-pin Male to 5-BNC Female - Adapter - 6' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive VGA15P-5BJ-6HR Specs | Cable Type | 15-pin VGA/SVGA to 5 Female BNC-type Component (RGBHV) Connectors | | Length | 6' | | Ideal Application | Used to connect computer display cards to BNC-type Cables | | | | Conductors | Coaxial: 3 Tinned copper
Twisted Pair: 2 Tinned copper
Stranded: 7 Tinned copper | | Gauge | 26 AWG | | Shielding | Coaxial: 100% Tinned copper wrap with aluminum foil wrap
Twisted Pair: Tinned copper braided shield
Overall Shield: 100% Tinned copper braid with aluminum foil wrap | | Dielectric (Insulation) | Coaxial: Foamed fluorinated ethylene propylene
Overall Insulation: Polyvinyl chloride | | Time Delay Skew | 1.2 ns per foot | | Impedance | 75 ohm | | Capacitance | 17 per ft | | Jacket | Overall: Black PVC - Polyvinyl Chloride - 0.350" +/- 0.050"
Coaxial: Red/Blue/Green/Black/Yellow PVC - Polyvinyl Chloride - 0.107" +/- 0.005" | | Pull Strength | Not Specified by Manufacturer | | Bend Radius | Not Specified by Manufacturer | | | | Shielding | 100% tinned copper braid with aluminum foil | | Connector 1 | 15-pin High Density - Male | | Connector 2 | 5 High Density BNC-type - Female | | Contacts | Nickel Coated Brass | | Body | Nickel Coated Brass
Molded PVC | | Interface Required | 15-pin Female
(5) BNC-type Male | | Standards Certification | UL Listing: CL2 | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.032 x 6.299 x 1.25" |
