Comprehensive VGA 15-pin Male to Male

Search your instruction manual in PDF to download

User Manual for Comprehensive VGA 15-pin Male to Male Cable

Click to enlarge the picture
Comprehensive VGA 15-pin Male to Male Cable Contents of the user manual for the Comprehensive VGA 15-pin Male to Male
  • Product category: VGA to VGA Cables Comprehensive
  • Brand: Comprehensive
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Comprehensive VGA to VGA Cables

User manual for the Comprehensive VGA 15-pin Male to Male contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Comprehensive product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!



Product description

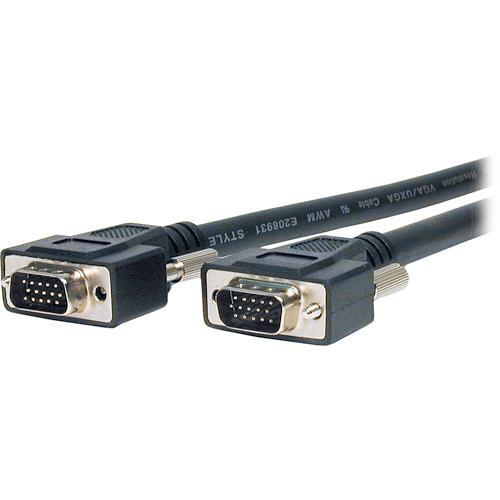

Upgrade your old 15-pin video cables with Comprehensive's 3' VGA 15-pin (HD15) Male to Male Cable, used primarily to connect a female 15-pin VGA monitor to a female 15-pin display card socket. High-density nickel-coated brass connectors and fully shielded, tinned-copper conductors ensure superior and secure signal transfer - even over long distances.

Its X-traflex PVC jacket is UL rated and the VGA 15-pin (HD15) Male to Male 3' Cable also comes in a variety of lengths, sure to meet many monitor-to-computer applications.
    HD-15 Connector
  • The HD-15 connector is the standard method for PC to VGA/SVGA monitor interface. HD-15 cables are also used to connect a computer to an HD-capable television, either directly with the HD-15 connector, or through an optional HD-15 to YPrPb (Component) adapter.
    Extended Length
  • The full-coverage shielding integrated into this cable allows for extended cable runs with low-interference.
    Lifetime Warranty
  • Comprehensive HD-15 cables feature a lifetime warranty.
    X-traflex Jacket
  • This proprietary PVC jacket is more flexible, decreasing cable wear and improving usability.
    Secure Thumbscrews
  • Secure your cable connections using 2 textured thumbscrews.
UPC: 808447002614 In the Box Comprehensive VGA 15-pin (HD15) Male to Male Cable (3')
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Comprehensive VGA 15-pin Male to Male Cable in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Comprehensive VGA15P-P-3HR Specs

    Cable Type 15-pin to 15-pin VGA/SVGA
    Length 3.0' (0.9 m)
    Ideal Application Used to connect computer display cards to VGA and SVGA monitors
    Conductors Coaxial: 3 Tinned copper
    Twisted Pair: 2 Tinned copper
    Stranded: 7 Tinned copper
    Gauge 26 AWG
    Shielding Coaxial: 100% Tinned copper wrap with aluminum foil wrap
    Twisted Pair: Tinned copper braided shield
    Overall Shield: 100% Tinned copper braid with aluminum foil wrap
    Dielectric (Insulation) Coaxial: Foamed fluorinated ethylene propylene
    Overall Insulation: Polyvinyl chloride
    Time Delay Skew 1.2 ns per foot
    Impedance 75 ohm
    Capacitance 17 per ft
    Jacket Black PVC - Polyvinyl Chloride - .350" +/- .050"
    Pull Strength Not Specified by Manufacturer
    Bend Radius Not Specified by Manufacturer
    Shielding 100% tinned copper braid with aluminum foil
    Connector 1 15-pin High Density - Male
    Connector 2 15-pin High Density - Male
    Contacts Nickel Coated Brass
    Body Nickel Coated Brass
    Interface Required (2) 15-pin Female
    Standards Certification UL Listing: CL2
    Package Weight 0.45 lb
    Box Dimensions (LxWxH) 6.3 x 3.8 x 0.8"
