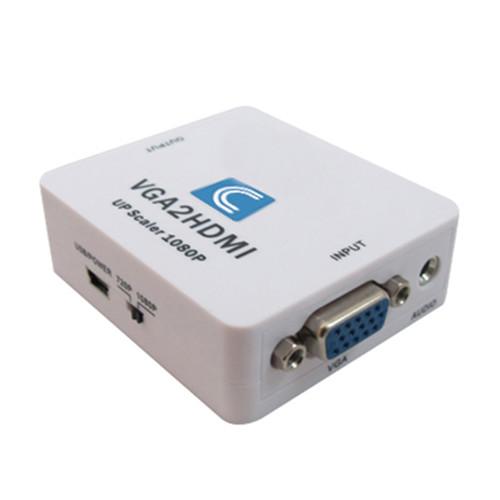

User Manual for Comprehensive VGA2HD01 VGA to HDMI and Audio Scaler Converter Box Click to enlarge the picture
Contents of the user manual for the Comprehensive VGA2HD01 VGA to HDMI and
- Product category: Signal Converters Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Signal Converters
|
User manual for the Comprehensive VGA2HD01 VGA to HDMI and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The Comprehensive VGA2HD01 VGA to HDMI and Audio Scaler Converter Box allows you to upscale the analog video signal from a PC source to a digital HDMI output (720p/1080p). It also accepts analog L/R audio input and converts it to digital format, embedding it into the HDMI video output. - Scales PC resolutions to HDMI (720p/1080p) output
- VGA input supports up to 1920 x 1080 @ 60 Hz
- Processes input signals to provide good precision, colors, resolution, and detail
- Scaling technology allows the device to accept progressive input resolutions
- Draws power from the HDMI jack, no separate power supply needed
- Included USB cable will power unit, if needed
UPC: 808447071603 In the Box Comprehensive VGA2HD01 VGA to HDMI and Audio Scaler Converter Box USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive VGA2HD01 VGA to HDMI and Audio Scaler Converter Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive VGA2HD01 Specs | Input Ports | 1 x VGA
1 x 3.5 mm stereo mini jack | | Output Ports | 1 x HDMI | | Supported Input / Output Resolutions | 640 x 480 @ 60/72/75/85 Hz
800 x 600 @ 60/72/75/85 Hz
1024 x 768 @ 60/70/75/85 Hz
1152 x 864 @ 75 Hz
1280 x 720 @ 60 Hz
1280 x 768 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1440 x 1050 @ 60 Hz
1440 x 900 @ 60 Hz
1680 x 1050 @ 60 Hz
1600 x 1200 @ 60 Hz
1920 x 1080 @ 60 Hz | | Dimensions | 2.6 x 2.17 x 0.79" (6.6 x 5.51 x 2.01 cm) | | Weight | 4 oz (113.4 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.1 x 3.6 x 1.0" |
