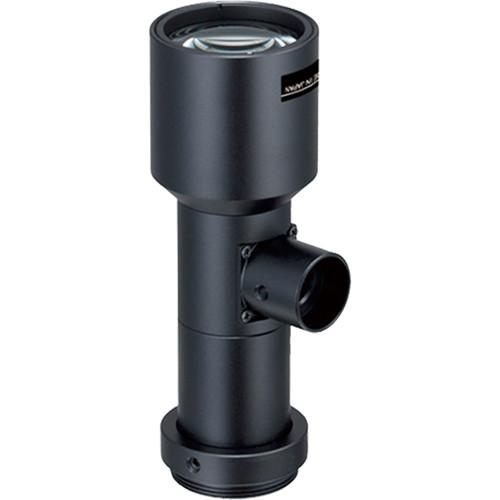

Product description This 0.5x, 2 Megapixel Telecentric Lens with Coaxial Light Port in C-Mount for 2/3" Sensors from Computar is designed for machine vision applications and incorporates a port for a coaxial lighting fixture (not included).
It is a fixed focal length lens that resolves an image on 2/3" cameras with 2MP sensors, and it incorporates a C-Mount. Featuring a minimum working distance of 2.58", while providing a 0.5x magnification, the lens has low corner distortion of -0.012%. - Telecentric lenses are designed so that the light exiting the rear element is perpendicular to the sensor. Non-telecentric lens designs allow the light to strike the sensor at an angle, which can lead to vignetting at the edge and corners of the sensor. The telecentric design of the lens minimizes vignetting.
- This lens incorporates a port for a coaxial lighting device (not included). This set up enbales you to illuminate the target area from the position of the lens itself as opposed to setting up lights adjacent to your target.
In the Box computar 0.5x, 2 Megapixel Telecentric Lens with Coaxial Light Port in C-Mount for 2/3" Sensors (2.58" Working Distance) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar 0.5x, 2 Megapixel Telecentric Lens with Coaxial Light Port in C-Mount for 2 3" Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar TEC-M0565MPC Specs | Magnification | 0.5x | | Mount | C-Mount | | Coverage | 2/3"-type sensor
Diameter: 0.4" / 11 mm | | Working Distance | 2.58" / 65.5 mm | | Effective Aperture | f/9 | | Resolving Power | 12 µm | | Depth of Field | 0.11" / 2.87 mm | | Back Focal Length | 0.7" / 17mm | | Flange Back Length | 0.69" / 17.526 mm | | Field of View | 2/3": 0.69 x 0.52" / 17.60 x 13.20 mm
1/1.8": 0.56 x 0.42" / 14.30 x 10.60 mm
1/2": 0.50 x 0.38" / 12.80 x 9.60 mm
1/3": 0.38 x 0.28" / 9.60 x 7.20 mm | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | Diameter x Length: 1.26 x 3.48" / 32.00 x 88.30 mm | | Weight | 2.8 oz / 80.0 g |
