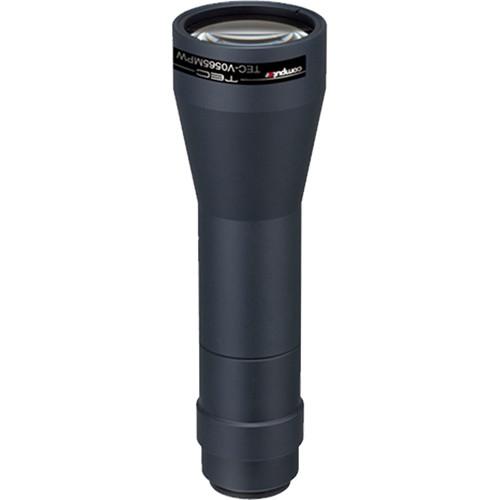

User Manual for computar 0.5x, 5 Megapixel Telecentric Lens in C-Mount for 1" Sensors Click to enlarge the picture
Contents of the user manual for the computar 0.5x, 5 Megapixel Telecentric Lens
- Product category: Industrial Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Industrial Lenses
|
User manual for the computar 0.5x, 5 Megapixel Telecentric Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description This 0.5x, 5 Megapixel Lens in C-Mount for 1" Sensors from computar is designed for machine vision applications. It is a fixed focal length lens that resolves an image on 1" cameras with 5MP sensors, and it incorporates a C-Mount. Featuring a minimum working distance of 2.56", while providing a 0.5x magnification, the lens has low corner distortion of -0.014%. - Telecentric lenses are designed so that the light exiting the rear element is perpendicular to the sensor. Non-telecentric lens designs allow the light to strike the sensor at an angle, which can lead to vignetting at the edge and corners of the sensor. The telecentric design of the lens minimizes vignetting.
UPC: 781904052820 In the Box computar 0.5x, 5 Megapixel Telecentric Lens in C-Mount for 1" Sensors (2.57" Working Distance) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar 0.5x, 5 Megapixel Telecentric Lens in C-Mount for 1" Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar TEC-V0565MPW Specs | Magnification | 0.5x | | Mount | C-Mount | | Coverage | 1"-type sensor
Diameter: 0.63" / 16 mm | | Working Distance | 2.57" / 65.2 mm | | Effective Aperture | f/9 | | Resolving Power | 12 µm | | Depth of Field | 2.88 mm | | Back Focal Length | 0.7" / 17 mm | | Flange Back Length | 0.69" / 17.526 mm | | Field of View | 1": 1.0 x 0.8" / 25.6 x 19.2 mm
2/3": 0.7 x 0.5" / 17.6 x 13.2 mm
1/1.8": 0.6 x 0.4" / 14.4 x 10.8 mm
1/2": 0.5 x 0.4" / 12.8 x 9.6 mm | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | Diameter x Length: 1.8 x 5.6" / 45 x 143.4 mm | | Weight | 6.7 oz / 189.0 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.4 x 2.5 x 2.3" |
