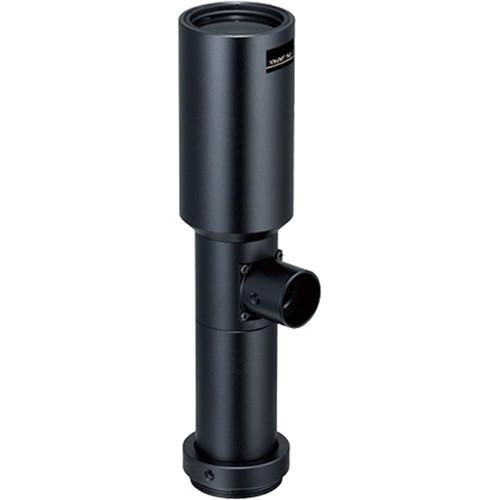

Product description This 0.8x, 2MP Telecentric Lens in C-Mount for 2/3" Sensor from Computar is designed for machine vision applications and incorporates a port for a coaxial lighting fixture (not included). It is a fixed focal length lens that resolves an image on 2/3" cameras with 2 megapixel sensors, and incorporates a C-Mount. Featuring a minimum working distance of 4.37", while providing a 0.8x magnification, the lens has low corner distortion of -0.027%. - Telecentric lenses are designed so that the light exiting the rear element is perpendicular to the sensor. Non-telecentric lens designs allow the light to strike the sensor at an angle, which can lead to vignetting at the edge and corners of the sensor. The telecentric design of the lens minimizes vignetting.
- This lens incorporates a port for a coaxial lighting device (not included). This setup enables you to illuminate the target area from the position of the lens itself, as opposed to setting up lights adjacent to your target.
In the Box computar 0.8x, 2MP Telecentric Lens with Coax Port in C-Mount for 2/3" Sensor (4.37" Distance) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar 0.8x, 2MP Telecentric Lens with Coax Port in C-Mount for 2 3" Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar TEC-M08110MPC Specs | Magnification | 0.8x | | Mount | C-Mount | | Coverage | 2/3" Type sensor
Diameter: 0.4" / 11 mm | | Working Distance | 4.37" / 111 mm | | Effective Aperture | f/10.2 | | Resolving Power | 8.8 µm | | Depth of Field | 0.05" / 1.31 mm | | Back Focal Length | 0.7" / 17mm | | Flange Back Length | 0.69" / 17.526 mm | | Field of View | 2/3": 0.43 x 0.32" / 11.00 x 8.20 mm
1/1.8": 0.35 x 0.26" / 8.90 x 6.60 mm
1/2": 0.31 x 0.24" / 8.00 x 6.00 mm
1/3": 0.24 x 0.18" / 6.00 x 4.50 mm | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | Diameter x Length: 1.18 x 4.96" / 30 x 126.1 mm | | Weight | 3.7 oz / 106 g |
