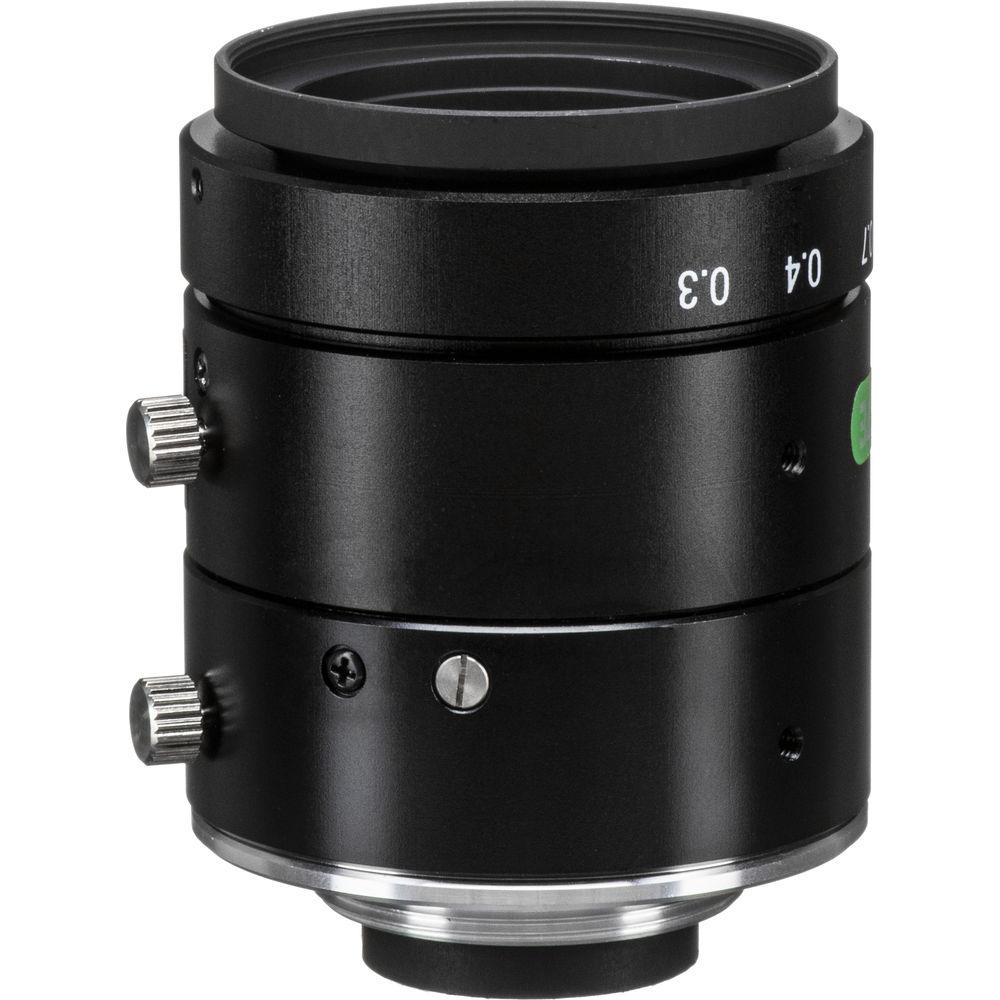

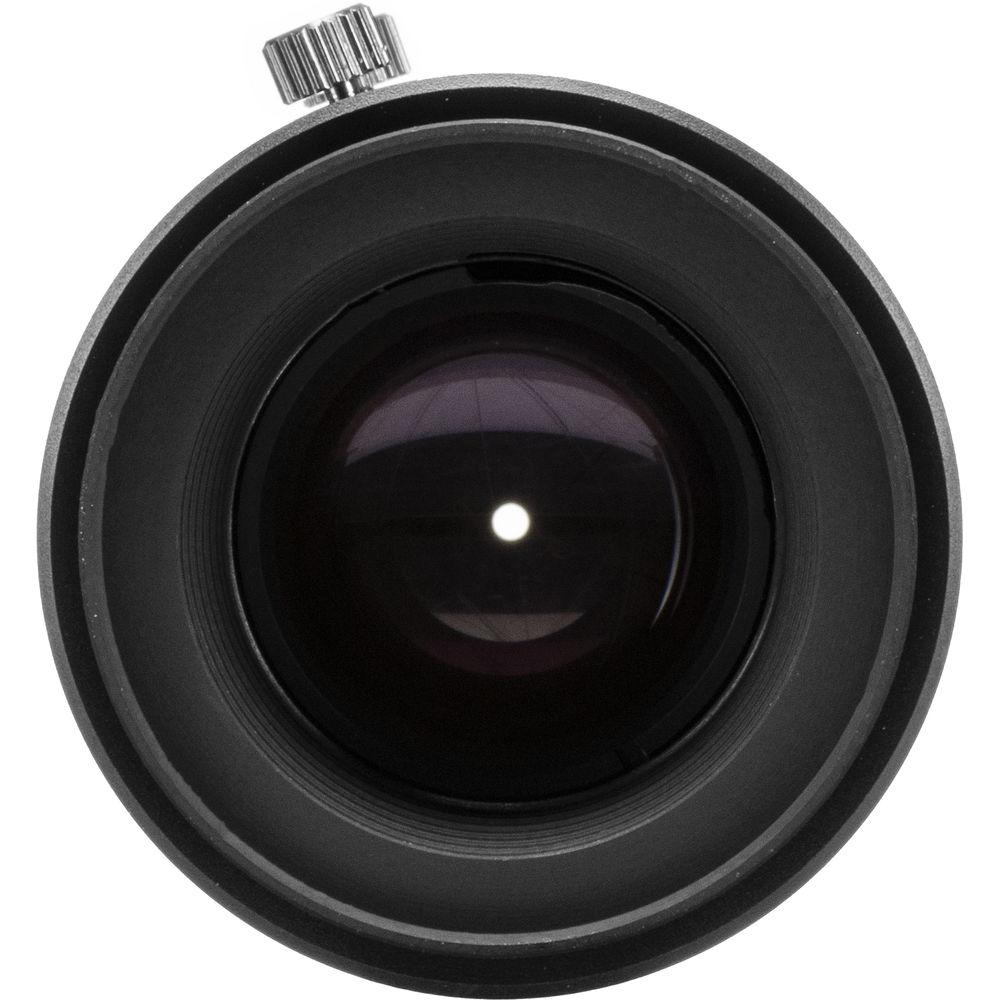

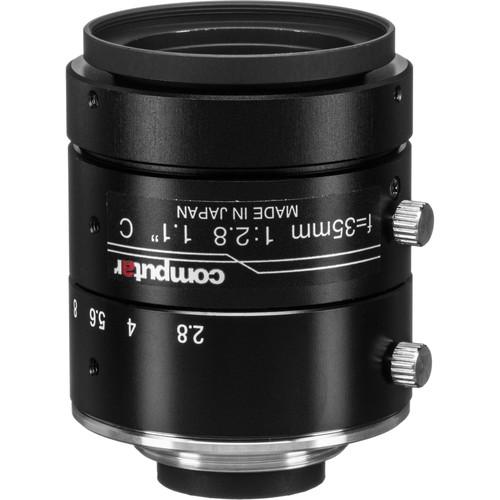

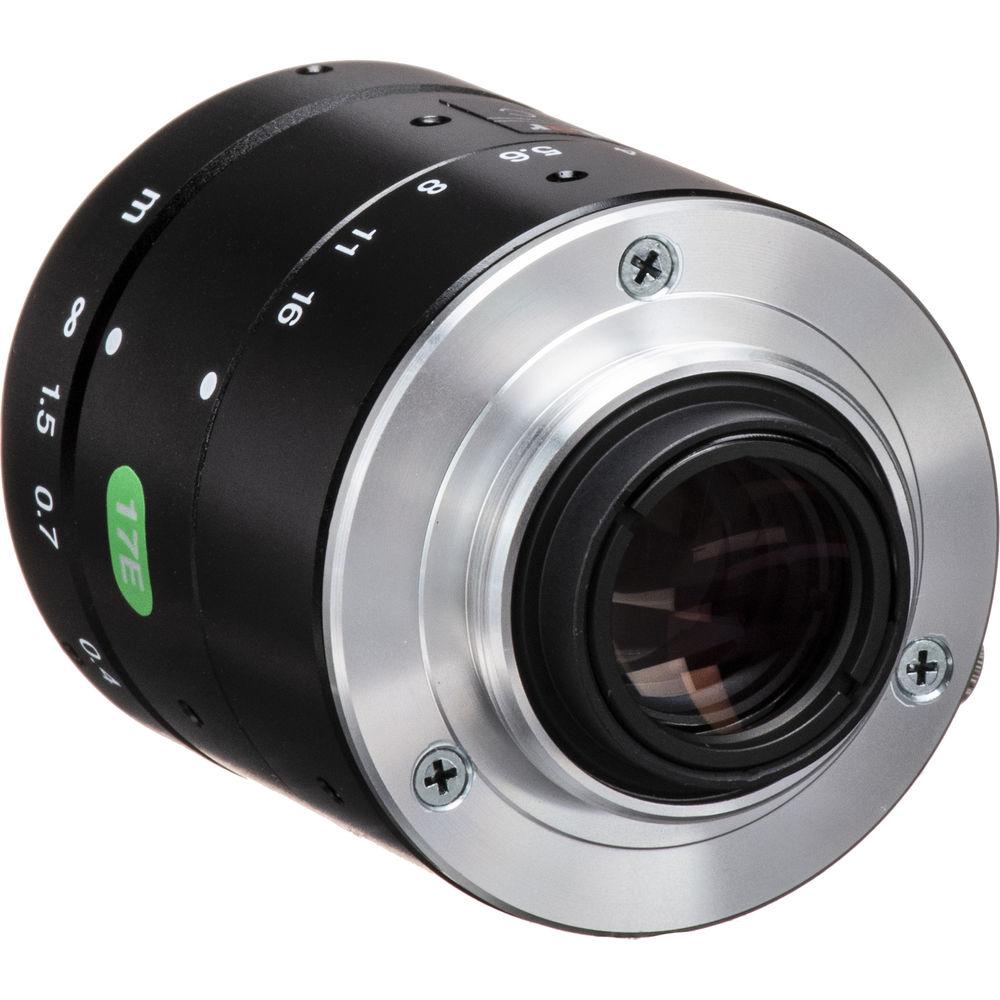

Product description This Computar 1.1" 35mm f/2.8 12MP Ultra Low Distortion Lens is designed for cameras with a C-Mount for use in a variety of applications. It has a fixed focal length of 35mm, and resolves an image on 1.1" cameras with 12MP sensors. Featuring a minimum working distance of just under 12", the lens focuses to infinity and incorporates both lockable iris and focus rings, so you can leave the lens set up and not have to worry about either ring changing over time. The front of the lens incorporates an M34.0 filter thread. - For machine vision and ITS applications
- The 2.8 aperture ensures the high resolution of this lens, even when wide open
- The lens works in temperatures from below freezing to over 100 degrees Fahrenheit
- The lens features lockable iris and focus rings, allowing you to set it up and feel secure that both focus and iris won't drift during normal use
UPC: 781904053544 In the Box computar 1.1" 35mm f/2.8 12MP Ultra Low Distortion Lens (C-Mount) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar 1.1" 35mm f 2.8 12MP Ultra Low Distortion Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar V3528-MPY Specs | Lens Mount | C | | Sensor Compatibility | 1.1" | | Focal Length | 35mm | | Back Focal Length | 11.7mm | | Aperture | f/2.8 to 16 | | Angle of View | 1.1" Sensor
Diagonal: 28.2°
Horizontal: 22.9°
Vertical: 16.9°
1" Sensor
Diagonal: 25.8°
Horizontal: 20.7°
Vertical: 15.6°
2/3" Sensor
Diagonal: 17.9°
Horizontal: 14.3°
Vertical: 10.8° | | Minimum Focus Distance | 11.81" / 0.30 m | | Distortion | 1.1": -0.1%
1": 0%
2/3": 0% | | Effective Diameter | Front: 0.82" / 20.9 mm
Rear: 0.56" / 14.3 mm | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Flange Back Length | 0.69" / 17.526 mm | | Filter Thread | M34 x 0.5 mm | Dimensions (
