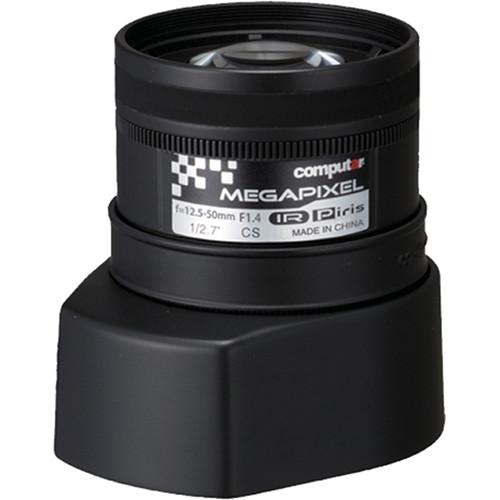

User Manual for computar A Series 3MP CS-Mount 12.5 to 50mm IR Corrected Varifocal P-Iris Lens Click to enlarge the picture
Contents of the user manual for the computar A Series 3MP CS-Mount 12.5
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar A Series 3MP CS-Mount 12.5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The A Series 3MP CS-Mount 12.5 to 50mm IR Corrected Varifocal P-Iris Lens from Computar is is designed for P-iris cameras. It allows a camera to capture images in 3.2 x 5.8mm (φ6.6mm) maximum format. The lens is compatible with 1/27" cameras and uses a CS-mount for mounting to your camera. -
- Precise focus adjustment
- Focus lock system
- IR corrected optics
- Corner brightness
- Compatible with Allied Vision Technology's GT1290 Series cameras
UPC: 781904050598 In the Box computar A Series 3MP CS-Mount 12.5 to 50mm IR Corrected Varifocal P-Iris Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar A Series 3MP CS-Mount 12.5 to 50mm IR Corrected Varifocal P-Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar AG4Z1214KCS-MPIR Specs | Focal Length | 12.5 to 50mm | | Maximum Aperture Ratio | 1:1.4 | | Image Format | Maximum: 3.2 x 5.8 mm (φ6.6 mm） | | Operation Range | Iris: f/1.4 to f/16C
Focus: 3.2' to infinity (1.0 m to infinity)
Zoom 12.5 to 50mm | | Control | Iris: Stepping Motor
Focus: Manual
Zoom: Manual | | Angle of View (D x H x V) | 1/2.7 type (16:9):
30.3 to 7.7° x 26.3 to 6.7° x 14.5 to 3.8°
1/2.7 type (4:3):
30.3 to 7.7° x 24.0 to 6.2° x 17.8 to 4.7° | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: φ 21.7mm
Rear: φ 9.1mm | | Back Focal Length | Tele: 7.3mm
Wide: 11.6mm | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS‐Mount | | Filter Size | M40.5 P=0.5mm | | Dimensions | φ1.8 x 2.3 x 2.2" (φ46 x 60 x 58.2 mm)
Cable Length: 12.2" (310 mm) | | Weight | 2.8 oz (81 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.4 x 3.0 x 2.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
