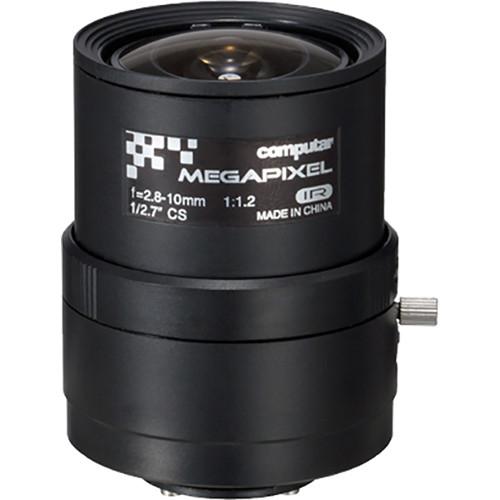

User Manual for computar A4Z2812CS-MPIR CS-Mount 2.8-10mm Manual Varifocal Lens Click to enlarge the picture
Contents of the user manual for the computar A4Z2812CS-MPIR CS-Mount 2.8-10mm Manual Varifocal
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar A4Z2812CS-MPIR CS-Mount 2.8-10mm Manual Varifocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The A4Z2812CS-MPIR CS-Mount 2.8-10mm Manual Varifocal Lens from computar is compatible with 1/2.7" cameras and uses a CS-mount for mounting to your camera. It captures images in 3.2 x 5.8 mm (Ø6.6 mm) format. It's equipped with manual focus, zoom, and iris control. Additionally, it delivers a 127.6-34.3° horizontal field of view. - Compatible with 1/2.7-type, 3MP sensors
- Improved focus lock system and IR-corrected optics
- Supports corner brightness
UPC: 781904051939 In the Box computar A4Z2812CS-MPIR CS-Mount 2.8-10mm Manual Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar A4Z2812CS-MPIR CS-Mount 2.8-10mm Manual Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar A4Z2812CS-MPIR Specs | Lens Mount | CS | | Sensor Compatibility | 1/2.7" (3 MP) | | Focal Length | 2.8 to 10mm | | Back Focal Length | 7.3mm | | Aperture | f/1.2 to 16 | | Angle of View | 1/2.7" Sensor
Diagonal: 154 to 39°
Horizontal: 127.6 to 34.3°
Vertical: 65 to 18.9° | | Minimum Focus Distance | 1.6' / 0.5 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Effective Diameter | Front: 1.06299212598425" / 27 mm
Rear: 0.381889763779528" / 9.7 mm | | IR Corrected | Yes | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Flange Back Length | 0.49" / 12.5 mm | | Dimensions (D x L) | 1.7 x 2.3" / 43.6 x 59 mm | | Weight | 2.2 oz / 63 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.4 x 2.9 x 2.4" |
