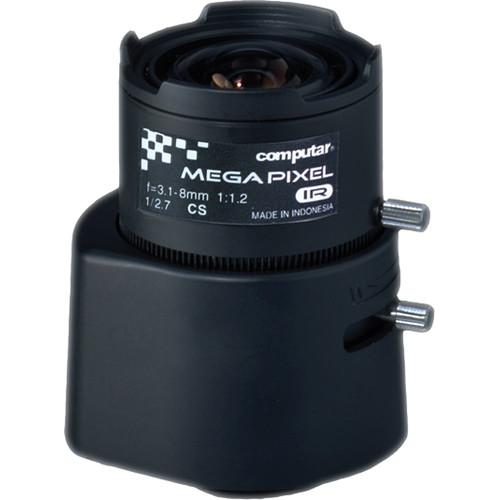

Product description The AG3Z3112FCS-MPIR 3 MP 3.1 to 8mm Varifocal IR Lens from computar has a focal length of 3.1 to 8mm, and is compatible with CS-mount cameras. UPC: 781904423330 In the Box computar AG3Z3112FCS-MPIR 3 MP 3.1 to 8mm Varifocal IR Lens Limited 3-Year Warranty Brochure PDF 233.4kbubfqxwyb Table of Contents
|
Upload User Manual
Have you got an user manual for the computar AG3Z3112FCS-MPIR 3 MP 3.1 to 8mm Varifocal IR Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar AG3Z3112FCS-MPIR Specs | Focal Length | 3.1 to 8 mm | | Aperture Ratio | 1:1.2 (maximum) | | Image Format | 3.2 x 5.8 mm (ø6.6 mm) | | Operation Range | Iris: F1.2 to F360C
Focus: 0.98' to infinity (0.3 m to infinity)
Zoom: 0.12 to 0.31" (3.1 to 8 mm) | | Control | Iris: DC Auto Iris
Focus / Zoom: Manual | | Angle of View | 1/2.7-type (16.9): 123.1 to 48.3° (D), 105.4 to 42.2° (H), 57.9 to 23.8° (V)
1/2.7-type (4.3): 123.1 to 48.3° (D), 95.9 to 38.7° (H), 71.0 to 29.1° (V)
1/3-type (4.3): 110.3 to 43.9° (D), 86.7 to 35.2° (H), 64.4 to 26.5° (V) | | Coil | Drive: 190 ohm / 68°F (20°C)
Control: 855 ohm / 68°F (20°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: ø20.9 mm
Rear: ø10.5 mm | | Back Focal Length | Tele / Wide: 0.30" (7.8 mm) | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS-mount | | Dimensions | ø1.45 x 1.89 x 2.16" (ø37 x 48.2 x 55 mm) | | Weight | 2.08 oz (59 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.2 x 2.7 x 2.5" |
