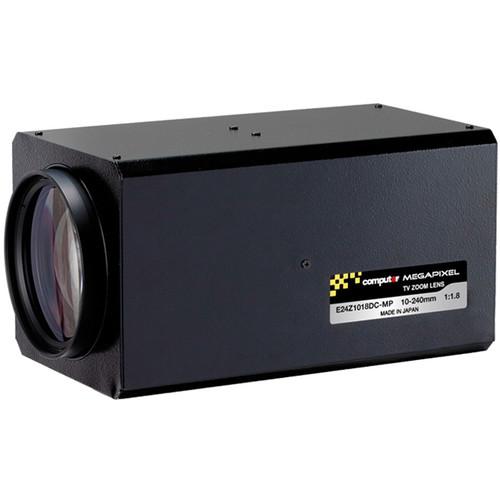

User Manual for computar C-Mount 10-240mm Varifocal Lens with Preset Click to enlarge the picture
Contents of the user manual for the computar C-Mount 10-240mm Varifocal Lens with
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar C-Mount 10-240mm Varifocal Lens with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description With a 24x optical zoom, the C-Mount 10-240mm Varifocal Lens with Preset is able to monitor large areas from a distance when used with a compatible camera (available separately). This C-mount 10-240mm varifocal lens features an f/1.8 aperture and DC auto iris control. Its motorized zoom lens is compatible with 1/1.8" sensors and 3MP cameras. A 5mm adapter (available separately) is required for use with a CS-mount camera. This lens features focus and zoom presets. - Compatible with 1/1.8" sensors and 3MP cameras
- 10-240mm lens with 24x zoom
- Motorized zoom and DC auto iris control
In the Box computar C-Mount 10-240mm Varifocal Lens with Preset Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar C-Mount 10-240mm Varifocal Lens with Preset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar E24Z1018PDC-MP Specs | Focal Length | 10-240mm | | Mount | C-mount (requires 5 mm adapter (available separately) for use with CS-mount cameras) | | Effective Lens Aperture | Front: 2.6" (66 mm)
Rear: 0.5" (13 mm) | | Aperture Ratio | 1:1.8 | | Back Focal Length | 0.55" (14.1 mm) | | Flange Back Length | 0.69" (17.53 mm) | | Maximum Image Circle | 0.35" (8.9 mm) | | Iris Range | f/1.8-500C | | Focus | 13.1' to infinity (4 m to infinity) | | Filter Size | M77 P = 0.04" (1 mm) | | Zoom | 10-240mm (24x) | | Tripod Screw Thread | 1/4"-20 | | Iris Control | DC auto iris | | Focus Control | Motorized | | Zoom Control | Motorized | | Field of View | 1/1.8" Type Sensor (4:3):
Diagonal: 48.5-2.2°
Horizontal: 39-1.7°
Vertical: 29.5-1.3°
1/2" Type Sensor (4:3):
Diagonal: 43.7-1.9°
Horizontal: 35.2-1.6°
Vertical: 26.5-1.2°
1/3" Type Sensor (4:3):
Diagonal: 33-1.5°
Horizontal: 26.5-1.2°
Vertical: 20-0.9° | | Supply Voltage | Focus/Zoom: 6 VDC | | Current | Focus/Zoom: 90 mA or less | | Response Time | Focus/Zoom: 6.5 s approximately | | Preset Potentiometer | Focus/Zoom: 5 kOhms VR | | Coil | Drive: 190 Ohms
Control: 1 kOhm | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 4 x 4.03 x 7.8" (101 x 102.4 x 198.2 mm) | | Weight | 4.54 lb (2.06 kg) |
