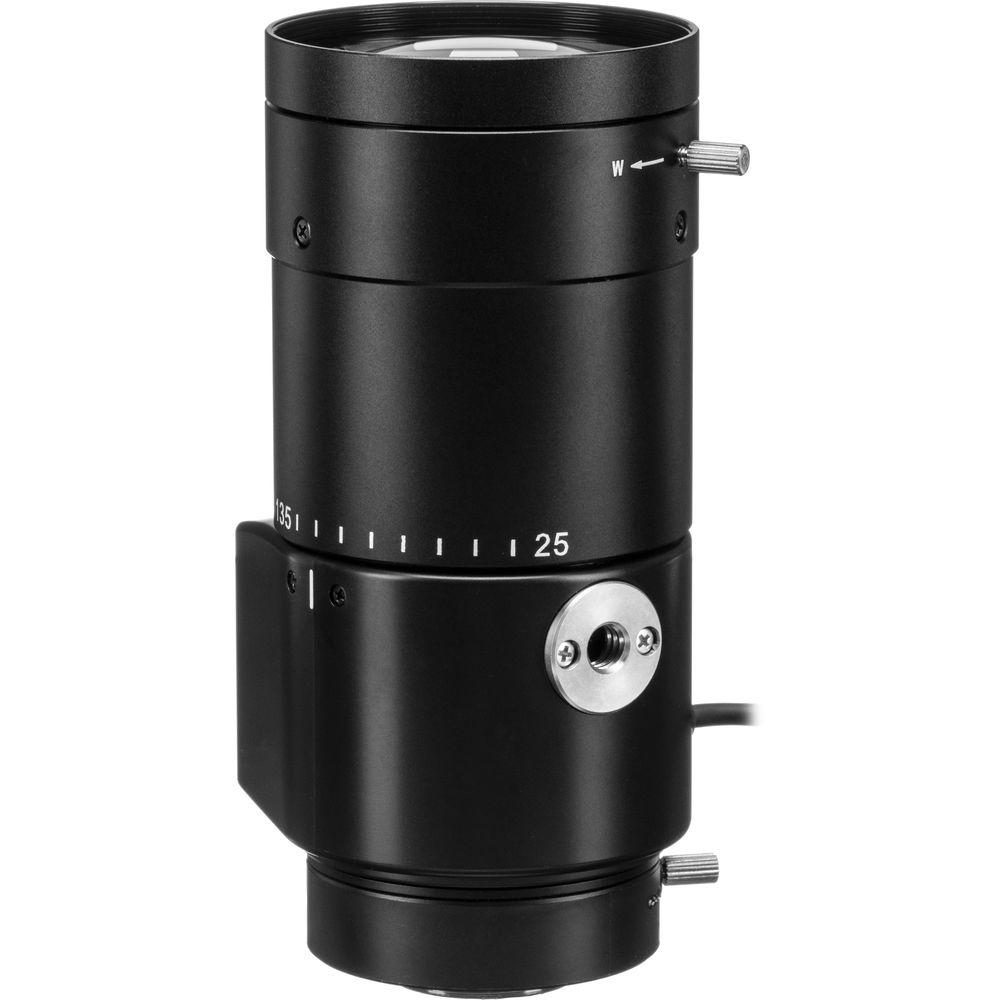

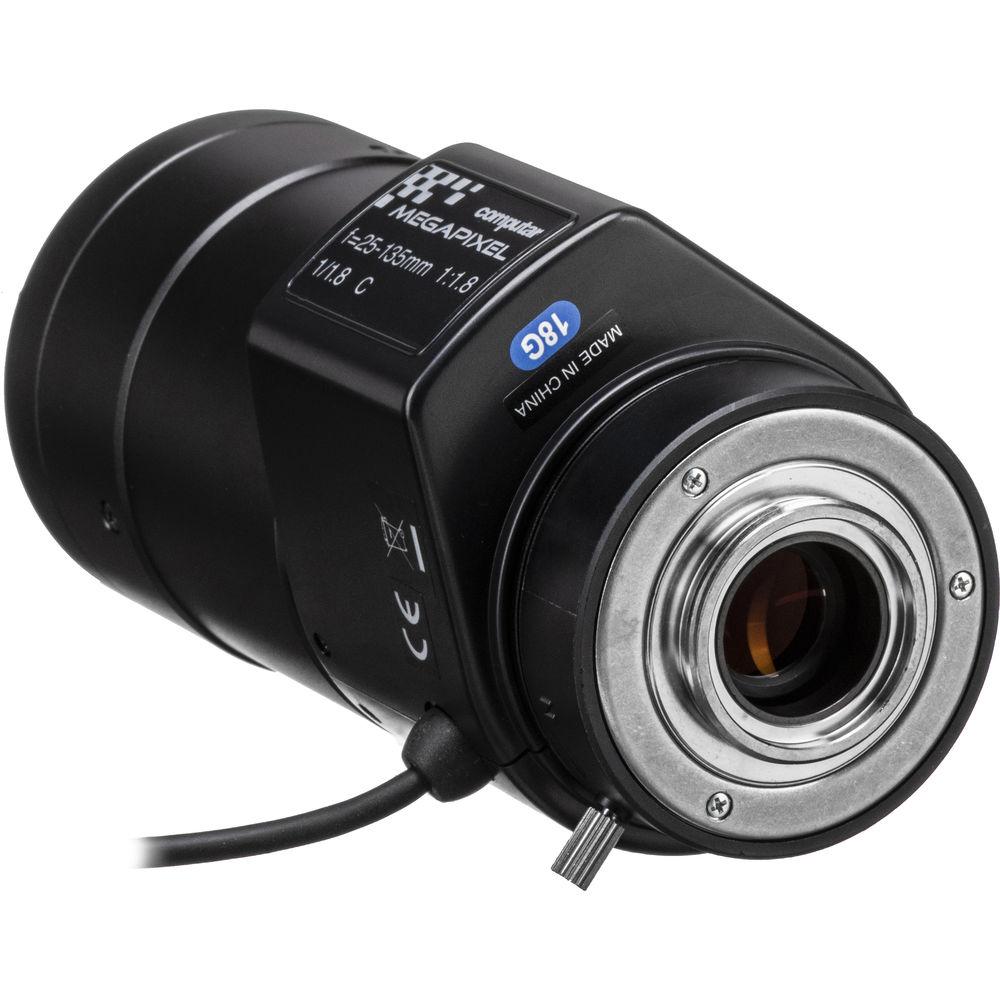

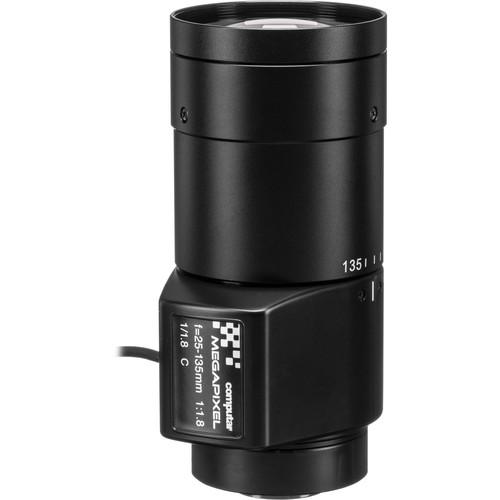

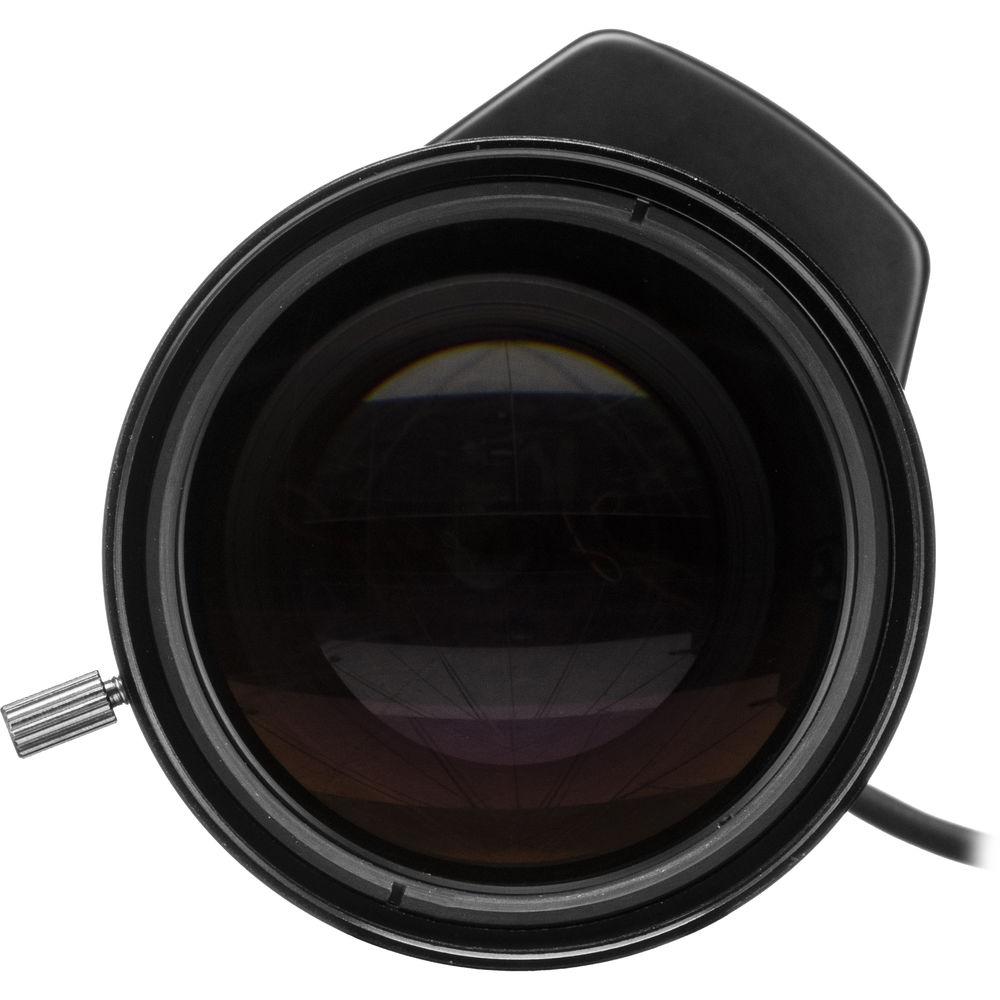

User Manual for computar C-Mount 25 to 135mm Varifocal Lens with DC Auto Iris Click to enlarge the picture
Contents of the user manual for the computar C-Mount 25 to 135mm Varifocal
- Product category: Industrial Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Industrial Lenses
 |
User manual for the computar C-Mount 25 to 135mm Varifocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar C-Mount 25 to 135mm Varifocal Lens with DC Auto Iris resolves up to 3MP and features both manual zoom and focus control. The lens mounts to cameras with a C-mount and covers sensors from 1/3 to 1/18". The 25 to 135mm varifocal lens permits you to adjust your magnification and the individual locks on the zoom and focus rings allow you to secure both so you can set you lens and lock it in place. The DC auto iris provides electronic exposure control by varying the mechanical iris from f/1.8 to closed. - Provides maximum sharpness and detail at more than 500 feet
- 3 Megapixel DC auto iris varifocal lens
- The lens works in temperatures from below freezing to over 100 degrees Fahrenheit
UPC: 781904053667 In the Box computar C-Mount 25 to 135mm Varifocal Lens with DC Auto Iris Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar C-Mount 25 to 135mm Varifocal Lens with DC Auto Iris in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar EG5Z2518FC-MP Specs | Mount | C-Mount | | Focal Length | 25 to 135mm | | Focus Range | 4.92' to ∞ / 1.50 m to ∞ | | Iris Range | f/1.8 to 360C | | Effective Lens Aperture | Front Diameter: 1.75" / 44.5 mm
Rear Diameter: 0.48" / 12.2 mm | | Angle of View | 1/1.8" Type
Wide: 20.7° (16.2 x 12.0°)
Tele: 3.9° (3.1 x 2.4°)
1/2" Type
Wide: 18.4° (14.5 x 10.8°)
Tele: 3.5° (2.8 x 2.1°)
1/3" Type
Wide: 13.6° (10.8 x 8.1°)
Tele: 2.6° (2.1 x 1.6°) | | Back Focal Length | Wide: 0.65" / 16 mm
Tele: 0.47" / 12 mm | | Flange Back Length | 0.69" / 17.526 mm | | Filter Size | M52 x 0.75 | | Auto Iris Coil | Drive: 190 Ohms
Control: 1000 Ohms | | Tripod Mounting Thread | 1/4"-20 | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions (Ø x H x L) | 2.13 x 2.56 x 4.65" / 5.4 x 6.5 x 11.8 cm | | Weight | 14.2 oz / 402.0 g | | | | Package Weight | 1.015 lb | | Box Dimensions (LxWxH) | 5.8 x 3.05 x 2.95" |
