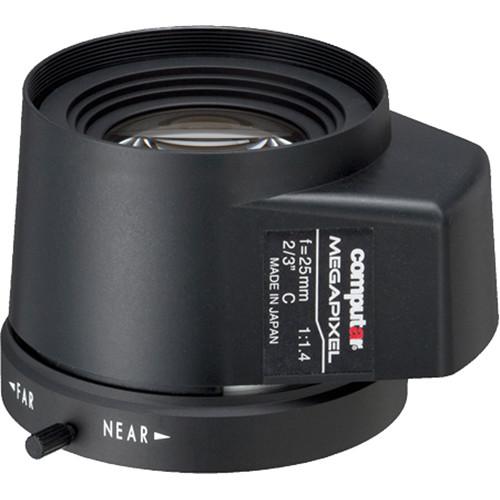

User Manual for computar C-Mount 25mm f 1.4 5MP Auto Iris Lens with DC Drive Click to enlarge the picture
Contents of the user manual for the computar C-Mount 25mm f 1.4 5MP
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar C-Mount 25mm f 1.4 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The C-Mount 25mm f/1.4 5MP Auto Iris Lens from computar compatible with 2/3"-type 5MP cameras. It captures images in a 6.6 x 8.8mm (Ø11mm) format, and it features manual focus and DC Iris control. The lens uses a C-mount for mounting to your camera. UPC: 781904051120 In the Box computar C-Mount 25mm f/1.4 5MP Auto Iris Lens with DC Drive Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar C-Mount 25mm f 1.4 5MP Auto Iris Lens with DC Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar MG2514FC-MP Specs | Imager Size | 2/3" | | Mount Type | C-mount | | Focal Length | 25mm | | Aperture | f/1.4 | | Iris Operation | DC Auto Iris; F1.4 ‐ F360C | | Focus Operation | Manual; 3.3' / 1.5 m to infinity | | Angle of View | 2/3" Type:
24.9° (D), 20.0° (H), 15.1° (V)
1/2" Type:
18.2° (D), 14.6° (H), 11.0° (V)
1/3" Type:
13.7° (D), 11.0° (H), 8.2° (V) | | Coil | Drive: 190 Ohms
Control: 1000 Ohms | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Effective Lens Aperture | Front: Ø23.4mm
Rear: Ø14.6mm | | Filter Size | 40.5 x 0.5 | | Back Focal Length | 13.3mm | | Flange Back Length | 17.526 mm | | Dimensions | Ø1.6 x 2.27 x 1.5" / Ø41.7 x 57.8 x 37.4 mm | | Weight | 3.6 oz / 102.2 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 3.2 x 2.8 x 2.4" |
