User Manual for computar CS-Mount 3.5-10.5mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the computar CS-Mount 3.5-10.5mm Varifocal Lens
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
 |
User manual for the computar CS-Mount 3.5-10.5mm Varifocal Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|

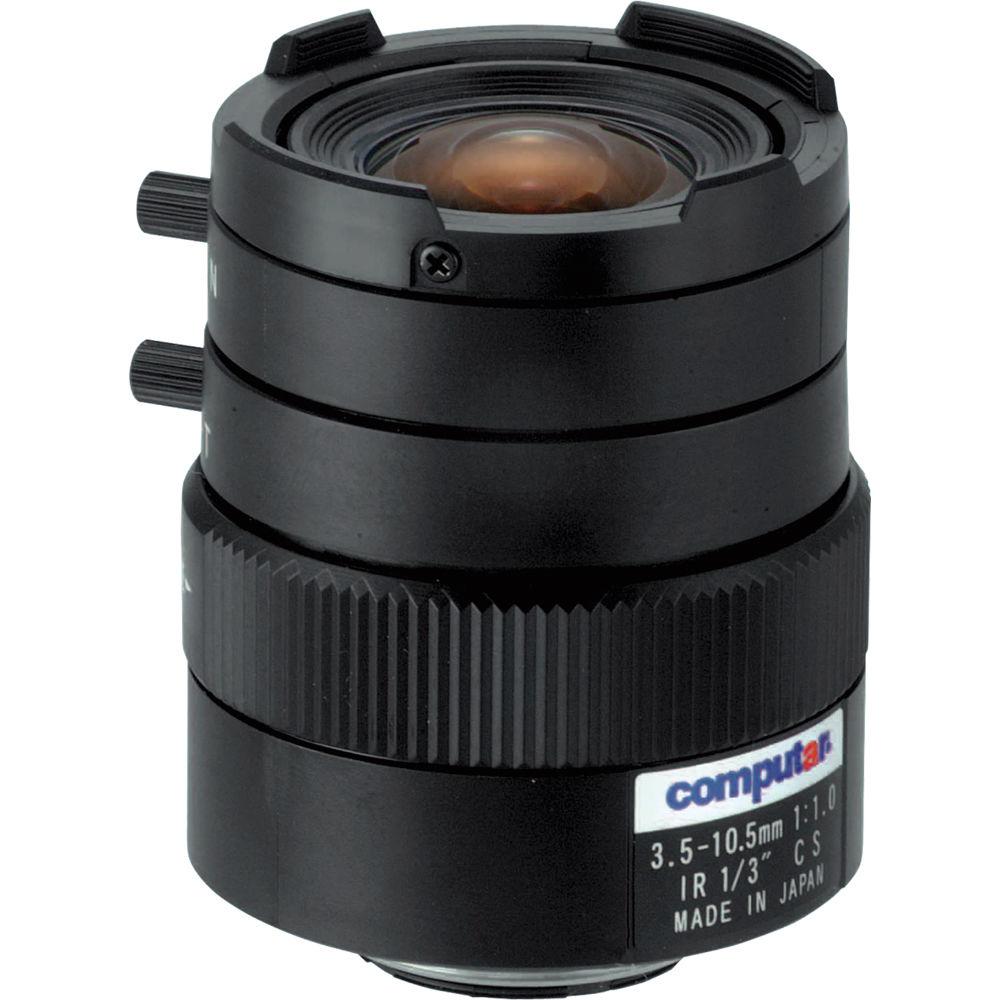

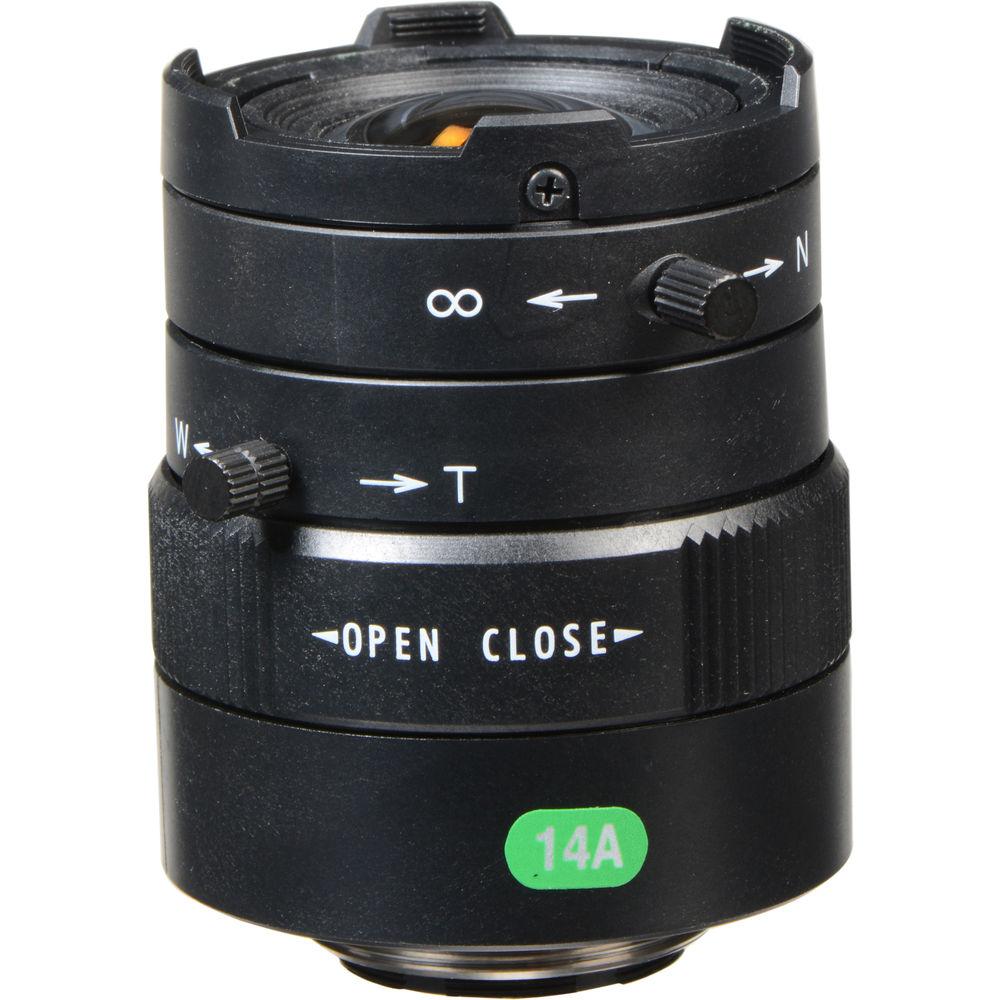

Product description The CS-Mount 3.5-10.5mm Varifocal Lens from computar is designed for day/night cameras with 1/3” format sensors. The lens facilitates easy focal length adjustments, enabling you to change the focal length without having to move your camera from its installation point. With an aperture of f/1.0 to f/16C, the lens is suitable for surveillance in low-light as well as bright light conditions. Furthermore, this IR-corrected lens captures clear images, eliminating focus shift and infrared bleed. - Designed for CS-mount cameras with 1/3" sensors
- 3.5-10.5mm focal length to clearly capture scenes requiring different focal settings
- Easy focal length adjustments
- Aperture of f/1.0 to f/16C enables performance in low-light as well as bright light conditions
- Manual iris for correct exposures
- IR correction minimizes focus shift and IR bleed, making the lens suitable for 24-hour surveillance operations
- Aspherical lens surface provides corner-to-corner sharpness at all aperture settings
UPC: 781904300617 In the Box computar CS-Mount 3.5-10.5mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar CS-Mount 3.5-10.5mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar T3Z3510CS-IR Specs | Focal Length | 3.5-10.5mm | | Aperture Ratio | 1:1.0 | | Image Format | 4.8 x 3.6 mm (ø6 mm) | | Operation Range | Iris: f/1.0 to f/16C
Focus: 0.98' to infinity (0.3 m to infinity) | | Control | Iris / Focus / Zoom: Manual | | Angle of View | 1/3-type: 108.2° to 34.2° (D), 81.8° to 27.2° (H), 59.2° to 20.4° (V) | | Object Dimensions at M.O.D. | At 3.5 mm: 20.47 x 13.42" (520 x 341 mm)
At 10.5 mm: 5.70 x 4.25" (145 x 108 mm) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Effective Lens Aperture | Front: ø18.6 mm
Rear: ø10.2 mm | | Back Focal Length | Tele: 16.3mm
Wide: 8.0mm | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS-mount | | Dimensions | ø1.63 x 1.92" (ø41.6 x 48.8 mm) | | Weight | 2.22 oz (63 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.2 x 2.9 x 2.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
