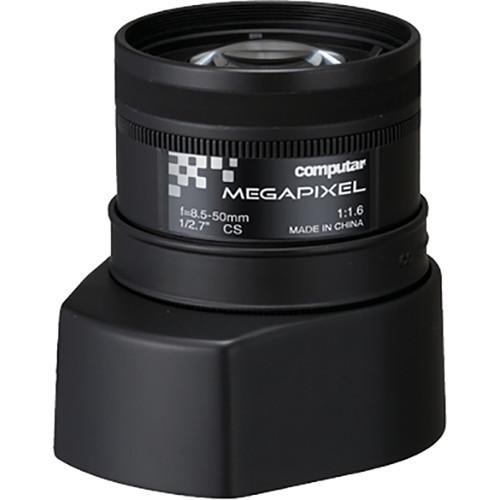

Product description The CS-Mount 3MP 8.5-50mm f/1.6 DC Auto Iris Lens from Computar is compatible with 1/2.7"-format 3MP cameras. It captures images at 3.2 x 5.8mm (Ø6.6mm), and it features manual focus and DC auto iris control. The lens uses a CS-mount for mounting to your camera. - Features precise focus adjustment
- Features improved focus lock system
- Supports corner brightness
UPC: 781904051885 In the Box computar CS-Mount 3MP 8.5-50mm f/1.6 DC Auto Iris Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar CS-Mount 3MP 8.5-50mm f 1.6 DC Auto Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar AG6Z8516FCS-MP Specs | Imager Size | 1/2.7" | | Mount Type | CS-mount | | Focal Length | 8.5 to 50mm | | Aperture | f/1.6 | | Image Format | Maximum: 3.2 x 5.8 mm (Ø6.6 mm) | | Operation Range | Iris: F1.6 ‐ F360C
Focus: 3.3' / 1 m to infinity
Zoom: 8.5 to 50mm | | Control | Iris: DC auto iris
Focus: Manual
Zoom: Manual | | Angle of View | 1/2.7" Type (16:9)
D: 43.7 to 7.7°
H: 38.0 to 6.8°
V: 21.3 to 3.9°
1/2.7" Type (4:3)
D: 43.7 to 7.7°
H: 34.8 to 6.2°
V: 26.0 to 4.7°
1/3" Type (4:3)
D: 39.7 to 7.1°
H: 31.6 to 5.7°
V: 23.7 to 4.3° | | Effective Lens Aperture | Front: Ø21.7mm
Rear: Ø9.8mm | | Back Focal Length | Tele: 9.4mm
Wide: 10.7mm | | Flange Back Length | 12.5 mm | | Filter Size | M40.5, P=0.5 mm | | Coil | Drive: 190 Ohms at 68°F / 20°
Control: 1310 Ohms at 68°F / 20° | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 1.8 x 2.4 x 2.3" / 46 x 60 x 58.2 mm | | Weight | 2.8 oz / 80 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.4 x 3.0 x 2.5" |
