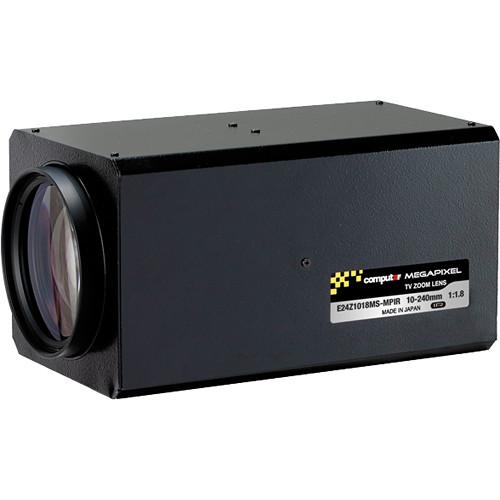

User Manual for computar E24Z1018-MPIR Series 1 1.8" 3MP C-Mount 10 to 240mm 24x 3 Motors Zoom IR Lens with Spot Filter Click to enlarge the picture
Contents of the user manual for the computar E24Z1018-MPIR Series 1 1.8" 3MP
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar E24Z1018-MPIR Series 1 1.8" 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar E24Z1018-MP Series 3MP 10 to 240mm Lens is a 24x motorized zoom lens designed for C-mount cameras with 1/1.8" format sensors. This IR corrected day/night lens captures images while eliminating focus shift and infrared bleed. It features individual motors for iris, zoom, and focus, which can be remotely controlled. An aperture of f/1.8 to 500C was designed to provide enhanced performance in low light and in bright conditions. In addition, this lens features a built-in spot filter (a neutral density filter) that attenuates the amount of light transmission from bright objects. In the Box computar E24Z1018-MPIR Series 1/1.8" 3MP C-Mount 10 to 240mm 24x 3 Motors Zoom IR Lens with Spot Filter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar E24Z1018-MPIR Series 1 1.8" 3MP C-Mount 10 to 240mm 24x 3 Motors Zoom IR Lens with Spot Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar E24Z1018MS-MPIR Specs | Imager Size | 1/1.8" | | Mount Type | C | | Focal Length | 10 to 240mm | | Aperture | f/1.8 to 500C | | Effective Aperture | Front: φ66 mm
Rear: φ13 mm | | Maximum Image Circle | Ø 0.35" (Ø 8.9 mm) | | Iris Operation | Motorized | | Focus Operation | Motorized | | Zoom Operation | Motorized | | Angle of View | 1/1.8" Type (4:3):
48.4 to 2.2°
39 to 1.7°
29.5 to 1.3°
1/2" Type (4:3):
43.7 to 2°
35.2 to 1.6°
26.5 to 1.2°
1/3" Type (4:3):
33 to 1.5°
26.5 to 1.2°
19.9 to 0.9° | | Minimum Object Distance (M.O.D.) | 13.1' (4 m) | | Back Focal Length | 14.1 mm | | Flange Back Length | 17.526 mm | | Filter Size | M77 P = 1 mm | | Tripod Screw Thread | 1/4"-20 UNC | | Supply Voltage | Iris, Focus, & Zoom: 6 VDC | | Current | Iris, Focus, & Zoom: 90 mA or less | | Response Time | Auto Iris: Approximately 4.5 sec
Focus & Zoom: Approximately 6.5 sec | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 3.98 x 4.03 x 7.8" (101 x 102.4 x 198.2 mm) | | Weight | 4.45 lb (2.02 kg) |
