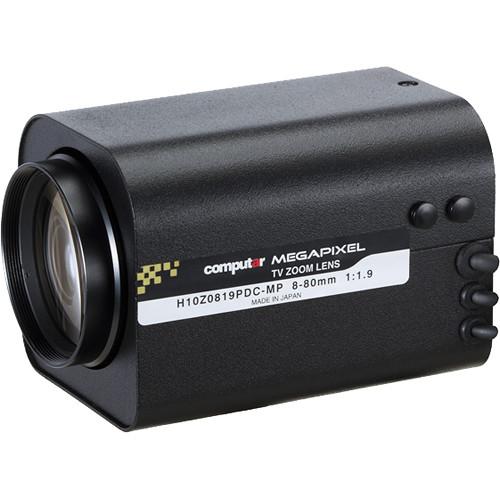

User Manual for computar H10Z0819-MP Series 1 2" 2MP C-Mount 8 to 80mm 10x DC Auto-Iris Zoom Lens with Spot Filter with Preset Click to enlarge the picture
Contents of the user manual for the computar H10Z0819-MP Series 1 2" 2MP
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar H10Z0819-MP Series 1 2" 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar H10Z0819-MP Series 2MP 8 to 80mm Lens is a 10x motorized zoom lens designed for C-mount cameras with 1/2" format sensors. It features an auto iris for use with DC controlled cameras. It also has presets for focus and zoom. In addition, this lens comes with a built-in spot filter (a neutral density filter) that attenuates the amount of light transmission from bright objects. UPC: 781904051984 In the Box computar H10Z0819-MP Series 1/2" 2MP C-Mount 8 to 80mm 10x DC Auto-Iris Zoom Lens with Spot Filter with Preset Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar H10Z0819-MP Series 1 2" 2MP C-Mount 8 to 80mm 10x DC Auto-Iris Zoom Lens with Spot Filter with Preset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar H10Z0819PDC-MP Specs | Imager Size | 1/2" | | Mount Type | C | | Focal Length | 8 to 80mm | | Aperture | f/1.9 to 1000 (with Spot filter) | | Effective Aperture | Front: φ40 mm
Rear: φ13.2 mm | | Image Format | Max 6.4 x 4.8 mm (φ8 mm) | | Iris Operation | DC auto iris | | Focus Operation | Motorized | | Zoom Operation | Motorized (10x) | | Angle of View | 1/2" Type (4:3):
54.10 to 5.05°
44.81 to 4.45°
34.62 to 3.38°
1/3" Type (4:3):
42.26 to 4.17°
34.62 to 3.38°
26.39 to 2.55°
1/4" Type (4:3):
32.57 to 3.17°
26.39 to 2.55°
20 to 1.92° | | Minimum Object Distance | 8.2' (2.5 m) | | Back Focal Length | 16.53 mm | | Flange Back Length | 17.526 mm | | Object Dimensions at M.O.D. | 1448 x 1951 mm at 8mm
137 x 187 mm at 80mm | | Filter Size | M46 P=0.75 mm | | Preset Potentiometer | 10 kOhms VR | | Coil | Drive: 190 Ohms
Control: 1,150 Ohms | | Tripod Screw Thread | 1/4"-20 UNC | | Supply Voltage | Focus & Zoom: 6 to 12 VDC | | Current | Focus & Zoom: 60 mA or less | | Response Time | Focus: Approximately 6.5 sec (with 8 V input)
Zoom: Approximately 7 sec (with 8 V input) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 2.6 x 2.6 x 4.1" (65 x 67 x 104.5 mm) | | Weight | 20.8 oz (590 g) |
