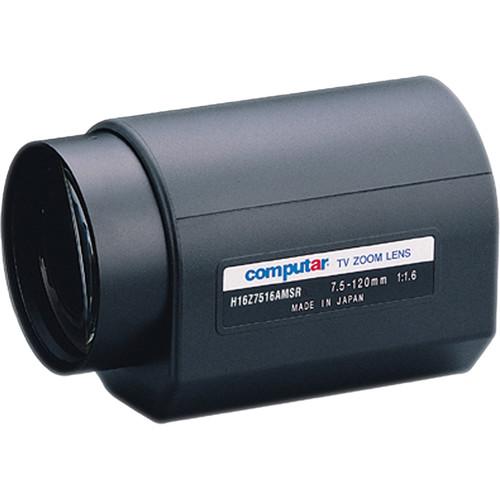

User Manual for computar H16Z7516 Series 1 2" C-Mount 7.5 to 120mm 16x Video Auto-Iris Day Night Motorized Zoom Lens with Spot Filter Click to enlarge the picture
Contents of the user manual for the computar H16Z7516 Series 1 2" C-Mount
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar H16Z7516 Series 1 2" C-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The H16Z7516 Series 1/2" C-Mount 7.5 to 120mm Lens from computar is 16x motorized zoom lens designed for C-mount cameras with 1/2" format sensors. It features an auto iris lens with a manual override that enables manual control from remote locations. In addition, this lens comes with a built-in spot filter (a neutral density filter) that attenuates the amount of light transmission from bright objects. This IR corrected lens minimizes light dispersion and as a result, refocusing is not required when used at night with IR lighting. It also features a multi-coating on all lens elements that ensures more light is transmitted to the IR region, providing clear pictures when used at night with day/night cameras or ultra-high sensitivity cameras. This lens is suitable for applications requiring long distance surveillance in areas like parking lots or highways where variable focal length and remote control are required. In the Box computar H16Z7516 Series 1/2" C-Mount 7.5 to 120mm 16x Video Auto-Iris Day/Night Motorized Zoom Lens with Spot Filter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar H16Z7516 Series 1 2" C-Mount 7.5 to 120mm 16x Video Auto-Iris Day Night Motorized Zoom Lens with Spot Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar H16Z7516AMSR-IR Specs | Imager Size | 1/2" | | Mount Type | C | | Focal Length | 7.5 to 120mm | | Focal Range | 1.5 m to infinity | | Aperture | f/1.6 to 560C | | Effective Aperture | Front: φ68 mm
Rear: φ14.3 mm | | Image Format | Max 6.4 x 4.8 mm (φ8 mm) | | Iris Operation | Video auto iris / manual override | | Focus Operation | Motorized | | Zoom Operation | Motorized (16x) | | Angle of View | 1/2" Type:
58.6 to 3.9°
47.0 to 3.1°
35.4 to 2.4°
1/3" Type:
44.1 to 2.9°
35.4 to 2.4°
26.6 to 1.7°
1/4" Type:
33.2 to 2.2°
26.6 to 1.7°
19.9 to 1.3° | | Minimum Object Distance | 4.9' (1.5 m) | | Back Focal Length | 14 mm | | Flange Back Length | 17.526 mm | | Object Dimensions at M.O.D. | 130.4 x 95.7 cm at 7.5mm
8.1 x 6.3 cm at 120mm | | Filter Size | M77 P=0.75 mm | | Tripod Screw Thread | 1/4"-20 UNC | | Supply Voltage | Auto Iris: 8.5 to 16 VDC
Focus & Zoom: 8 VDC | | Current | Auto Iris: 50 mA or less
Focus: 45 mA or less
Zoom: 35 mA or less | | Response Time | Auto Iris: Approximately 2 sec
Focus & Zoom: Approximately 3.5 sec | | Light Weighting Method | Adjustable between average to peak (to be Set at Average at Factory) | | Remote Control | Manual Override | | Input Signal | Video signal | | Accuracy | Iris Accuracy: ±15% at video signal level | | Sensitivity Adjustment | 0.5 to 1 V p-p (video signal) | | Input Impedance | High impedance | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 3.2 x 3.8 x 6.4" (82 x 97.4 x 161.5 mm) | | Weight | 2.61 lb (1.19 kg) |
