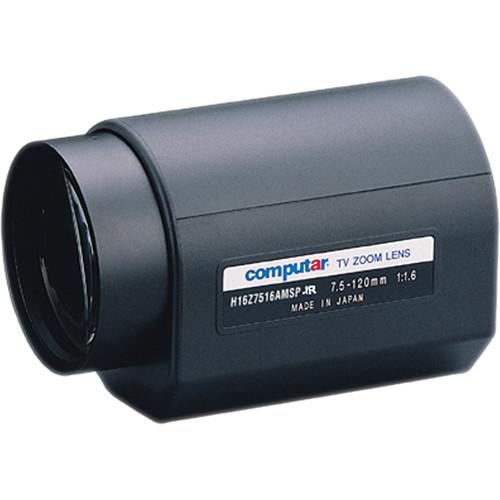

User Manual for computar H16Z7516AMSP-IR 1 2" Auto-Iris with Spot & Preset Lens Click to enlarge the picture
Contents of the user manual for the computar H16Z7516AMSP-IR 1 2" Auto-Iris with
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar H16Z7516AMSP-IR 1 2" Auto-Iris with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar H16Z7516AMSP-IR 1/2" Auto-Iris with Spot & Preset Lens (7.5 to 120mm) allows you to control focal length, iris, and focus via a lens controller. It is suitable for applications requiring long distance surveillance in parking lots, highways where variable focal length and remote control are required. In the Box computar H16Z7516AMSP-IR 1/2" Auto-Iris with Spot & Preset Lens (7.5 to 120mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar H16Z7516AMSP-IR 1 2" Auto-Iris with Spot & Preset Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar H16Z7516AMSP-IR Specs | Focal Length | 7.5 to 120 mm | | Maximum Aperture Ratio | 1:1.6 | | Image Format | 0.25 x 0.19" / 6.4 x 4.8 mm (ø8 mm) | | Operation Range | Iris: F1.6 to F560C Focus: 4.92' to infinity (1.5 m to infinity) Zoom: 0.29 to 4.72" (7.5 to 120 mm) | | Control | Iris: Video auto-iris Focus/Zoom: Motorized | | Object Dimensions at M.O.D. | 7.5 mm: 51.34 x 37.68" (130.4 x 95.7 cm) 120 mm: 3.19 x 2.48" (8.1 x 6.3 cm) | | Angle of View | 58.6 to 3.9° (D), 47 to 3.1° (H), 35.4 to 2.4° (V) | | Supply Voltage | 8.5 to 16 VDC | | Current | 35 mA or less | | Response Time | Approximately 2 seconds | | Light Weighting Method | Adjustable between average - peak | | Remote Control | Level remote (option) | | Input Signal | Video signal (V. or V.S) | | Accuracy | ±15% at video signal level | | Sensitivity Adjustment | 0.5 to 1.0 Vpp (video signal) | | Input Impedance | High impedance | | Effective Lens Aperture | Front: ø68 mm Rear: ø14.3 mm | | Back Focal Length | 14 mm | | Flange Back Length | 17.53 mm | | Mount | C-mount | | Filter Size | M77 P = 0.75 mm | | Tripod Mounting Screw | 1/4 - 20UNC | | Certifications | CE, RoHS | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 3.23 x 3.83 x 6.36" (82 x 97.4 x 161.5 mm) | | Weight | 41.62 oz (1180 g) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 6.36 x 3.83 x 3.23" |
