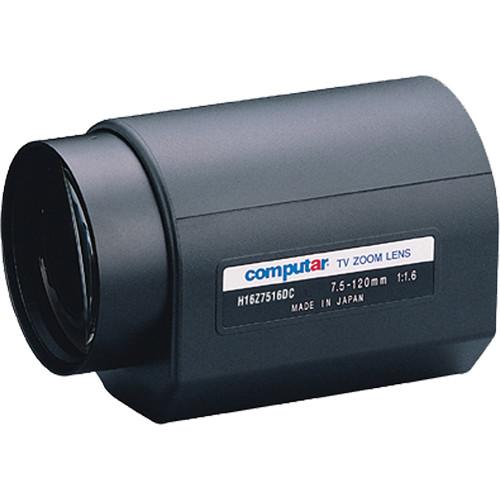

User Manual for computar H16Z7516PDC C-Mount 7.5 to 120mm f1.6 16x 1 2" Motorized Zoom Lens Click to enlarge the picture
Contents of the user manual for the computar H16Z7516PDC C-Mount 7.5 to 120mm
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar H16Z7516PDC C-Mount 7.5 to 120mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The H16Z7516PDC C-Mount 7.5 to 120mm F1.6 16x 1/2" Motorized Zoom Lens from computar allows you to remotely control the focal length, iris, and focus in a camera, by using a lens controller (sold separately). It is designed to be used in situations where variable focal length and remote control are required. This Lens is suitable for applications requiring long-distance surveillance in parking lots, highways, etc. In the Box computar H16Z7516PDC C-Mount 7.5 to 120mm f1.6 16x 1/2" Motorized Zoom Lens Limited 3-Year Warranty Brochure PDF 409.6kbwtabrdszcbxsxz Table of Contents
|
Upload User Manual
Have you got an user manual for the computar H16Z7516PDC C-Mount 7.5 to 120mm f1.6 16x 1 2" Motorized Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar H16Z7516PDC Specs | Focal Length | 7.5 to 120 mm | | Maximum Aperture Ratio | 1:1.6 | | Image Format | 6.4 x 4.8 mm (ø8 mm) | | Operation Range | Iris: F 1.6 to F 560C
Focus: 4.9' (1.5 m to Infinity)
Zoom: 0.29 to 4.72" (7.50 to 120.00 mm) | | Control | Iris: DC auto iris
Focus: Motorized, preset
Zoom: Motorized, preset | | Object Dimensions at M.O.D. | Minimum: 0.29" (7.50 mm): 50.86 x 37.59" (129.20 x 95.50 cm)
4.72" (120.00 mm): 3.30 x 2.48" (8.40 x 6.30 cm) | | Angle of View | 1/2" Type
D: 57.2 to 3.9°
H: 46.6 to 3.2°
V: 35.3 to 2.4° | | Coil | Drive: 190 Ω
Control: 1,000 Ω | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: Ø2.61" (Ø66.40 mm) Rear: Ø0.53" (Ø13.50 mm) | | Back Focal Length | 14 mm | | Flange Back Length | 0.68" (17.52 mm) | | Mount | C | | Filter Size | M72 P=0.02" (0.75 mm) | | Tripod | Screw: 1/4 to 20 UNC | | Compliance | CE & ROHS | | Dimensions (W x H x D) | 3.22 x 3.79 x 5.86" (82.00 x 96.40 x 149.00 mm) | | Weight | 37.03 oz (1050.00 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
