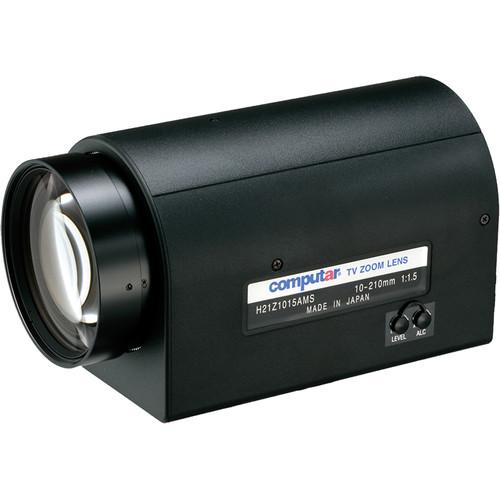

Product description The computar H21Z1015AMSP 10-210mm Lens is a 21x motorized zoom lens designed for C-mount cameras with 1/2"-format sensors. It features an auto iris that supports video controlled cameras. It also has presets for focus and zoom. In addition, this lens features a built-in spot filter (a neutral density filter) that attenuates the amount of light transmission from bright objects. UPC: 781904423019 In the Box computar H21Z1015AMSP 1/2" C-Mount 10-210mm Video Auto-Iris 21x Motorized Zoom Lens with Spot Filter & Preset Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar H21Z1015AMSP 1 2" C-Mount 10-210mm Video Auto-Iris 21x Motorized Zoom Lens with Spot Filter & Preset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar H21Z1015AMSP Specs | Imager Size | 1/2" | | Mount Type | C-mount | | Focal Length | 10 to 210mm | | Aperture | f/1.5 to f/1000 (with ND filter) | | Effective Aperture | Front: φ65 mm
Rear: φ11.5 mm | | Maximum Image Circle | 6.4 x 4.8 mm (φ8 mm) | | Iris Operation | Video auto iris | | Focus Operation | Motorized | | Zoom Operation | Motorized (21x) | | Angle of View | 1/2" Type:
44.2° to 2.7°
35.6° to 1.78°
26.8° to 1.35°
1/3" Type:
33.4° to 1.67°
26.8° to 1.35°
20.2° to 1.02°
1/4" Type:
25° to 1.25°
20.2° to 1.02°
15.2° to 0.77° | | Minimum Object Distance (M.O.D.) | 6.6' / 2.0 m | | Back Focal Length | 13.91 mm | | Flange Back Length | 17.526 mm | | Object Dimensions at M.O.D. | 47.4 x 35.3" (120.2 x 89.6 cm) at 10mm
2.3 x 1.7" (5.9 x 4.4 cm) at 210mm | | Filter Size | M72 P=0.75 mm | | Tripod Screw Thread | 1/4"-20 UNC | | Supply Voltage | Auto Iris, Focus & Zoom: 6 to 12 VDC | | Current | Auto Iris, Focus & Zoom: 40 mA or less | | Response Time | Auto Iris: Approximately 4 to 8 sec
Focus: Approximately 8 to 16 sec
Zoom: Approximately 7.5 to 15 sec | | Light Weighting Method | Adjustable between average to peak (to be set at average at factory) | | Input Signal | Video signal | | Accuracy | Iris Accuracy: ±15% at video signal level | | Sensitivity Adjustment | 0.4 to 1 V p-p (video signal) | | Input Impedance | High impedance | | Preset Potentiometer | 10 kOhms VR | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 3.3 x 3.7 x 6.7" / 84 x 94.5 x 169 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 8.8 x 7.1 x 5.4" |
