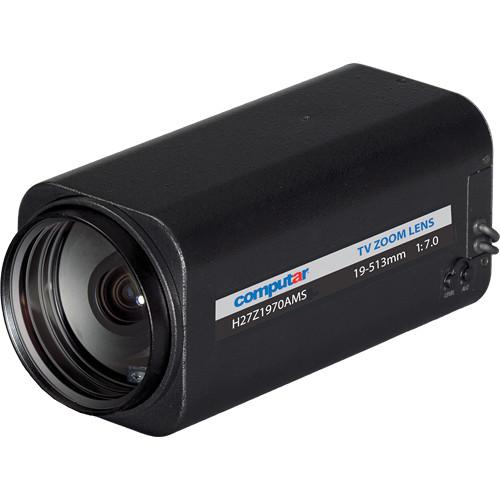

User Manual for computar H27Z1970AMS 1 2" Video Auto-Iris Lens Click to enlarge the picture
Contents of the user manual for the computar H27Z1970AMS 1 2" Video Auto-Iris
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar H27Z1970AMS 1 2" Video Auto-Iris contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar H27Z1970AMS 1/2" Video Auto-Iris Lens (19 to 513mm) provides remote control of focal length, iris, and focus through the use of a lens controller for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance like parking lots, highways, etc. In the Box computar H27Z1970AMS 1/2" Video Auto-Iris Lens (19 to 513mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar H27Z1970AMS 1 2" Video Auto-Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar H27Z1970AMS Specs | Focal Length | 19 to 513 mm | | Aperture Ratio | 1:7.0 (maximum) | | Image Format | 6.4 x 4.8 mm (Ø8 mm) | | Operation Range | Iris: F7.0 to F2000 (W / ND filter)
Focus: 4.92' to infinity (1.5 m to infinity)
Zoom: 0.74 to 20.19" (19 to 513 mm) | | Control | Iris: Video auto-iris
Focus / Zoom: Motorized | | Angle of View | 22.85 to 0.89˚ (D), 18.7 to 0.71° (H), 14.17 to 0.53° (V) | | Supply Voltage | Iris / Focus / Zoom: 6 to 12 VDC | | Current | Iris / Focus / Zoom: 40 mA or less | | Response Time | Iris: 3 to 8 sec approximately
Focus: 4 to 8 sec approximately
Zoom: 3.5 to 7 sec approximately | | Light Weighting Method | Adjustable between average and peak (to be set at Average at factory) | | Input Signal | Video signal (V. or V.S.) | | Iris | ±15% accurate at video signal level | | Sensitivity Adjustment | 0.4 to 1.0 Vpp (video signal) | | Input Impedance | High impedance | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: Ø70.3 mm
Rear: Ø13.6 mm | | Back Focal Length | 14.1 mm | | Flange Back Length | 0.69" (17.53 mm) | | Mount | C-mount | | Filter Size | M77 P = 0.75 mm | | Screw | Tripod: 1/4-20UNC | | Object Dimensions at M.O.D. | At 19 mm: 18.46 x 13.85" (469 x 352 mm)
At 513 mm: 65.55 x 4.92" (1665 x 125 mm) | | Dimensions (W x H x D) | 3.46 x 3.60 x 8.61" (88 x 91.5 x 218.7 mm) | | Weight | 67.90 oz (1925 g) | | | | Package Weight | 4.24 lb | | Box Dimensions (LxWxH) | 8.61 x 3.6 x 3.46" |
