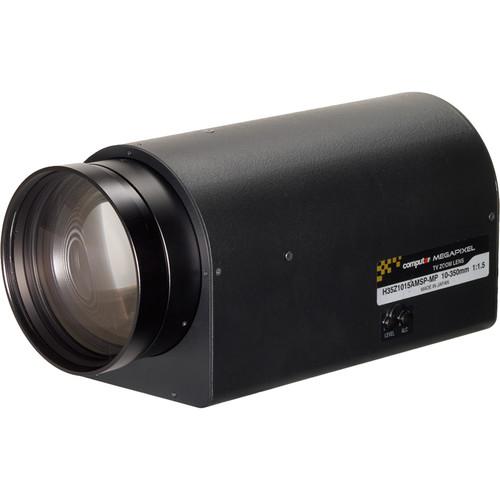

User Manual for computar H35Z1015AMS-MP Series 1 2" 2MP C-Mount 10-350mm 35x Video Auto-Iris Motorized Zoom Lens with Spot Filter Click to enlarge the picture
Contents of the user manual for the computar H35Z1015AMS-MP Series 1 2" 2MP
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar H35Z1015AMS-MP Series 1 2" 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar H16Z7516AMS-MP Series 10-350mm Lens is a 35x motorized zoom lens designed for C-mount 2MP cameras with 1/2" format sensors. It features an auto iris for use with video-controlled cameras. It also features a built-in spot filter (a neutral density filter) that attenuates the amount of light transmission from bright objects. In the Box computar H35Z1015AMS-MP Series 1/2" 2MP C-Mount 10-350mm 35x Video Auto-Iris Motorized Zoom Lens with Spot Filter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar H35Z1015AMS-MP Series 1 2" 2MP C-Mount 10-350mm 35x Video Auto-Iris Motorized Zoom Lens with Spot Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar H35Z1015AMS-MP Specs | Imager Size | 1/2" | | Mount Type | C-mount | | Focal Length | 10 to 350mm | | Aperture | f/1.5 to 4.4
f/1.5 to 1000 (with Spot Filter) | | Effective Aperture | Front: φ80.1 mm
Rear: φ17.3 mm | | Image Format | 6.4 x 4.8 mm (φ8 mm) | | Iris Operation | Video auto iris | | Focus Operation | Motorized | | Zoom Operation | Motorized (35x) | | Focal Range | 2.5 m to infinity | | Angle of View | 1/2" Type:
43.6 to 1.3°
35.3 to 1.1°
26.7 to 0.8°
1/3" Type:
32.9 to 1.0°
26.7 to 0.8°
20.1 to 0.6°
1/4" Type:
24.7 to 0.7°
20.1 to 0.4°
15.1 to 0.4° | | Minimum Object Distance | 8.2' / 2.5 m | | Back Focal Length | 14.48 mm | | Flange Back Length | 17.526 mm | | Object Dimensions at M.O.D. | 44.1 x 58.9" / 112.1 x 149.6 cm at 10mm
1.3 x 1.7" / 3.26 x 4.34 cm at 350mm | | Filter Size | M86 P=1 mm | | Tripod Screw Thread | 1/4"-20 UNC | | Supply Voltage | Iris, Focus, & Zoom: 6 to 12 VDC | | Current | Iris, Focus, & Zoom: 40 mA or less | | Response Time | Iris: Approximately 4 to 8 sec
Focus & Zoom: Approximately 9 sec (with 10 V input) | | Light Weighting Method | Adjustable between average to peak | | Input Signal | Video signal | | Accuracy | Iris Accuracy: ±15% at video signal level | | Sensitivity Adjustment | 0.4 to 1 V p-p (video signal) | | Input Impedance | High impedance | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 3.8 x 4.3 x 9.4" / 97.0 x 109.0 x 238.5 mm | | Weight | 4.03 lb / 1.83 kg |
