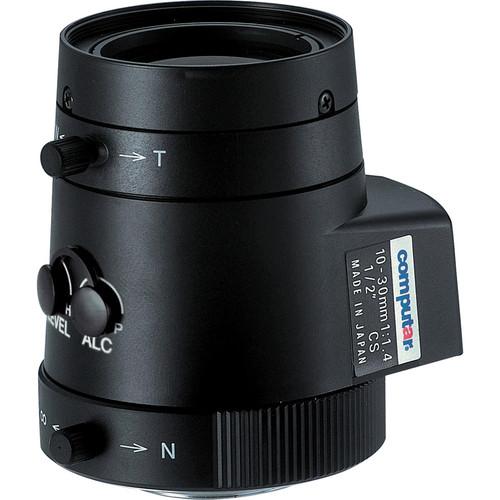

Product description The computar HG3Z1014AFCS 1/2” Varifocal Telephoto Lens with Amplifier (10-30mm)
helps in closer examination of the activities in your premises. It is designed for use with CS-mount day/night cameras with 1/2” format sensors. This lens facilitates easy focal length adjustments without having to move the camera from its installation point.
With an aperture of f/1.4 to 360C, the lens is suitable for surveillance in low-light as well as bright light conditions. In addition, this IR-corrected day/night lens captures clear images, eliminating focus shift and infrared bleed - Designed for CS-mount cameras with 1/2" sensors
- 10-30mm focal length to clearly capture scenes requiring different focus settings
- Easy focal length adjustments
- Aperture of f/1.4 to 360C ensures enhanced performance in low-light as well as bright light conditions
- Auto Iris mechanism ensures that the camera captures detailed images even in areas with varying light intensity
- Video driven lens with amplifier circuitry for converting the video signal from the camera into iris motor control
- Infrared correction eliminates focus shift and IR bleed, making the lens suitable for 24-hour surveillance operations
- Aspherical lens surface ensures that the images have corner-to-corner sharpness for all aperture settings
In the Box computar HG3Z1014AFCS 1/2" Varifocal Telephoto Lens with Amplifier (10-30mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar HG3Z1014AFCS 1 2" Varifocal Telephoto Lens with Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar HG3Z1014AFCS Specs | Focal Length | 10-30 mm | | Aperture Ratio | 1:1.4 (maximum) | | Image Format | 6.4 x 4.8 mm (ø8 mm) | | Operation Range | Iris: F1.4 to F360C
Focus: 0.02' to infinity (0.6 m to infinity)
Zoom: 0.39 to 1.18" (10 to 30 mm) | | Control | Iris: Video Auto Iris
Focus / Zoom: Manual | | Angle of View | 1/2-type: 44.8 to 15.6° (D), 35.8 to 12.5° (H), 26.8 to 9.4° (V)
| | Supply Voltage | 8.5 to 16 VDC | | Current | Less than 40 mA | | Response Time | 2 sec approximately | | Light Weighting Method | Adjustable between average - peak (to be set at average at factory) | | Input Signal | Video signal (V. or V.S.) | | Iris | 15% accurate at video signal level | | Sensitivity Adjustment | 0.5 to 1.0 Vpp (video signal) | | Input Impedance | High impedance | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Effective Lens Aperture | Front: ø26.6 mm
Rear: ø9.0 mm | | Back Focal Length | Tele: 0.38" (9.8 mm)
Wide: 0.43" (11 mm) | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS-mount | | Filter Size | M37.5 P= 0.01" (0.5 mm) | | Certifications | CE, RoHS | | Object Dimensions at M.O.D. | At 10 mm: 15.27 x 11.25" (388 x 286 mm)
At 30 mm: 5.15 x 3.89" (131 x 99 mm) | | Dimensions | ø1.64 x 2.26 x 2.27" (ø41.7 x 57.5 x 57.7 mm) | | Weight | 4.40 oz (125 g) | | | | Package Weight | 0.275 lb | | Box Dimensions (LxWxH) | 2.27 x 2.26 x 1.64" |
