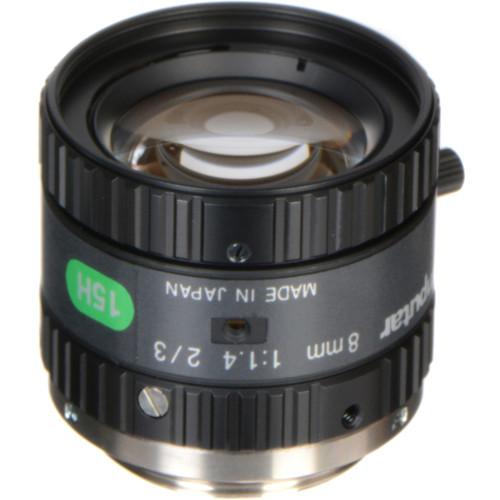

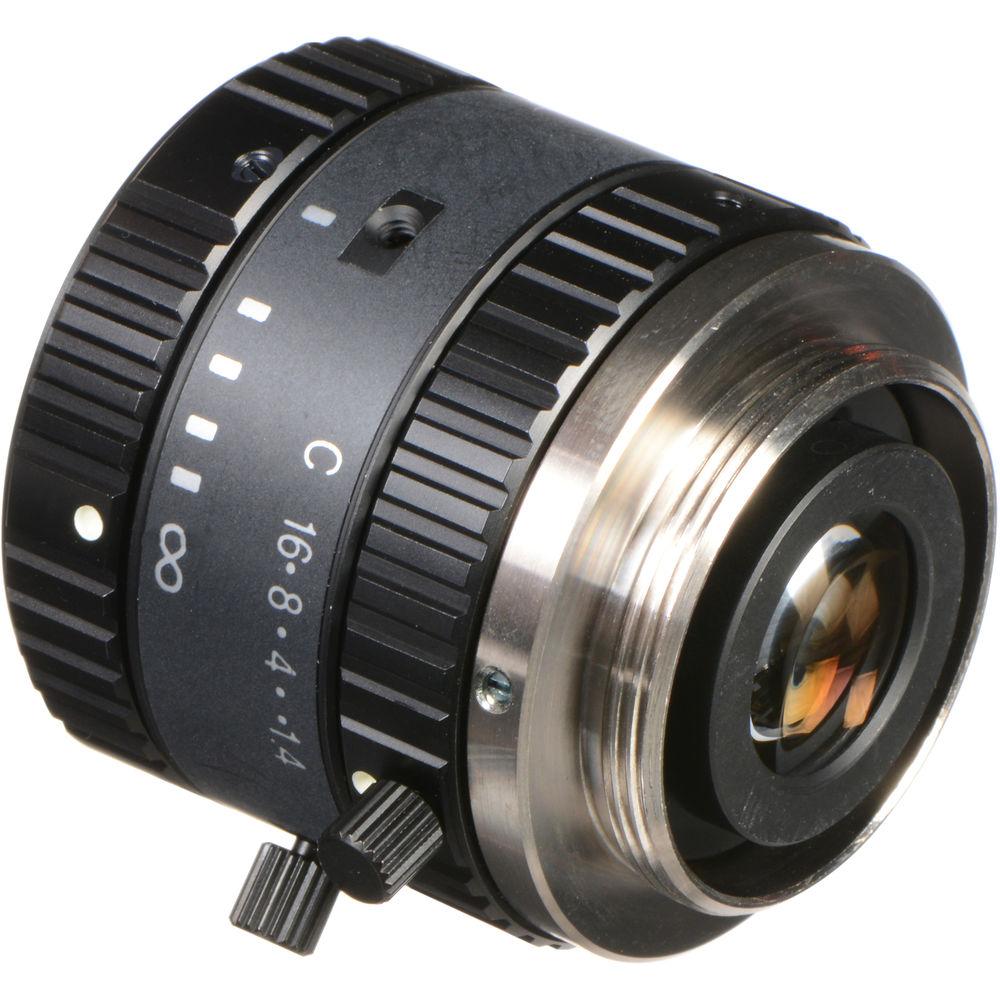

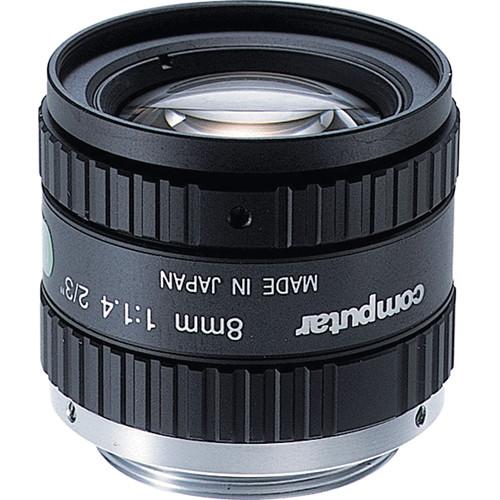

Product description The M0814-MP2 2/3" Fixed Lens from Computar is designed for monitoring factory automation and image processing units. It features an 8mm focal length, and is compatible with C-mount megapixel cameras that have 2/3” format sensors. The lens facilitates easy focal length adjustments without having to move the camera from its installation point. Moreover, with an aperture of f/1.4 to 16C, the lens is suitable for surveillance in low light as well as brightly lit conditions. There is a manual iris and focus with locking set screws for holding them in place. - Designed for C-mount megapixel cameras with 2/3" sensors
- Aperture of f/1.4 to 16C provides enhanced performance in low light as well as brightly lit conditions
- Manual iris for correct exposures
- Low distortion and maximum light intensity, even in peripheral areas
- Locking set screws for focus and iris
- Compact design at 1.32 x 1.11" (Ø33.5 x 28.2mm)
- Captures images at the full resolution of megapixel cameras
- High-contrast and sharp picture in all areas of the screen
UPC: 781904082124 In the Box computar M0814-MP2 2/3" Fixed Lens (8mm) Limited 3-Year Warranty Brochure PDF 604.7kbuytcaytytwyxcxcxwddwytzbsusqfcyawyz Table of Contents
|
Upload User Manual
Have you got an user manual for the computar M0814-MP2 2 3" Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar M0814-MP2 Specs | Lens Mount | C | | Sensor Compatibility | 2/3" (2 MP) | | Focal Length | 8mm | | Back Focal Length | 13.1mm | | Aperture | f/1.4 to 16 | | Angle of View | 2/3" Sensor
Diagonal: 67.1°
Horizontal: 56.3°
Vertical: 43.7° | | Minimum Focus Distance | 0.32' / 0.1 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Distortion | 2/3": -0.1% | | Effective Diameter | Front: 0.846456692913386" / 21.5 mm
Rear: 0.47244094488189" / 12 mm | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Flange Back Length | 0.69" / 17.526 mm | | Filter Thread | M30.5 x 0.5 mm | | Dimensions (D x L) | 1.3 x 1.1" / 33.5 x 28.2 mm | | Weight | 2.2 oz / 62.6 g | | | | Package Weight | 0.175 lb | | Box Dimensions (LxWxH) | 2.8 x 2.05 x 2.0" |
