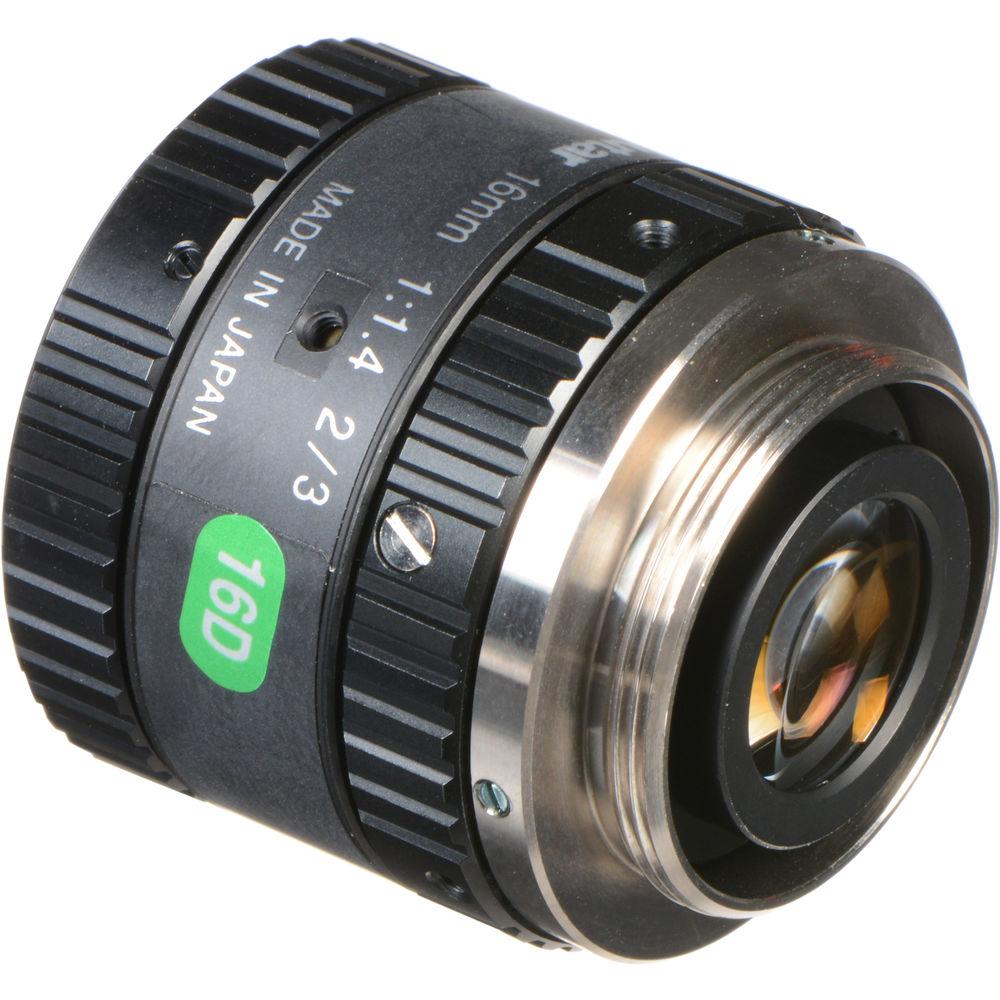

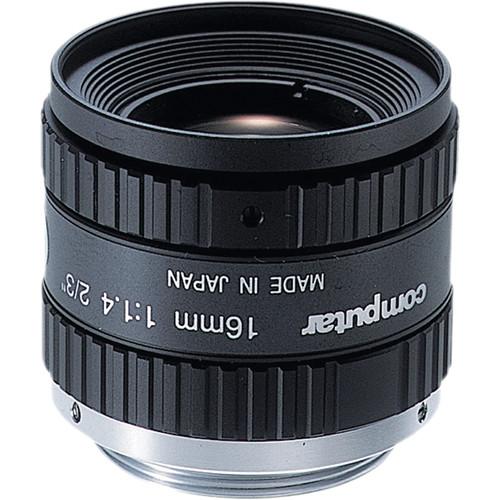

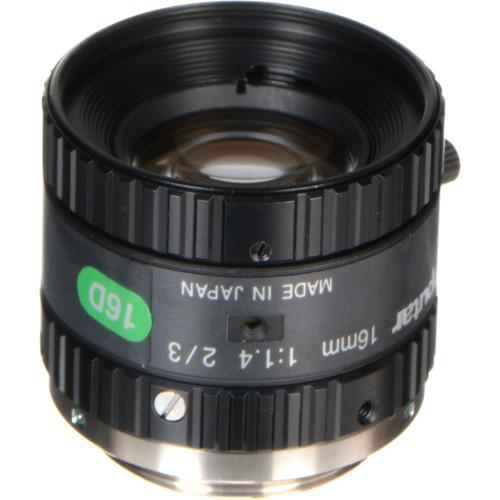

Product description The M1614-MP2 2/3" Fixed Lens from Computar is designed for monitoring factory automation and image processing units. It features a 16mm focal length, and is compatible with C-mount megapixel cameras that have 2/3” format sensors. The lens facilitates easy focal length adjustments without having to move the camera from its installation point. Moreover, with an aperture of f/1.4 to 16C, the lens is suitable for surveillance in low light as well as brightly lit conditions. There is a manual iris and focus with locking set screws for holding them in place. - Designed for C-mount megapixel cameras with 2/3" sensors
- Aperture of f/1.4 to 16C provides enhanced performance in low light as well as brightly lit conditions
- Manual iris for correct exposures
- Low distortion and maximum light intensity, even in peripheral areas
- Locking set screws for focus and iris
- Compact design at 1.32 x 1.11" (Ø33.5 x 28.2mm)
- Captures images at the full resolution of megapixel cameras
- High-contrast and sharp picture in all areas of the screen
UPC: 781904082100 In the Box computar M1614-MP2 2/3" Fixed Lens (16mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar M1614-MP2 2 3" Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar M1614-MP2 Specs | Focal Length | 16mm | | Aperture Ratio | 1:1.4 (maximum) | | Image Format | 8.8 x 6.6 mm (Ø11 mm) | | Operation Range | Iris: f/1.4 to 16C
Focus: 0.98' / 0.3 m to infinity | | Control | Iris: Manual
Focus: Manual | | Angle of View | 2/3-Type: 38° (D), 30.8° (H), 23.4° (V)
| | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: Ø18.5 mm
Rear: Ø13.2 mm | | Distortion | 2/3-Type: -0.1% (y = 5.5)
| | Back Focal Length | 0.51" (13.1mm) | | Flange Back Length | 0.69" (17.526 mm) | | Mount | C-mount | | Filter Size | M30.5 P = 0.5 mm | | Object Dimensions at M.O.D. | 2/3-Type: 6.8 x 5.1" (17.2 x 12.9 cm)
| | Dimensions (Ø x L) | Ø1.3 x 1.1" (Ø33.5 x 28.2 mm) | | Weight | 2.1 oz (60.0 g) | | | | Package Weight | 0.17 lb | | Box Dimensions (LxWxH) | 2.8 x 2.05 x 2.05" |
