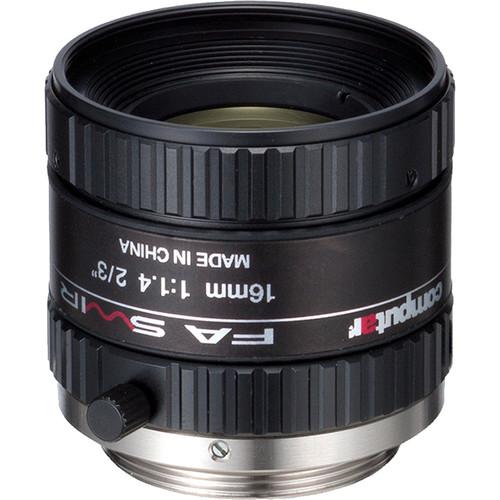

Product description Designed for SWIR (short wave infrared) machine vision applications, the Computar M1614-SW 16mm, f/1.4, SWIR Lens is a fast 16mm fixed focal length C-Mount lens that projects a 12.3mm image circle onto your camera's sensor. The lens features a manual iris range of f/1.4 to 16, and is a manual focus lens with a range from 1' to infinity. Both the iris and focus rings incorporate independent locking knobs. - Designed as a lens for SWIR machine vision, it features optics with coatings optimized for wavelengths in the 800 to 1700 nanometer range
- The lens features a C-Mount and is designed for the 12.3mm image circle format
- The lens features manual iris control with a range of f/1.4 to f/16
- The lens can focus from 1' to infinity, and it is manual focus only
- The iris and focus rings incorporate independent locking knobs
UPC: 781904052134 In the Box computar M1614-SW 16mm, f/1.4, SWIR Lens for Machine Vision (C-Mount) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar M1614-SW 16mm, f 1.4, SWIR Lens for Machine Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar M1614-SW Specs | Focal Length | 16mm | | Maximum Aperture Ratio | f/1.4 | | Image Format | 12.3 mm | | Operation Range | Iris: f/1.4 to f/16 C
Focus: 1' / 0.33 m to infinity | | Control | Iris/Focus: Manual | | Filter Size | M30.5 P = 0.5 mm | | Object Dimensions at M.O.D. | 2/3" Type: 6.7 x 5.0" / 17.0 x 12.7 cm
1/2" Type: 4.8 x 3.6" / 12.3 x 9.2 cm | | Angle of View (D x H x V) | 2/3" Type: 37.7 x 20.6 x 23.2°
1/2" Type: 27.9 x 22.5 x 16.9°
InGaAs Detector
640 x 512 (Pixel Pitch 15 μm): 41.7 x 33.2 x 26.8°
320 x 256 (Pixel Pitch 20 μm): 28.6 x 22.5 x 18.0°
320 x 256 (Pixel Pitch 25 μm): 35.3 x 27.9 x 22.5° | | Effective Lens Aperture | Front φ: 0.7" / 18.5 mm
Rear φ: 0.5" / 13.2 mm | | Back Focal Length | 0.524" / 13.3mm | | Flange Back Length | 0.690" / 17.526 mm | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | φ x L: 1.3 x 1.1" / 33.5 x 28.2 mm | | Weight | 2.1 oz / 60.0 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 2.7 x 2.1 x 2.0" |
