User Manual for computar M3514-SW 35mm, f 1.4, SWIR Lens for Machine Vision Click to enlarge the picture
Contents of the user manual for the computar M3514-SW 35mm, f 1.4, SWIR
- Product category: Industrial Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Industrial Lenses
|
User manual for the computar M3514-SW 35mm, f 1.4, SWIR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|

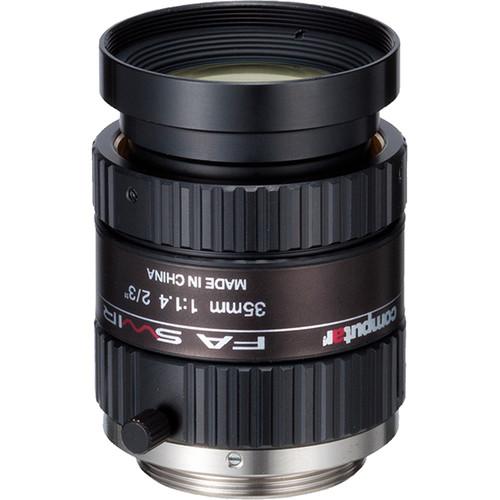

Product description Designed for SWIR (short wave infrared) machine vision applications, the Computar M3514-SWIR 35mm, f/1.4, SWIR Lens is a fast 35mm focal length C-mount lens that projects a 12.3mm image circle onto your camera's sensor. The lens features a manual iris range of f/1.4 to 16, and it is a manual focus lens with a range from 1' to infinity. Both the iris and focus rings incorporate independent locking knobs. - Designed as a lens for SWIR machine vision, it features optics with coatings optimized for wavelengths in the 800 to 1700 nanometer range
- The lens features a c-mount and is designed for the 12.3mm image circle format
- The lens features manual iris control with a range of f/1.4 to f/16
- The lens can focus from 1' to infinity, and it is manual focus only
- The iris and focus rings incorporate independent locking knobs
UPC: 781904052158 In the Box computar M3514-SW 35mm, f/1.4, SWIR Lens for Machine Vision (C-Mount) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar M3514-SW 35mm, f 1.4, SWIR Lens for Machine Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar M3514-SW Specs | Focal Length | 35 mm | | Maximum Aperture Ratio | f/1.4 | | Image Format | 12.3mm | | Operation Range | Iris: F1.4 to F16C Focus: 1' / 0.33 m to infinity | | Control | Iris/Focus: Manual | | Filter Size | M30.5 P=0.5mm | | Object Dimensions at M.O.D. | 2/3": 3.1 x 2.4" / 8.0 x 6.0 cm
1/2": 2.3 x 1.7" / 5.8 x 4.4 cm | | Angle of View | 2/3": 18.4 x 14.7 x 11.1° (D x H x V)
1/2": 13.4 x 10.7 x 8.1° (D x H x V)
InGaAs Detector
640 x 512 (pixel pitch 15 μm): 20.5 x 16.0 x 12.9° (D x H x V)
320 x 256 (pixel pitch 20 μm): 13.7 x 10.7 x 8.6° (D x H x V) 320 x 256 (pixel pitch 25 μm): 17.1 x 13.4 x 10.7° (D x H x V) | | Effective Lens Aperture | Front φ: 0.9" / 24 mm
Rearφ: 0.5" / 12 mm | | Back Focal Length | 0.524" / 13.3 mm | | Flange Back Length | 0.690" / 17.526 mm | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | φ x L: 1.3 x 1.5" / 33.5 x 38.2 mm | | Weight | 3.1 oz / 87.0 g | | | | Package Weight | 0.23 lb | | Box Dimensions (LxWxH) | 2.8 x 2.2 x 1.95" |
